OTHER FUNCTIONS
12
■ Initial set mode
The initial set mode is accessed at power ON and al-
lows you to set seldom-changed settings. In this way,
you can “customize” transceiver operations to suit your
preference and operating style.

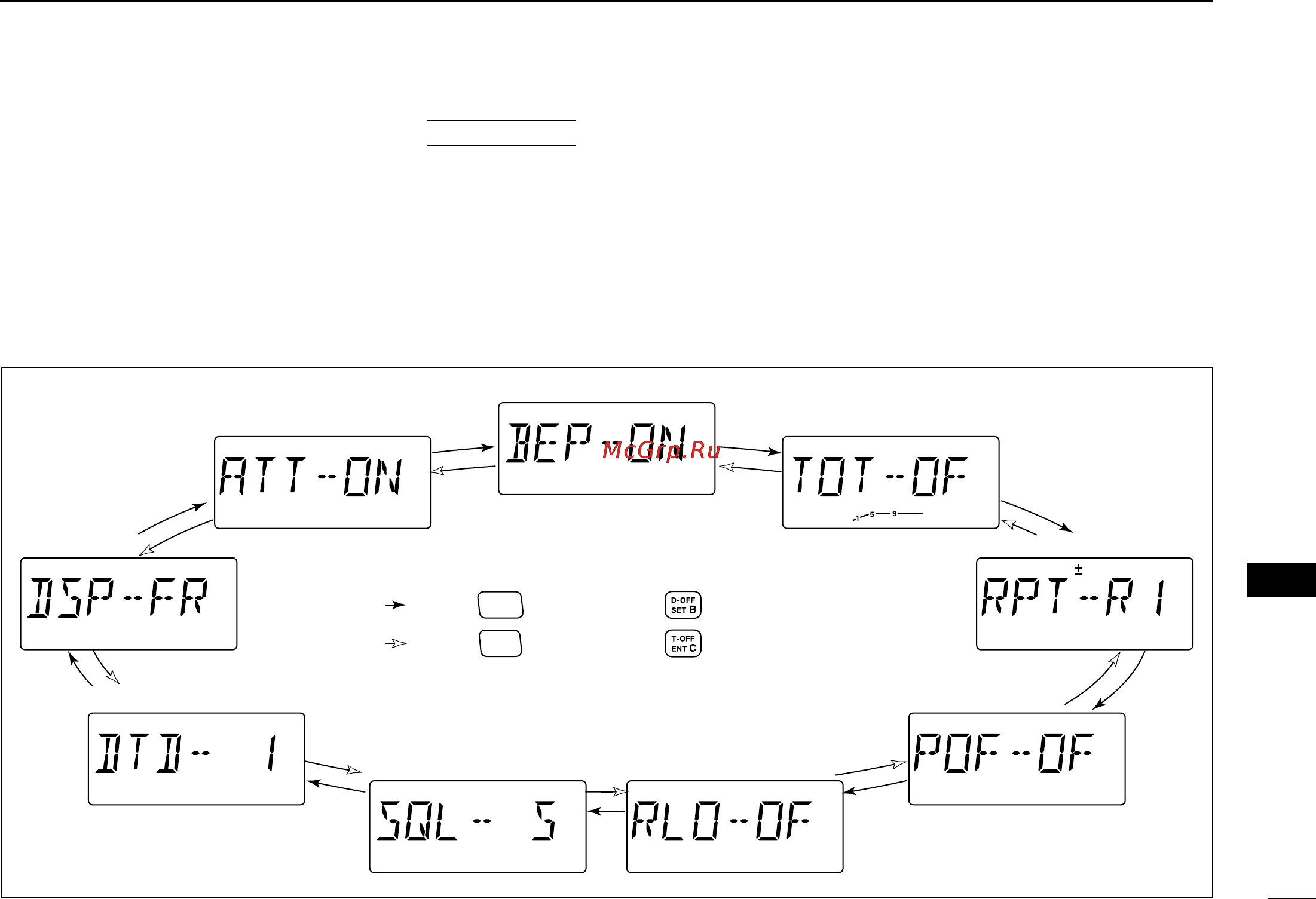

• Initial set mode items
DD
Entering initial set mode
q While pushing [SET(LOCK)], push [PWR] for 1 sec. to
enter initial set mode.
w Push [SET(LOCK)] or [MW(S.MW)] to select the desired
item.
e Rotate the tuning dial to select the condition or value.
r Push [PWR] to exit initial set mode.
AT
POWER ON
: Push
SET
LOCK
(front panel); or (microphone)
: Push
*Available in USA and CSA versions only.
S.MW
MW
(front panel); or (microphone)
• Key-touch beep
• Time-out timer
• Auto repeater*
• Auto power OFF
• Repeater lockout
• Squelch delay
• DTMF speed
• Display type
• Squelch attenuator
