11 PAGER/CODE SQUELCH
■ Pager operation
D Calling a specific station
q Program the desired code channel in advance (p. 53).
w Set the operating frequency.
•
Set the [VOL] and [SQL] to the desired level as in normal opera-
tion.
e Push [BANK(OPT)] for 1 sec. to select pager mode.

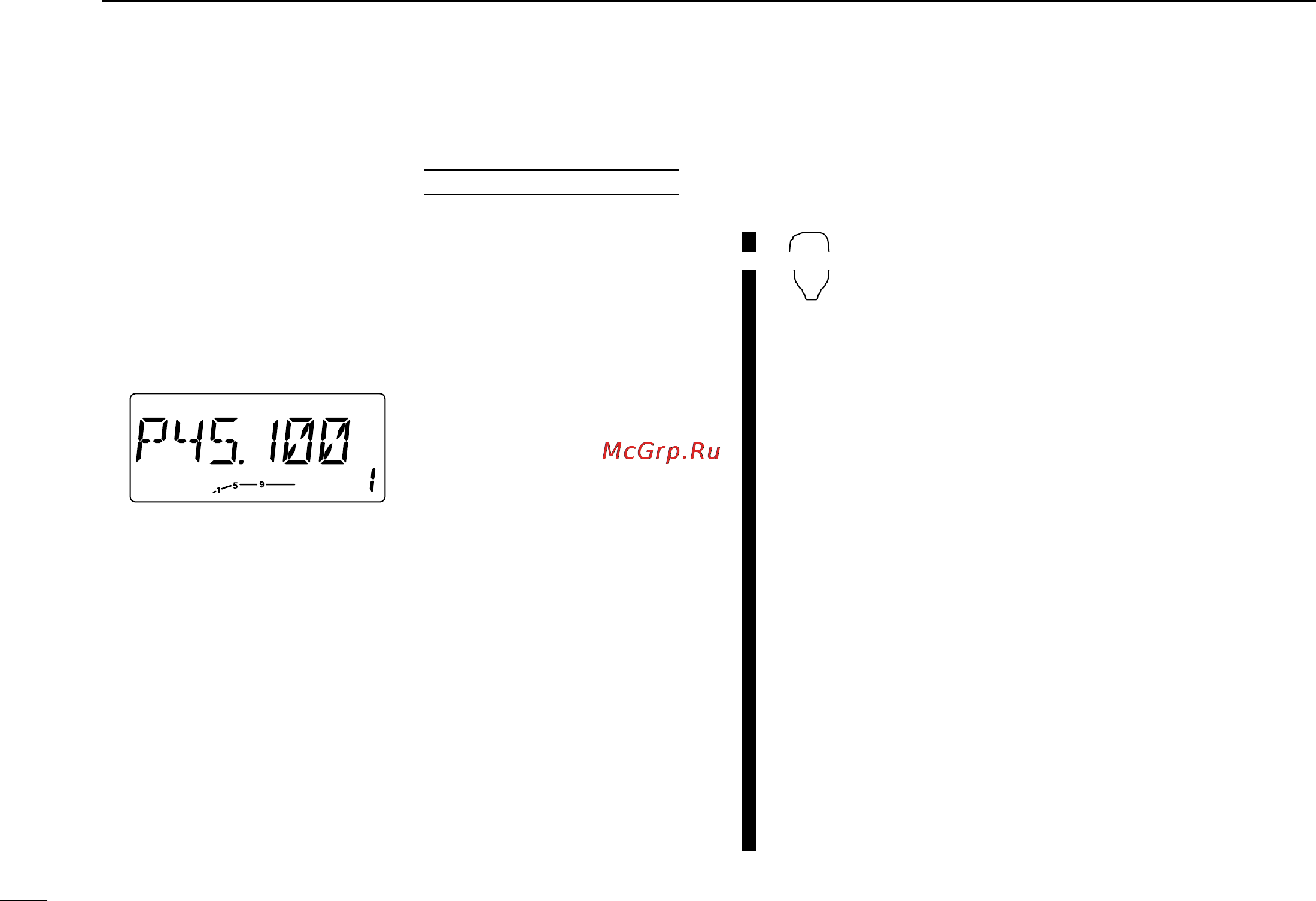

• 100 MHz digit shows “P.”
r Select the desired transmit code channel:
➥ Push [SET(LOCK)].
➥ Rotate the tuning dial to select the code channel.
➥
Push [TONE(T-SCAN)] to return to the previous condition.
t Push [PTT] to transmit the pager code.
• Transmits your ID and the selected transmit codes automatically.
y Wait for an answer back.
• When the transceiver receives an answer back code, the func-
tion display shows the other member’s ID or group code.
u After confirming a connection, push [BANK(OPT)] for
1 sec. to select the code squelch operation, or repeat the
previous key operation again to select non-selective calling
system.
i Communicate with the other party as normal: push [PTT]
to transmit; release to receive.
z Program the desired code channel in ad-
vance (p. 54).
x Set the operating frequency.
c Push [BANK/OPTION] for 1 sec. to select
pager mode.
• 100 MHz digit shows “P.”
v Select the desired transmit code channel:
➥ Push [SET(LOCK)].
➥ Push [Y]/[Z].
➥ Push [
CLR
A(MW)] to return to the previ-
ous condition.
b Push [PTT] to transmit the pager code.
n Wait for an answer back.
• When the transceiver receives an answer back
code, the function display shows the other
member’s ID or group code.
m After confirming a connection, push
[BANK/OPTION] for 1 sec. to select the
code squelch operation, or repeat the pre-
vious key operation again to select non-se-
lective calling system.
, Communicate with the other party as nor-
mal: push [PTT] to transmit; release to re-
ceive.
BANK/OPTION
Optional UT-108 required
