MEMORY OPERATION
4
5
■ General description
The transceiver has 207 memory channels including 6 scan
edge memory channels (3 pairs), and 1 call channel. Each of
these channels can be individually programmed with operat-
ing frequency (pgs. 9, 10), duplex direction (p. 19) and offset
(p. 21), subaudible tone encoder or tone squelch and its tone
frequency (pgs. 19, 48–50) and skip information* (p. 41).
In addition, a total of 10 memory banks, A to J, are available
for usage by group, etc.
*except for scan edge memory channels.
■ Memory channel selection

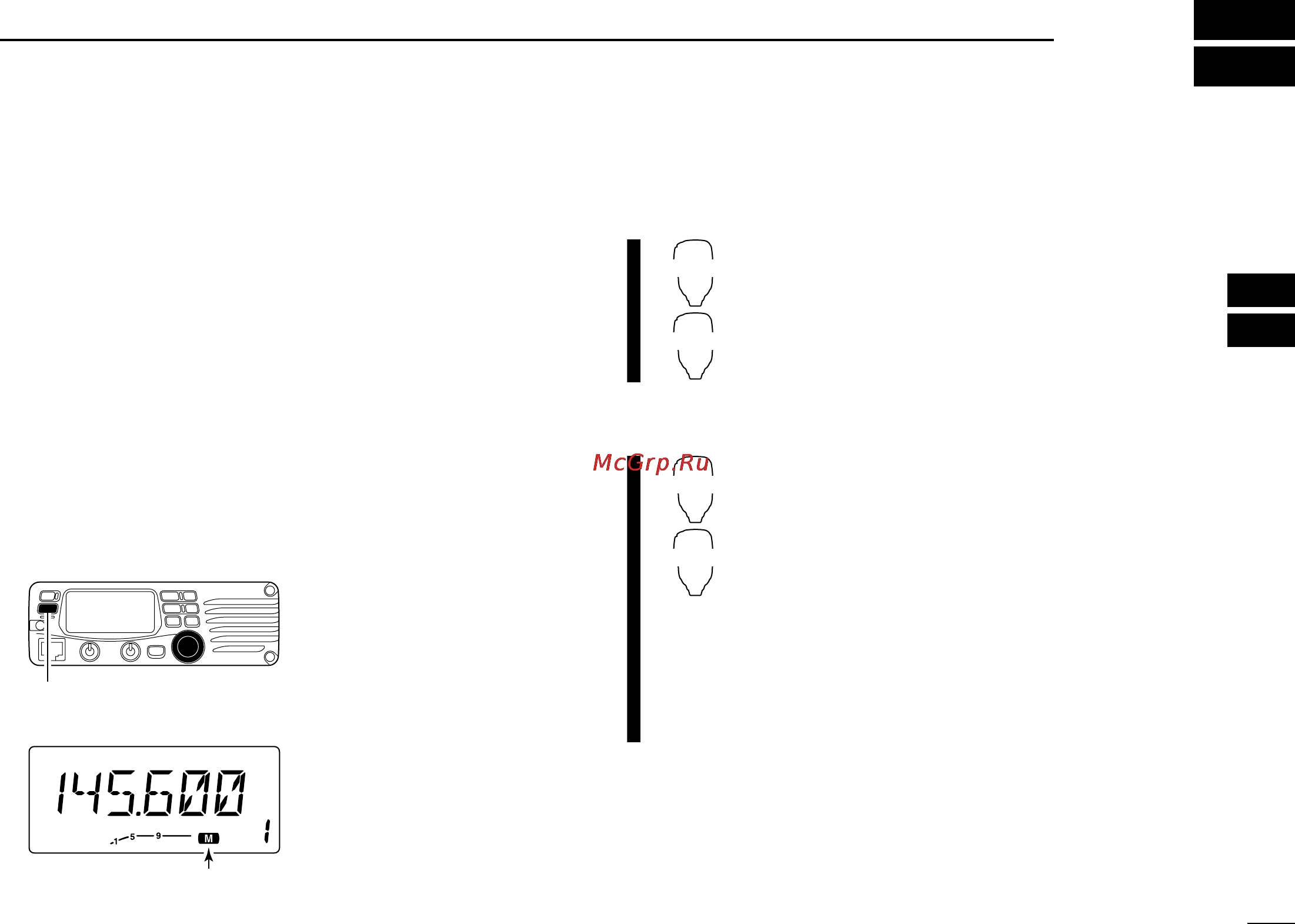

D Using the tuning dial
q Push [M/CALL(PRIO)]
once or twice to select
memory mode.
•“M” indicator appears
w
Rotate the tuning dial to
select the desired mem-
ory channel.
• Programmed memory
channels only can be se-
lected.
D Using the [Y]/[Z] keys
z Push [MR/CALL] to select memory mode.
x Push [Y] or [Z] to select and set the desired
memory channel.
• Pushing [Y]/[Z] for 1 sec. activates a scan.
•
If scan is activated, push [Y]/[Z] again or push
[
CLR
A(MW)] to stop it.
D Using the keypad
z Push [MR/CALL] to select memory mode.
x Push [
ENT
C(T-OFF)] to activate the keypad
for numeral input.
c Push 3 appropriate digit keys to input a chan-
nel number.
• When inputting non-programmed channel num-
bers, the previous memory channel appears.
• Push only 1 appropriate digit key, [
MONI
1(ANM)],
[
SCAN
2(T-SCAN)] or [
PRIO
3(PTT-M)], then push
[
MM
(TONE-1)] or [
SQL
Z #(16KEY-L)] to select scan
edge channels. “
MM
” and “#” can be used for “A”
and “b” respectively.
MR/CALL
Y/Z
MR/CALL
Y/Z
Push [M/CALL(PRIO)] to select
memory mode.
Appears
