47
9 DTMF MEMORY ENCODER
■ DTMF speed
The rate at which DTMF memories send individual DTMF
characters can be set to accommodate operating needs.
q Push [PWR] for 1 sec. to turn power OFF.
w While pushing [SET(LOCK)], push [PWR] for 1 sec. to turn
power ON and enter initial set mode.
e Push [SET(LOCK)] or [MW(S.MW)] several times until
“DTD” appears as shown above.
r Rotate the tuning dial to select the desired speed as
shown in the table below.
t Push [PWR] to exit initial set mode.
cps=characters/sec

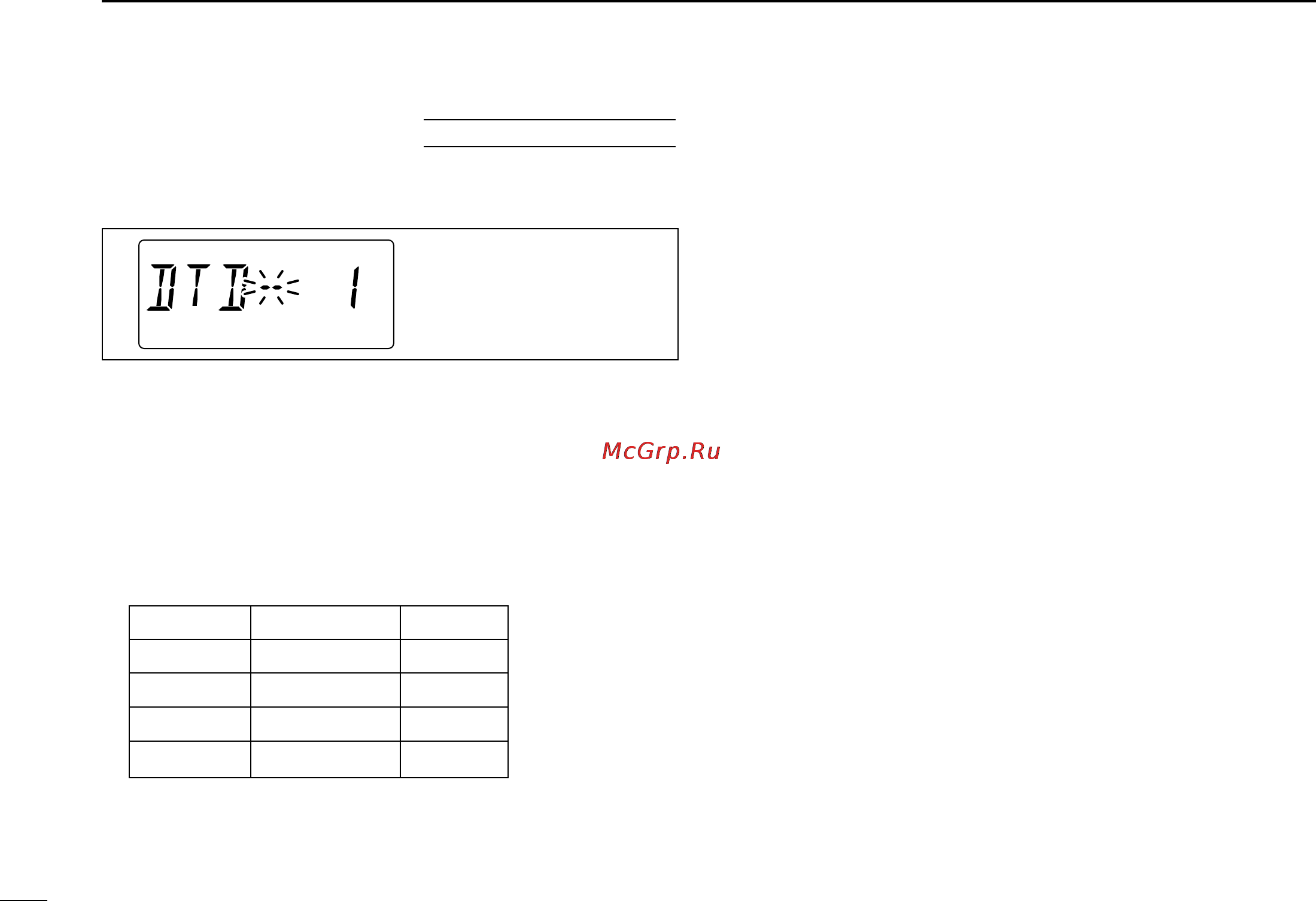

The display shows the fast-
est DTMF speed is select-
ed.
USING
INITIAL SET MODE
DISPLAY INTERVAL SPEED
DTD-- 1 100 msec. 5.0 cps
DTD-- 2 200 msec. 2.5 cps
DTD-- 3 300 msec. 1.6 cps
DTD-- 5 500 msec. 1.0 cps
