MEMORY OPERATION
5
■ Programming channel names
Each memory channel and the call channel can be pro-
grammed with an alphanumeric channel name for easy
recognition and can be indicated independently by channel.
Names can be a maximum of 6 characters— see the table
below for available characters.
q Push [M/CALL(PRIO)] to select memory mode.
w
Rotate the tuning dial to select the desired memory channel.
e Push [MONI(ANM)] for 1 sec. to select channel name in-
dication mode.
• 1 short and 1 long beep sound.
r Push [SET(LOCK)] to select the channel name program-
ming condition.
• Frequency readouts disappear.
t Rotate the tuning dial to select the desired character.
• The selected character blinks.
y Push [SET(LOCK)] or [MW(S.MW)] to move the cursor to
left or right, respectively.
u Repeat steps t and y until the desired channel names
are displayed.
i Push [V/MHz(SCAN)] to program the name and exit the
channel name programming condition.
o Push [MONI(ANM)] for 1 sec. to return to frequency indi-
cation if desired.
IMPORTANT!: Once channel name indication mode is
selected, always access the channel name programming
condition when [SET(LOCK)] is pushed.
When set mode accessing is necessary, cancel the chan-
nel name indication by pushing [MONI(ANM)] for 1 sec.,
then access to set mode.
(1)
(B)
(L)
(V)
(+)
(2)
(C)
(
M
)
(
W
)
(–)
(3)
(
D
)
(N)
(X)
(=)
(4)
(E)
(O)
(Y)
(✱)
(5)
(F)
(P)
(Z)
(/)
(6)
(G)
(
Q
)
(space)
(7)
(()
(
H
)
(
R
)
())
(8)
(I)
(S)
(|)
(9)
(J)
(T)
(0)
(A)
(
K
)
(U)

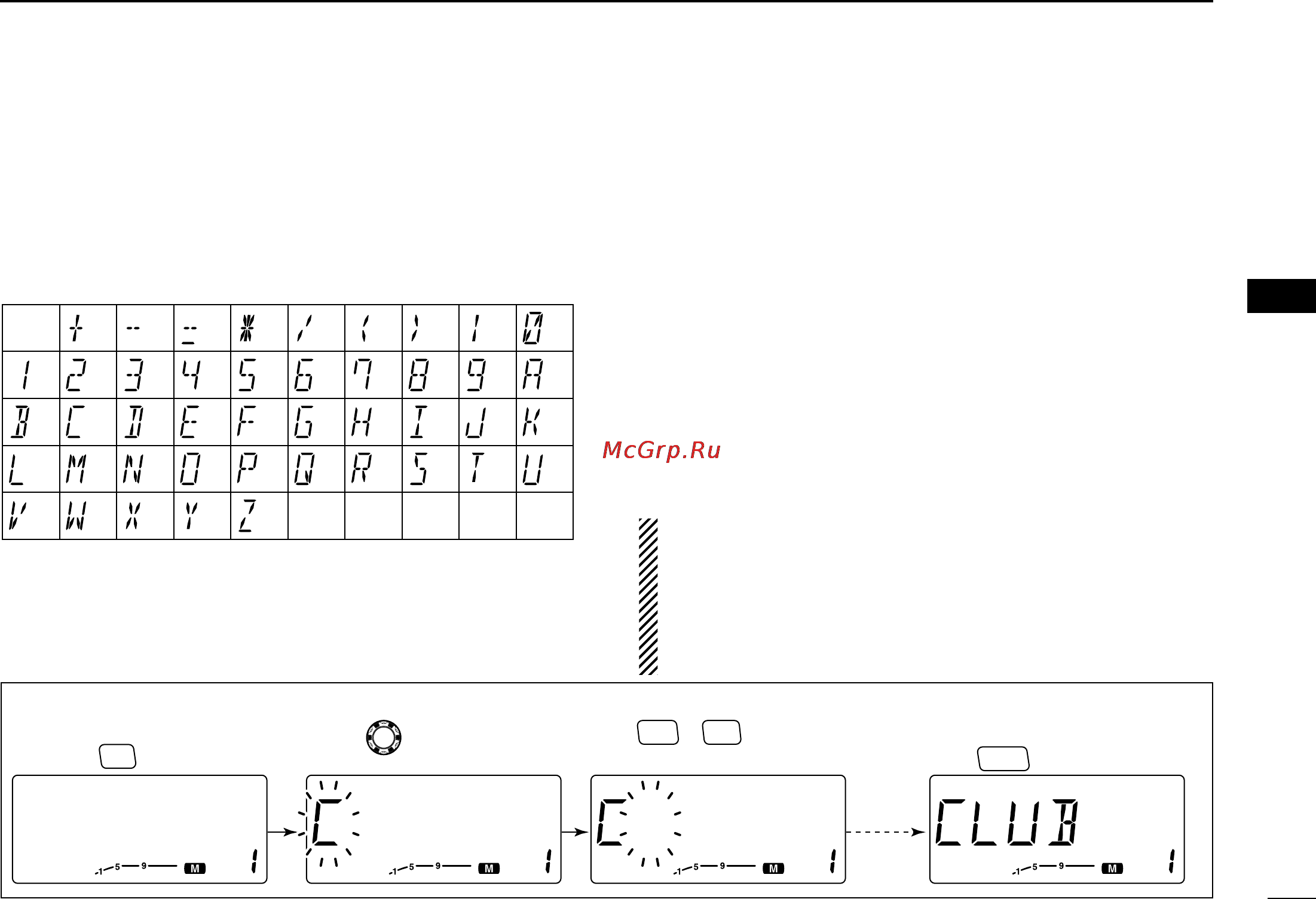

[EXAMPLE]: Programming “CLUB” into memory channel 1.
Push .
V/MHz
SCAN
Select memory channel 1,
then push for 1 sec.
MONI
ANM
Push or to move
the cursor.
SET
LOCK
S.MW
MW
Rotate to select the
character.
Repeat
previous
steps.
