OTHER FUNCTIONS
12
DD
Auto power OFF
The transceiver can be set to automatically turn OFF after a
specified period with a beep when no key operations are per-
formed.
30 min., 1 hour, 2 hours and OFF (default) can be specified.
The specified period is retained even when the transceiver is
turned OFF by the auto power OFF function. To cancel the
function, select “OF” in this set mode.
DD
Repeater lockout
Selects lockout type from repeater, busy and OFF.
• OF : No lockout is activated. (default)
• RP : The repeater lockout is turned ON.
• BU : The busy lockout is turned ON.
DD
Squelch delay
Selects squelch delay from short and long to prevent re-
peated opening and closing of the squelch during reception
of the same signal.
• S : Short squelch delay. (default)
• L : Long squelch delay
DD
DTMF speed
The rate at which DTMF memories send individual DTMF
characters can be set to accommodate operating needs.
• 1 : 100 msec. interval; 5.0 cps speed (default)
• 2 : 200 msec. interval; 2.5 cps speed
• 3 : 300 msec. interval; 1.6 cps speed
• 5 : 500 msec. interval; 1.0 cps speed

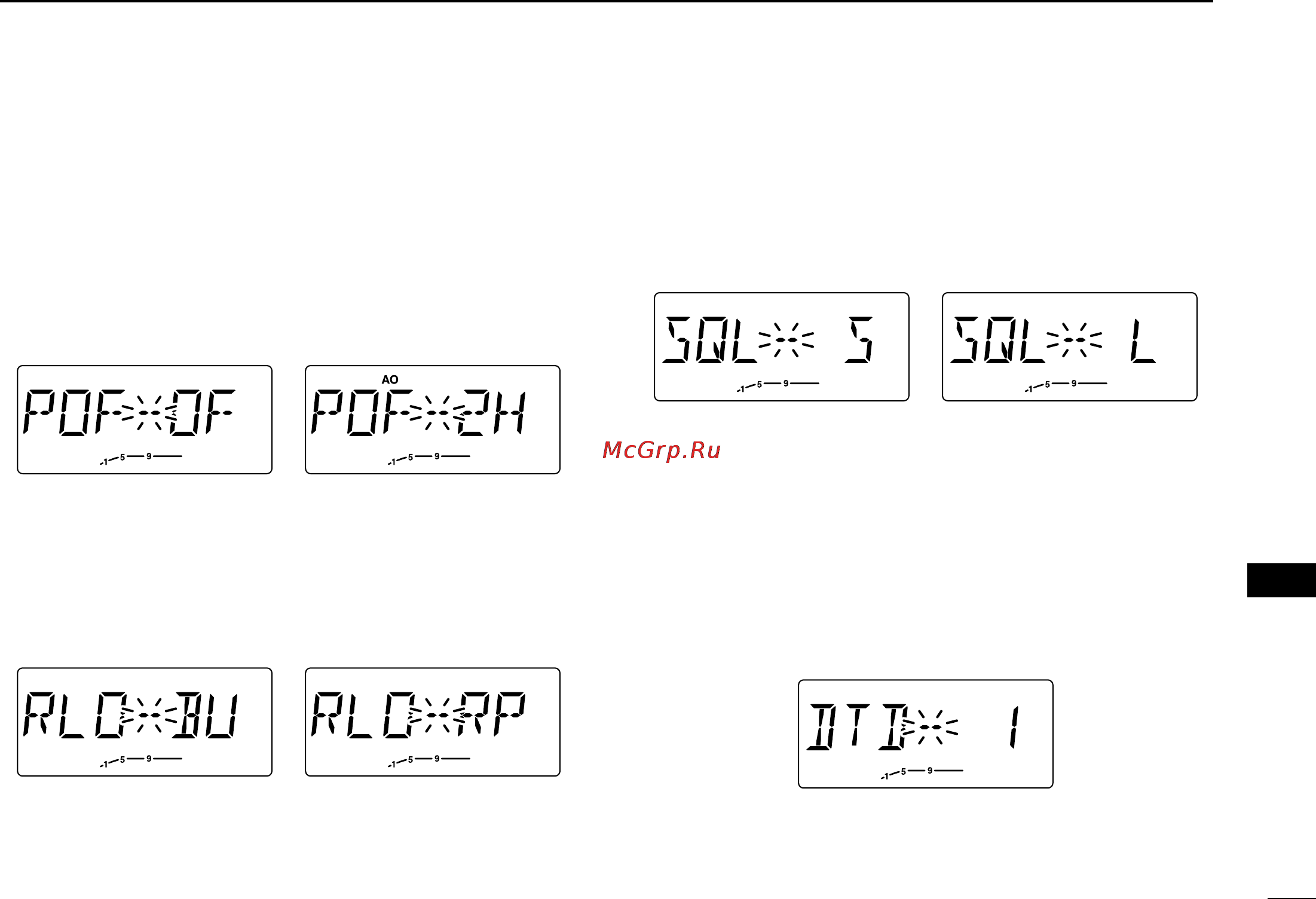

Short squelch delay setting Long squelch delay setting
Busy lock-out setting Repeater lock-out setting
