CALL CHANNEL OPERATION
6
■ Programming a call channel
Operating frequency, duplex information, subaudible tone in-
formation (tone encoder or tone squelch ON/OFF and its fre-
quency) and alphanumeric channel names can also be
programmed into the call channel.
q Set the desired frequency in VFO mode.
➥ Push [V/MHz(SCAN)] to select VFO mode.
➥ Set the frequency using the tuning dial.
➥ Set other data as desired.
w Push [MW(S.MW)] momentarily.
e Rotate the tuning dial to select the call channel
•“M” indicator and “C” blink.
r Push [MW(S.MW)] for 1 sec. to program.
• 3 beeps sound and the unit returns to VFO mode automatically.
z Set the desired frequency in VFO mode.
➥ Push [VFO/LOCK] to select VFO mode.
➥ Set the frequency.
➥ Set other data as desired.
x
Push [FUNC], then [
CLR
A(MW)] momentarily.
c Select the call channel via [Y] or [Z] .
v Push [FUNC] then [
CLR
A(MW)] for 1 sec. to
program.
• 3 beeps sound and the unit returns to VFO mode
automatically.
MR/CALL
MW
[Y]/[Z]

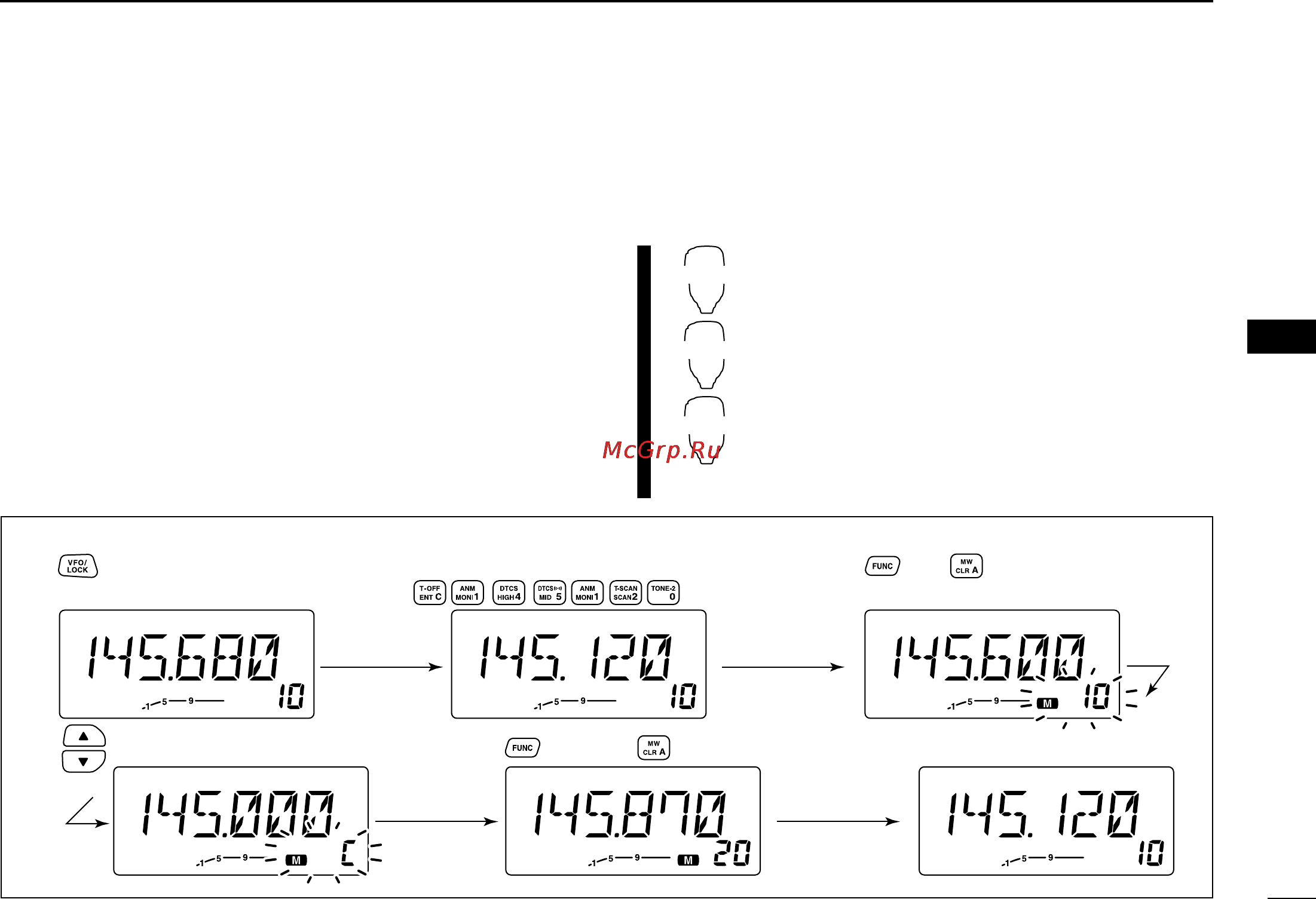

[EXAMPLE]: Programming 145.120 MHz into the call channel via the microphone.
Set the frequency.
Push to select VFO mode.
Push , then .
Push , then push for 1 sec.
➠
Push until large “C” appears.
Beep
Beep
Beep
“
“
“
“
“
