OTHER FUNCTIONS
11
12

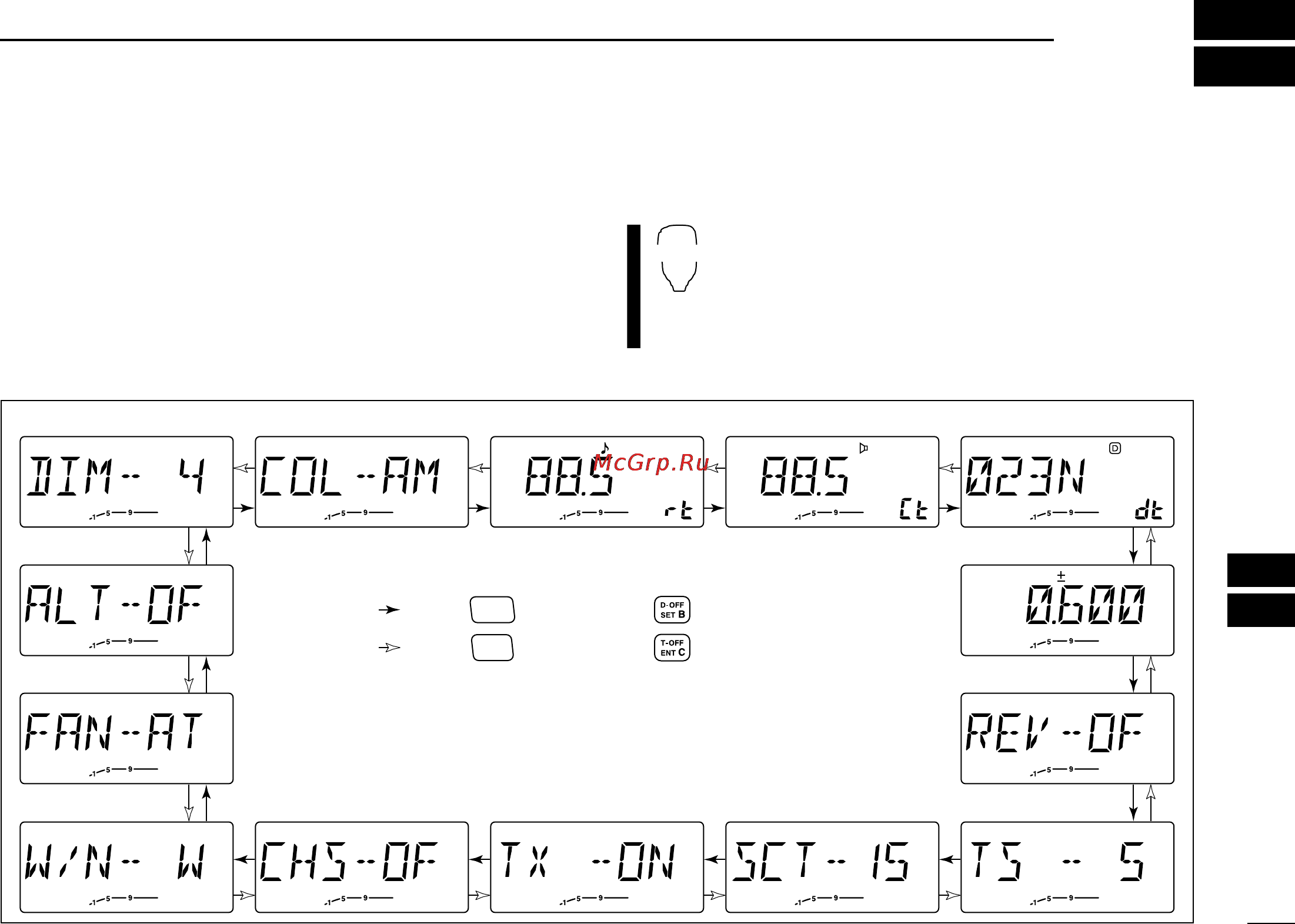

■ Set mode
• Set mode operation
q Push [SET(LOCK)] to enter the set mode.
w Push [SET(LOCK)] or [MW(S.MW)] to select the desired
item.
e Rotate the tuning dial to select the condition or value.
r Push [TONE(T-SCAN)] to exit set mode.
• Set mode items
z Push [
SET
B(D-OFF)] to enter set mode.
x Push [
SET
B(D-OFF)] or [
ENT
C(T-OFF)] to select
the desired item.
c Push [Y] or [Z] to select the condition or value.
v Push [
CLR
A(MW)] to exit set mode.
SET
B
: Push
SET
LOCK
(front panel); or (microphone)
: Push
S.MW
MW
(front panel); or (microphone)
• Display dimmer • Display color • Repeater tone • Tone squelch tone • DTCS code&polarity
• Offset frequency• Weather alert*
• Reverse mode
• Tuning step
‡
• Scan resume • Transmit permission
• Fan control
• Channel skip setting
†
• Wide/Nar. setting*
*Item availablity may differ according to versions.
†
Appears when accessing set mode from memory mode only.
‡
Appears when accessing set mode from VFO mode only.
