5 MEMORY OPERATION
■ Programming a memory channel
VFO settings, including the set mode contents such as sub-
audible tone frequency, etc., can be programmed into a mem-
ory channel.
q Set the desired frequency in VFO mode.
➥ Push [V/MHz(SCAN)] to select VFO mode.
➥ Set the frequency using the tuning dial.
➥ Set other data (e.g. tone frequency, duplex information,
etc.) if required.
w Push [MW(S.MW)] momentarily.
•“M” indicator and the memory channel number blink.
e Rotate the tuning dial to select the memory channel to be
programmed.
• Memory channels not yet programmed are blank.
r Push [MW(S.MW)] for 1 sec. to program.
• 3 beeps sound
• Memory channel number automatically increases when contin-
uing to push [MW(S.MW)] after programming.
✔CONVENIENT
Memory programming can be performed in versatile ways
e.g. memory channel to the same (or different) memory chan-
nel, memory channel to the call channel, etc.

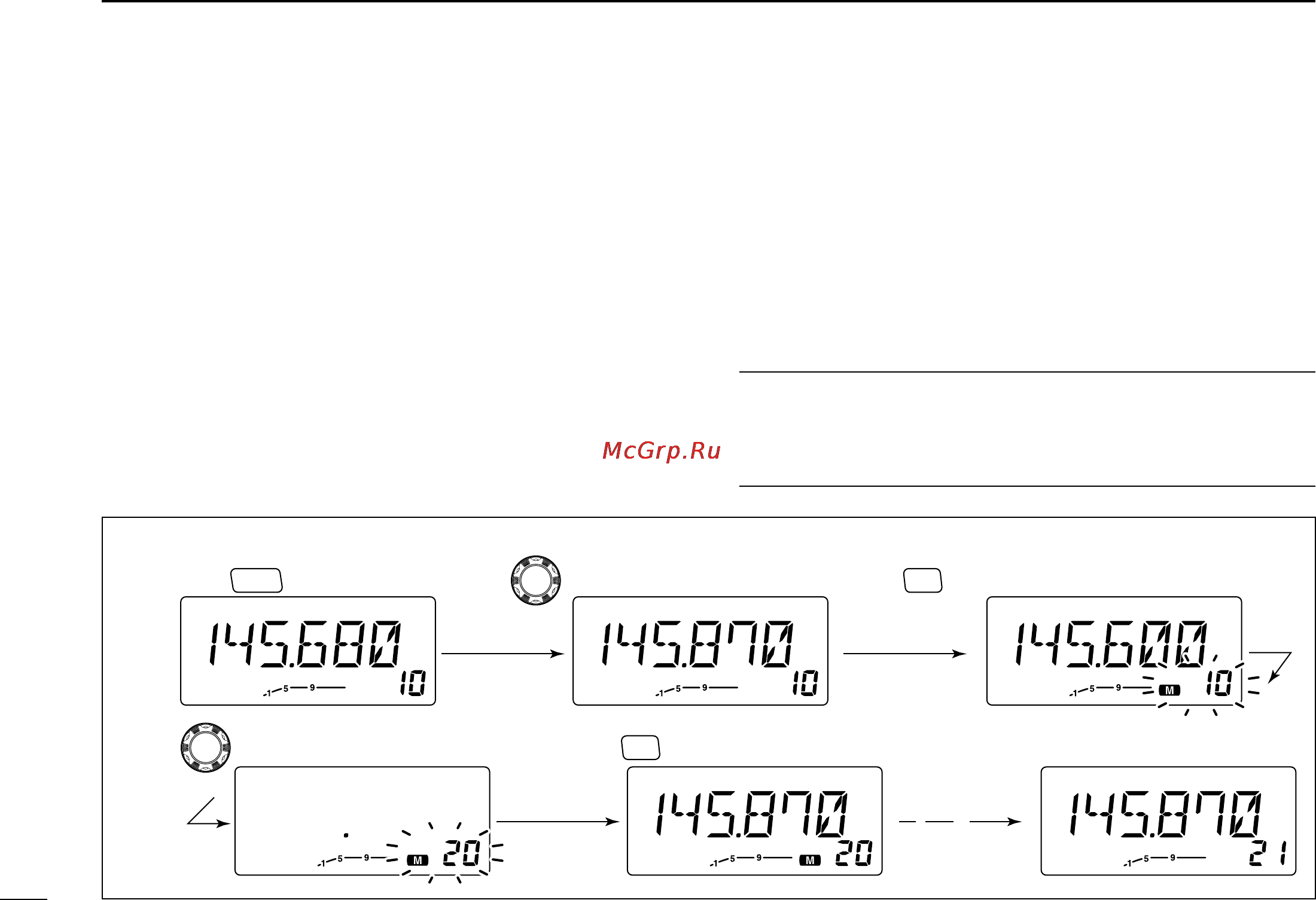

[EXAMPLE]: Programming 145.870 MHz into memory channel 20 (blank channel) via the front panel.
Push Rotate for setting frequency, etc. Push momentarily.
Rotate
V/MHz
SCAN
S.MW
MW
Push for 1 sec. and continue to push
➠
S.MW
MW
Beep
Beep
Beep
“
“
“
“
“
