65
12 OTHER FUNCTIONS
DD

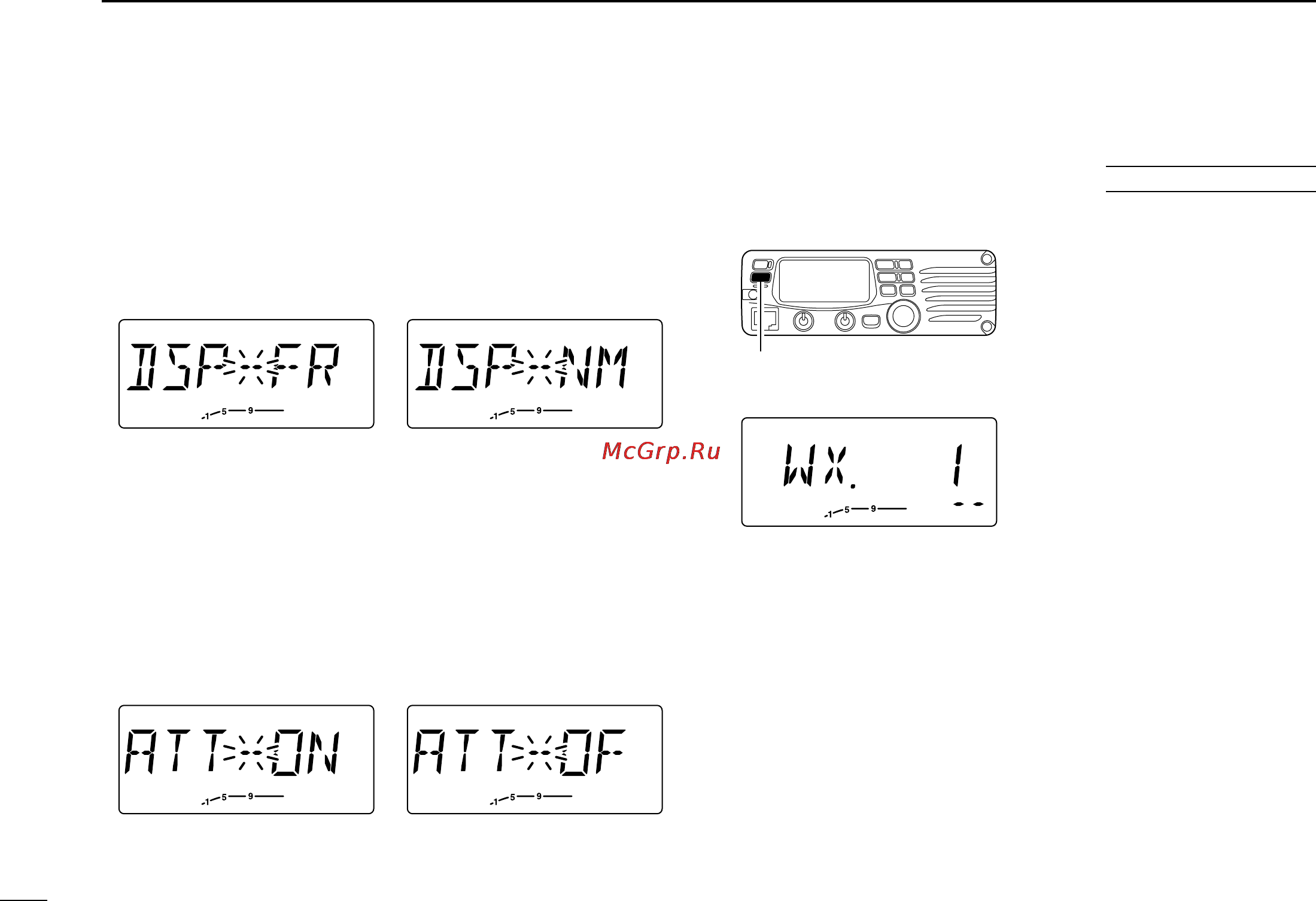

Display type
Selects LCD indication type from frequency, channel number
and channel names.
• FR : Shows frequency (default)
• CH : Shows channel number*
• NM : Shows channel names*
*Memory channels only can be selected.
DD
Squelch attenuator
Turns the squelch attenuator function ON and OFF.
• ON : The squelch attenuator activates when [SQL]
control is set between 12 o’clock and fully
clockwise position. (default)
• OF : The squelch attenuator does not function.
■ Weather channel operation
DD
Weather channel selection
q Push [M/CALL(PRIO)] sev-
eral times to select weather
channel group.
w Rotate the tuning dial to se-
lect the desired weather
channel.
e Push [M/CALL(PRIO)] to
select memory mode, or
push [V/MHz(SCAN)] to se-
lect VFO mode.
Push [M/CALL(PRIO)] several
times to select the WX channel.
U.S.A. versions only
Frequency indication setting Memory channel name
indication setting
