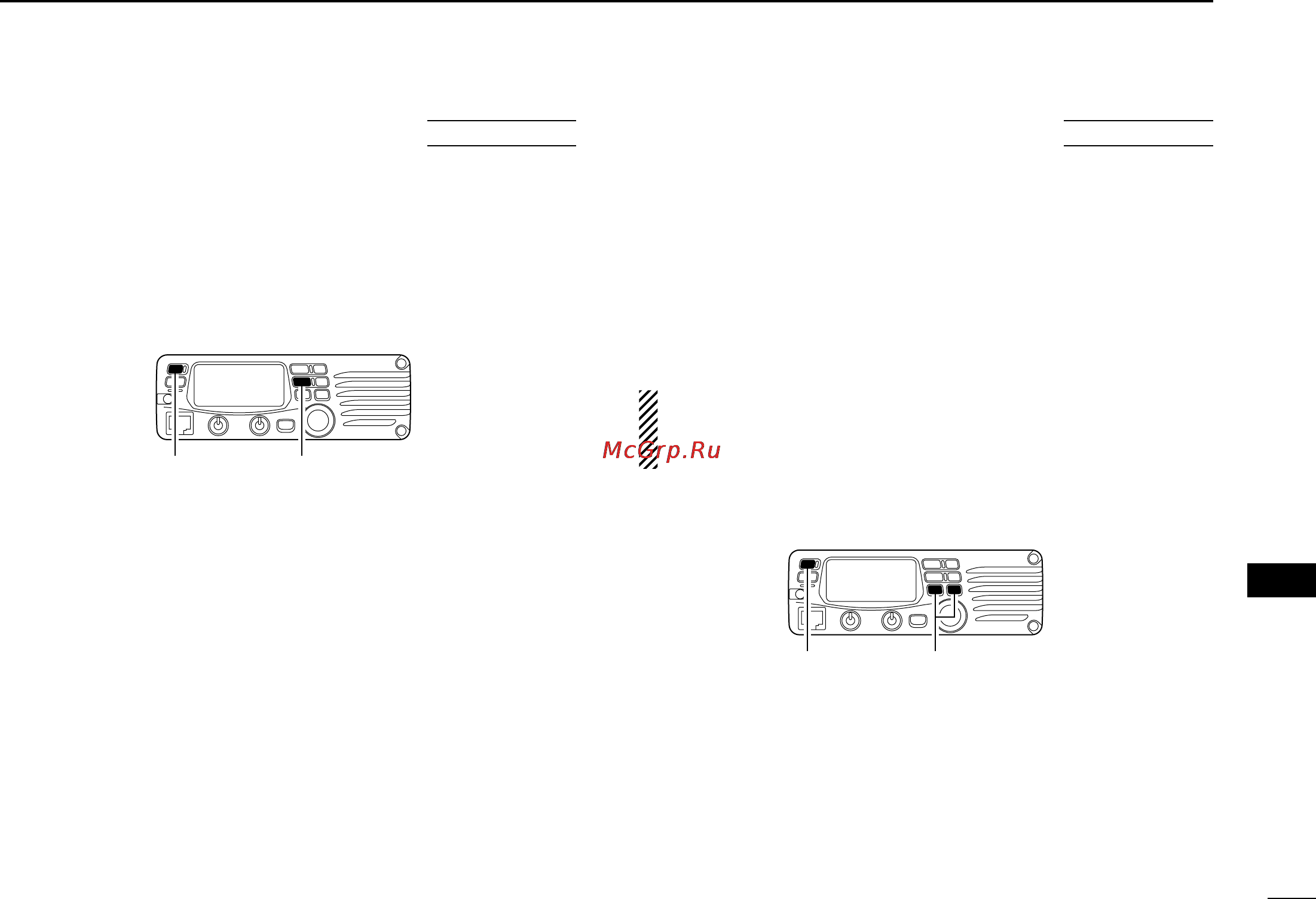

68
12
OTHER FUNCTIONS
12
■ Partial reset
If you want to initialize the operating conditions (VFO fre-
quency, VFO settings, set mode contents) without clearing
the memory contents, a partial resetting function is available
for the transceiver.
➥ While pushing [V/MHz(SCAN)], turn the power ON to par-
tially reset the transceiver.
■ All reset
The function display may occasionally display erroneous in-
formation (e.g. when first applying power). This may be
caused externally by static electricity or by other factors.
If this problem occurs, turn power OFF. After waiting a few
seconds, turn power ON again. If the problem persists, per-
form the following procedure.
• Partial resetting is also available. See left for details.
IMPORTANT!:
Resetting the transceiver CLEARS all memory information
and initializes all values in the transceiver.
➥ While pushing [SET(LOCK)] and [MW(S.MW)], turn the
power ON to reset the CPU.
While pushing [SET(LOCK)] and
[MW(S.MW)], turn power ON.
AT
POWER ON
While pushing [V/MHz(SCAN)],
turn power ON.
AT
POWER ON
