PRIORITY WATCH
8
■ Priority watch types
Priority watch checks for signals on a VFO frequency every
5 sec. while operating on a memory channel. The transceiver
has 3 priority watch types to suit your needs. You can transmit
on the VFO frequency while the priority watch operates.
The watch resumes according to the selected scan resume
condition. See previous page for details.
☞ NOTES:
➧ If the pocket beep function is activated, the transceiver
automatically selects the tone squelch function when pri-
ority watch starts.

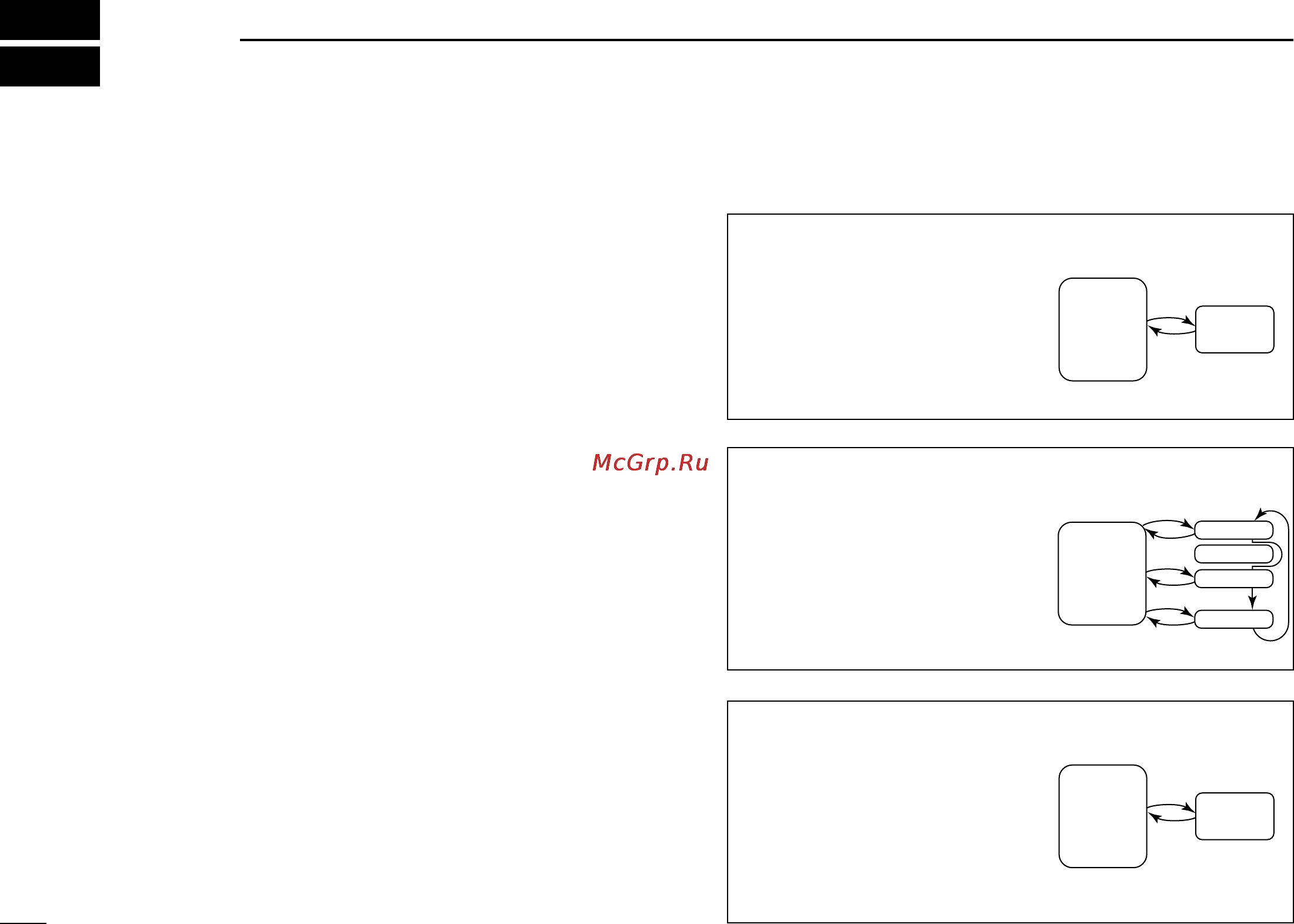

MEMORY CHANNEL WATCH
While operating on a VFO fre-
quency, priority watch checks for
a signal on the selected memory
channel every 5 sec.
MEMORY SCAN WATCH
While operating on a VFO fre-
quency, priority watch checks for
signals on each memory chan-
nel in sequence.
• The memory skip function is useful
to speed up the scan.
5 sec.
VFO
frequency
50 msec.
Memory
channel
5 sec.
50 msec.
VFO
frequency
SKIP
Mch 1
Mch 2
Mch 3
Mch 199
CALL CHANNEL WATCH
While operating on a VFO fre-
quency, priority watch checks for
signals on the call channel every
5 sec.
5 sec.
VFO
frequency
50 msec.
Call
channel
