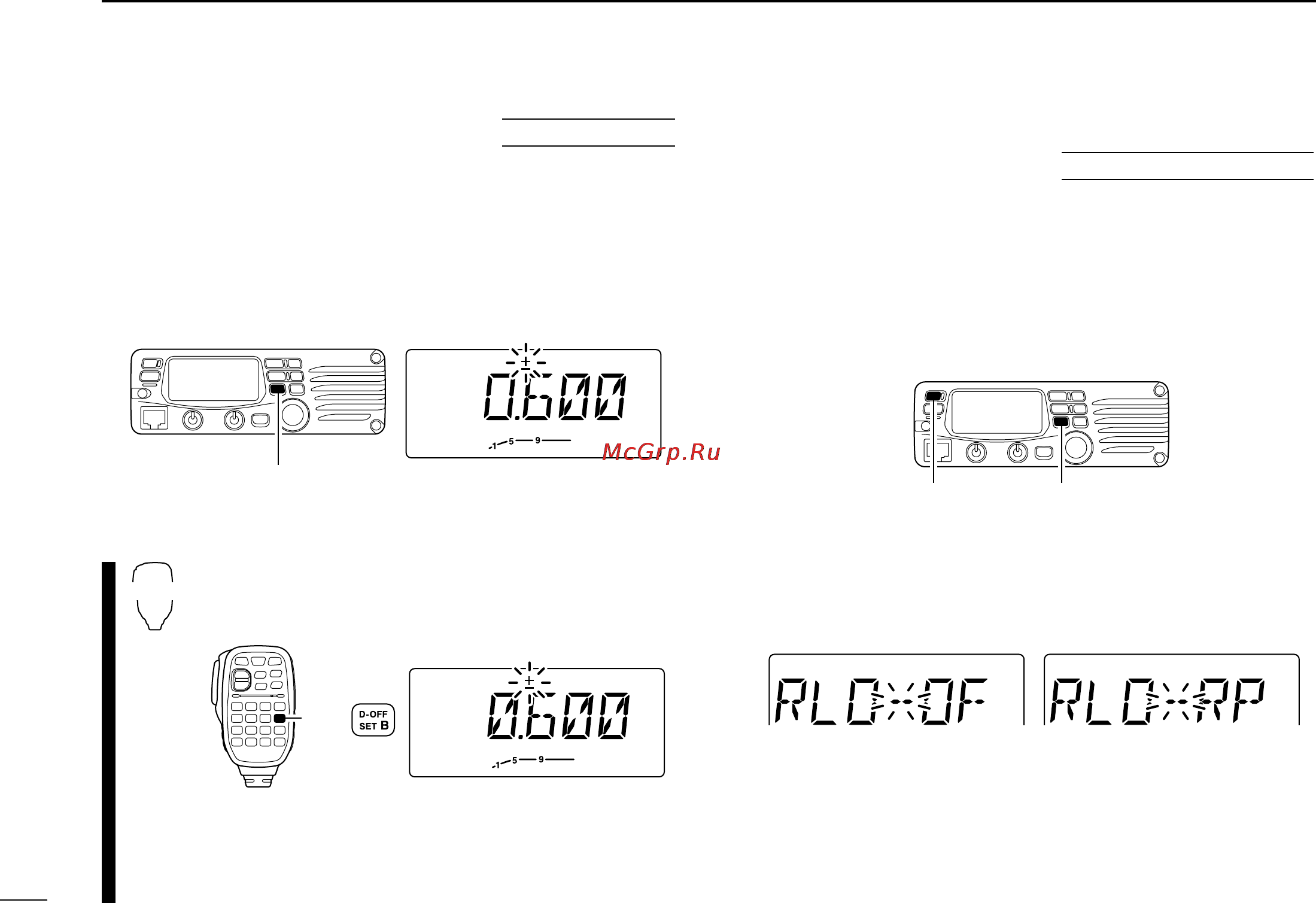

■ Offset frequency
When communicating thorough a repeater, the transmit fre-
quency is shifted from the receive frequency by an amount
determined by the offset frequency.
q Push [SET(LOCK)] to enter set mode.
w Push [SET(LOCK)] or [MW(S.MW)] until “±” and offset fre-
quency appear.
e
Rotate the tuning dial to set the desired offset frequency.
r Push [TONE(T-SCAN)] to exit set mode.
z Push [
SET
B(D-OFF)] to enter set mode.
x
Push [
SET
B(D-OFF)] or [
ENT
C(T-OFF)] until
“±”
and offset frequency appear.
c Push [Y] or [Z] to set the desired
offset.
• Direct frequency entry from the keypad is not possi-
ble.
v Push [
CLR
A(MW)] to exit set mode.
■ Repeater lockout
This function helps prevent interference to other stations by
inhibiting your transmission when a signal is received. The
transceiver has two inhibiting conditions, repeater and busy.
q Push [PWR] to turn power OFF.
w While pushing [SET(LOCK)], turn power ON to enter initial
set mode.
e Push [SET(LOCK)] or [MW(S.MW)] several times until the
“RLO” display appears as shown below.
r Rotate the tuning dial to turn the repeater lockout function
to “RP,” “BU” or OFF.
•“RP”: Transmit is inhibited when a signal with un-matched sub-
audible tone is received.
•“BU”: Transmit is inhibited when a signal is received.
t Push [PWR] to exit initial set mode.
Repeater lockout function is
turned OFF.
Repeater lockout function is
turned ON.
While pushing [SET(LOCK)],
turn power ON.
USING
INITIAL SET MODE
Push
SET
B
[SET(LOCK)]
USING
SET MODE
21
4 REPEATER OPERATION
