53
11 PAGER/CODE SQUELCH
DD
Code programming
An ID code MUST be programmed into code channel C0. Up
to 6 transmit codes are programmable into code channels, C1
to C6, if required.
q Push [BANK(OPT)] for 1 sec.
• Pager mode is selected.
• 100 MHz digit shows “P.”
w Push [SET(LOCK)].
• One of either “CP” or “C0” to “C6” flashes.
•“C0” is the ID code and “C1” to “C6” are transmit codes.
e Rotate the tuning dial to select code channel C0.
• A different ID code must be programmed into each transceiver.
r Push [MW(S.MW)] to set into code programming condition.
• The 1st digit blinks and “C0” indication stops blinking.
t Rotate the tuning dial to set the desired code.
y Push [MW(S.MW)] to select 2nd digit, then rotate the tuning
dial to set the desired code.
• 2nd digit blinks (1st digit stop blinking).
• Repeat this step for 3rd digit programming.
u Push [MW(S.MW)] to program the ID code.
• Long beep sounds and the “C0” indication blinks.
i Rotate the tuning dial to select a transmit code channel
from “C1” to “C6.”
o Repeat steps r to u to set transmit code channel.
!0 Push [BANK(OPT)] to set the channel for “receive inhibit”
or “receive accept.”
• When “receive inhibit” is set, “SKIP” appears as follows.
• Code channel C0 cannot be set as “receive inhibit.”
• See p. 54 for “receive accept” and “receive inhibit” details.
!1 Push [TONE(T-SCAN)] to return to the condition in step q.
Appears when “receive inhibit”
is set to the code channel.

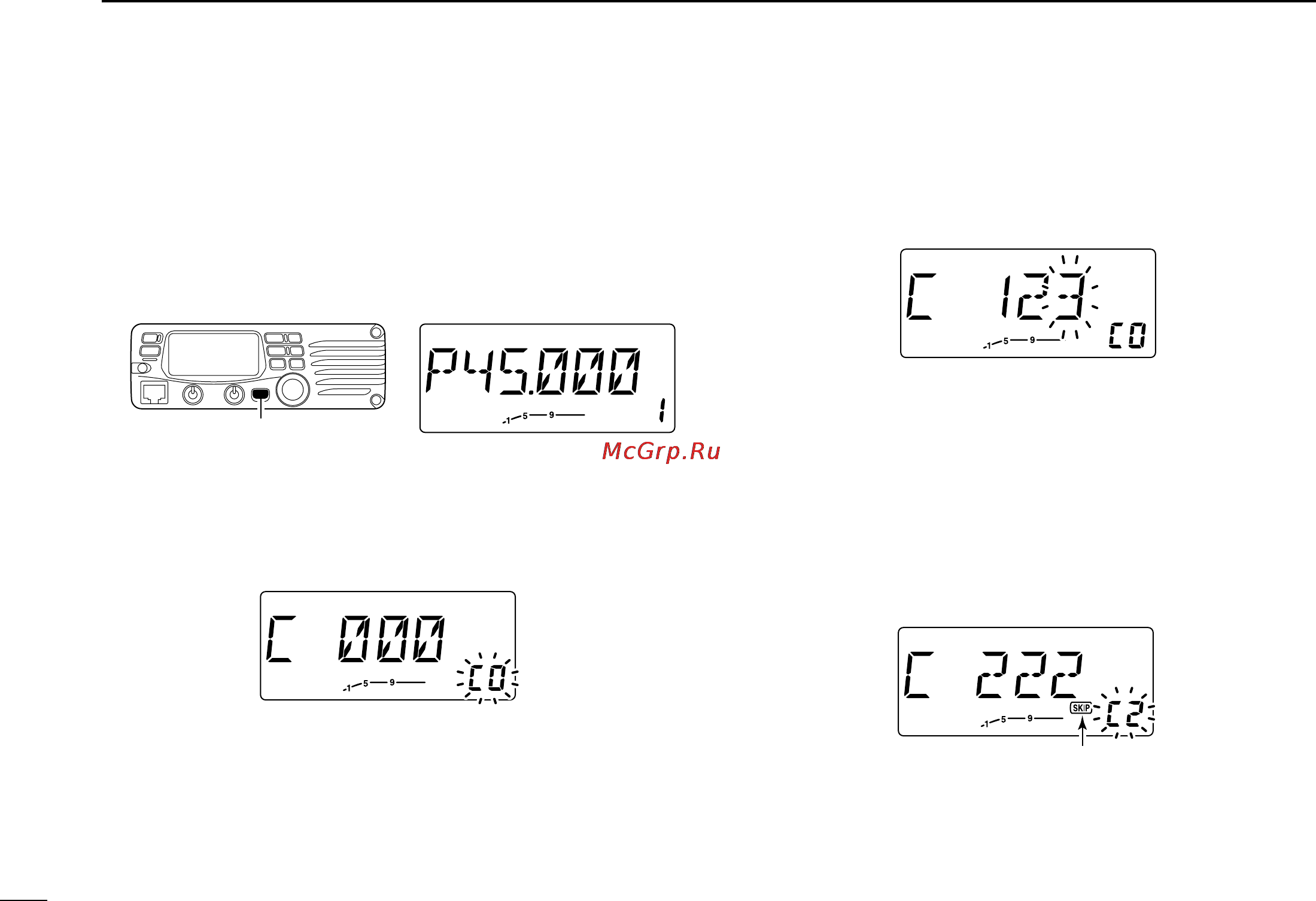

Push [BANK(OPT)] for 1 sec.
Pager mode indication
