Icom IC-V8000 [25/88] I audio mute function
![Icom IC-V8000 [25/88] I audio mute function](/views2/1074121/page25/bg19.png)
14
3
BASIC OPERATION
3

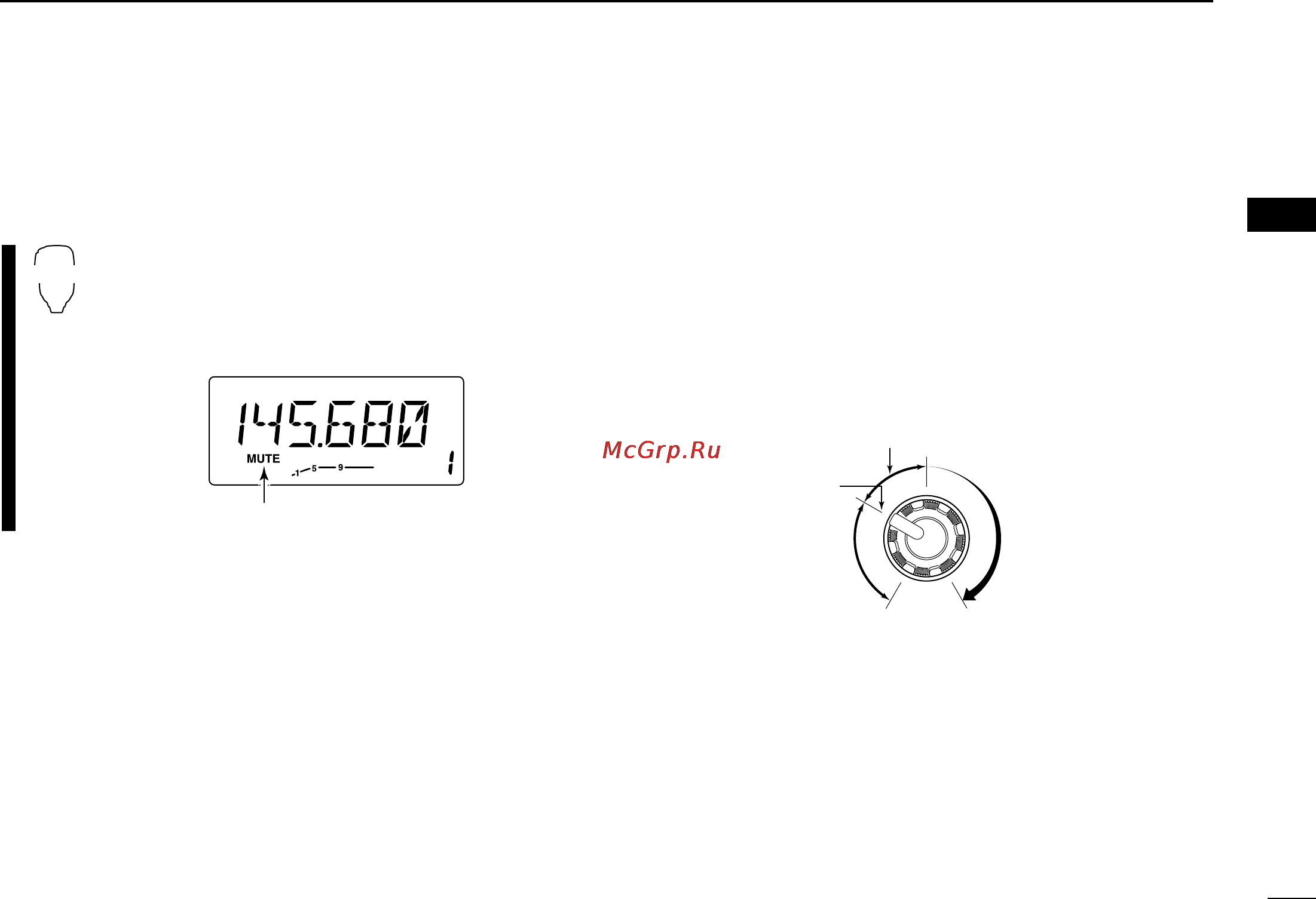

■ Audio mute function
This function temporarily mutes the audio without disturbing
the volume setting.
➥ Push [FUNC] then [
SQL
Y D(MUTE)] to mute
audio signals.
•“MUTE” appears.
• Push [
CLR
A(MW)] (or any other key) to cancel the
function.
■ Squelch attenuator
The transceiver has an RF attenuator related to the squelch
level setting. Approx. 10 dB attenuation is obtained at maxi-
mum setting.
➥ Rotate [SQL] clockwise past the 12 o’clock position to ac-
tivate the squelch attenuator.
• Attenuation level can be adjusted up to 10 dB (approx.) between
12 o’clock and fully clockwise position.
• When setting the squelch from the microphone, a level greater
than ‘19’ activates the squelch attenuator.
Squelch is
open.
Squelch
attenuator
Squelch
threshold
Shallow Deep
Noise squelch
Appears
MUTE
