11
2 SETTING A FREQUENCY
■ Tuning step selection
Tuning steps are the minimum frequency change increments
when you rotate the tuning dial or push [Y]/[Z] on the micro-
phone. The following tuning steps are available.
• 5 kHz • 10 kHz • 12.5 kHz • 15 kHz
• 20 kHz • 25 kHz • 30 kHz • 50 kHz
☞NOTE: For convenience, select a tuning step that matches
the frequency intervals of repeaters in your area.

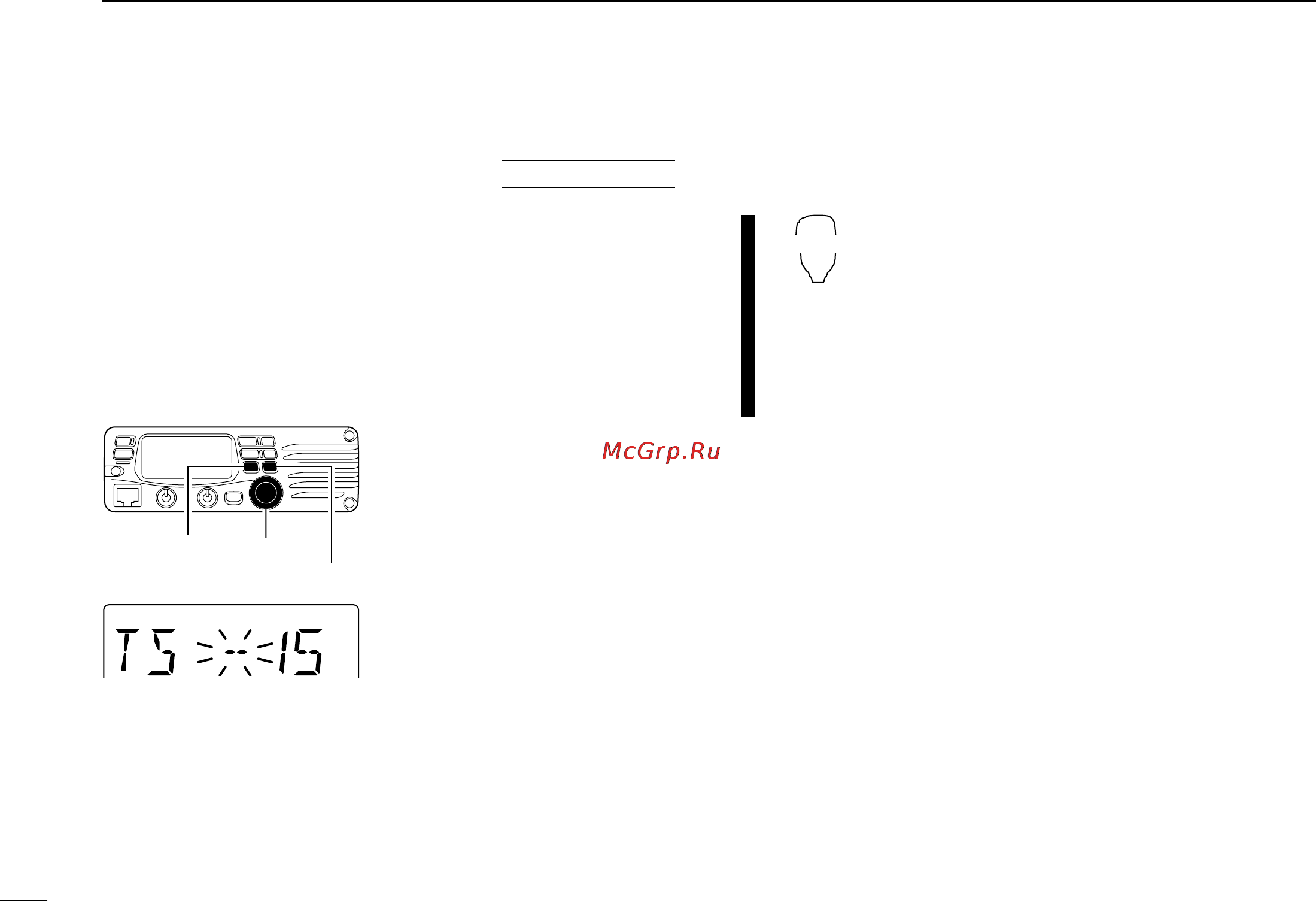

q Push [V/MHz(SCAN)] to se-
lect VFO mode, if neces-
sary.
w Push [SET(LOCK)] to enter
set mode.
e Push [SET(LOCK)] or
[MW(S.MW)] several times
until “TS” appears as shown
at left.
r Rotate the tuning dial to se-
lect the desired tuning step.
t Push [TONE(T-SCAN)] to
exit set mode.
z Push [VFO/LOCK] to select VFO mode, if
necessary.
x Push [
SET
B(D-OFF)] to enter set mode.
c Push [
SET
B(D-OFF)] or [
ENT
C(T-OFF)]
several times until “TS” appears.
v Push [Y] or [Z] to select the desired tuning
step.
b Push [
CLR
A(MW)] to exit set mode.
VFO/LOCK
[SET(LOCK)]
15 kHz tuning step
[MW(S.MW)]
Tuning dial
USING
SET MODE
