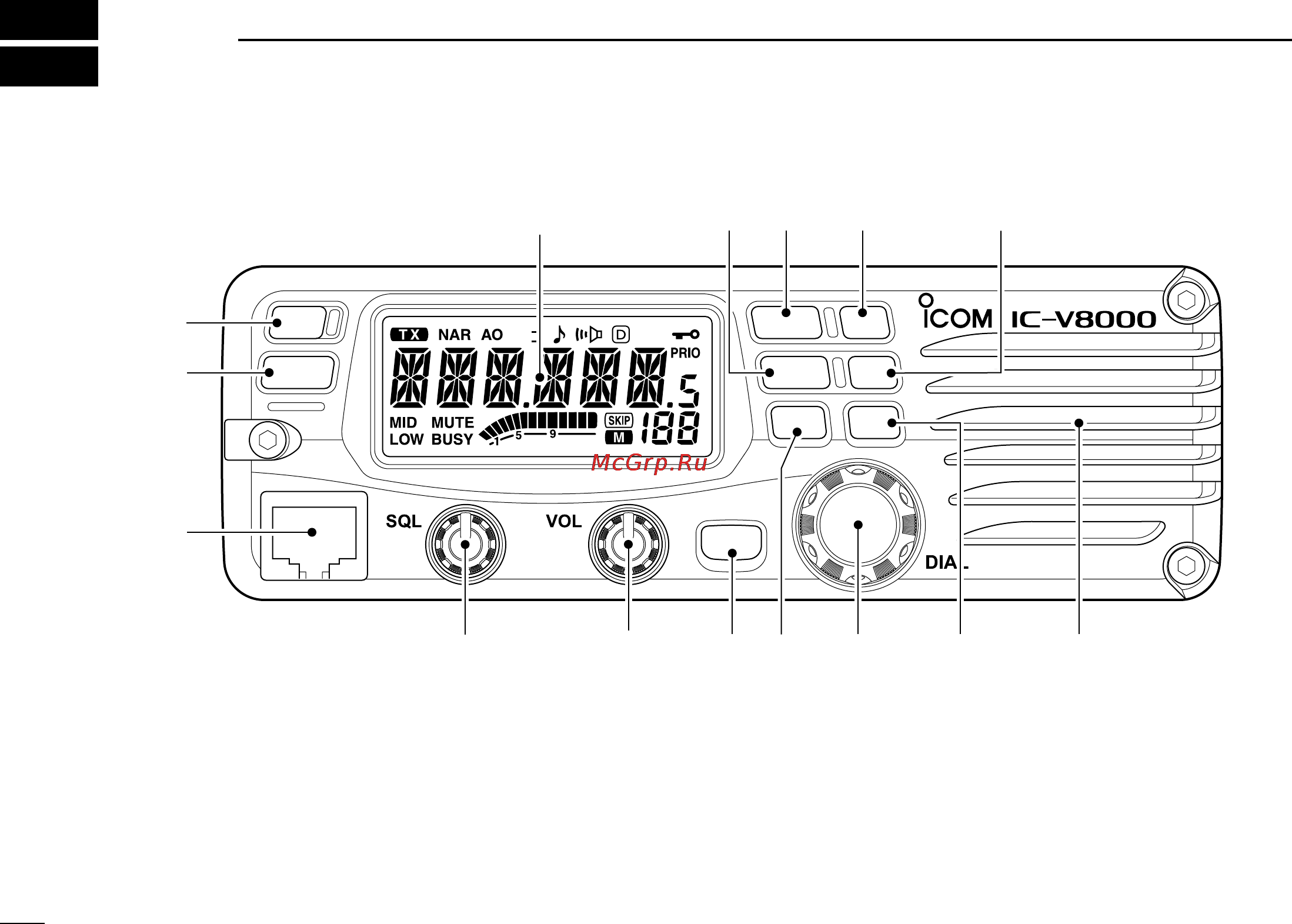

■ Front panel
q POWER SWITCH [PWR]
Turns power ON and OFF when pushed for 1 sec.
w MEMORY/CALL•PRIORITY SWITCH [M/CALL(PRIO)]
➥ Push to select and toggle memory, call and weather
channel* modes. (pgs. 24, 35, 65)
*Weather channels available for USA versions only.
➥ Starts priority watch when pushed for 1 sec. (p. 44)
e MICROPHONE CONNECTOR
Connects the supplied microphone.
r SQUELCH CONTROL [SQL]
Varies the squelch level. (p. 13)
• The RF attenuator activates and increases the attenuation when
rotated clockwise to the center position and further.
t VOLUME CONTROL [VOL]
Adjusts the audio level. (p. 13)
OPT
BANK
V/MHz
SCAN
LOW
DUP
MONI
ANM
SET
LOCK
PWR
S.MW
MW
T-SCAN
TONE
PRIO
M/CALL
t
Function display (p. 3)
q
w
e
ryuioSpeaker
!0!1!2!3
1
PANEL DESCRIPTION
