41
7 SCAN OPERATION
■ Skip channel setting
The memory skip function speeds up scanning by checking
only those memory channels not set as skip channels. Set
skip channels as follows.
q Select a memory channel:
➥ Push [M/CALL(PRIO)] to select memory mode.
➥ Rotate the tuning dial to select the desired channel to
be a skip channel.
w Push [SET(LOCK)] to enter set mode.
e Push [SET(LOCK)] or [MW(S.MW)] several times until
“CHS” appears as shown above.
r Rotate the tuning dial to turn the skip function ON or OFF
for the selected channel.
•“~” appears : The channel is skipped during scan.
(CHS-ON)
•“~” disappears : The channel is scanned during scan.
(CHS-OFF)
t Push [TONE(T-SCAN)] to exit set mode.
z Select a memory channel.
➥ Select memory mode by pushing [MR/CALL].
➥ Push [Y] or [Z] to select the desired channel
to be a skip channel.
x Push [
SET
B(D-OFF)] to enter set mode.
c Push [
SET
B(D-OFF)] or [
ENT
C(T-OFF)] several
times until “CHS” appears as shown at left.
v Push [Y] or [Z] to set or cancel the skip setting.
• See item r at left for skip indicator details.
b Push [
CLR
A(MW)] to exit set mode.
☞ NOTES:
Even though scan edge channels cannot be set as skip
channels, they ARE skipped during memory scan.
SET mode cannot be accessed when memory names are
displayed. To set the scan resume condition, return to fre-
quency indication by pushing [MONI(ANM)] on the front
panel for 1 sec., or push [FUNC] then [
MONI
1(ANM)] (HM-
133V) to cancel the channel name indication, then set as
described on this page.
SET
B

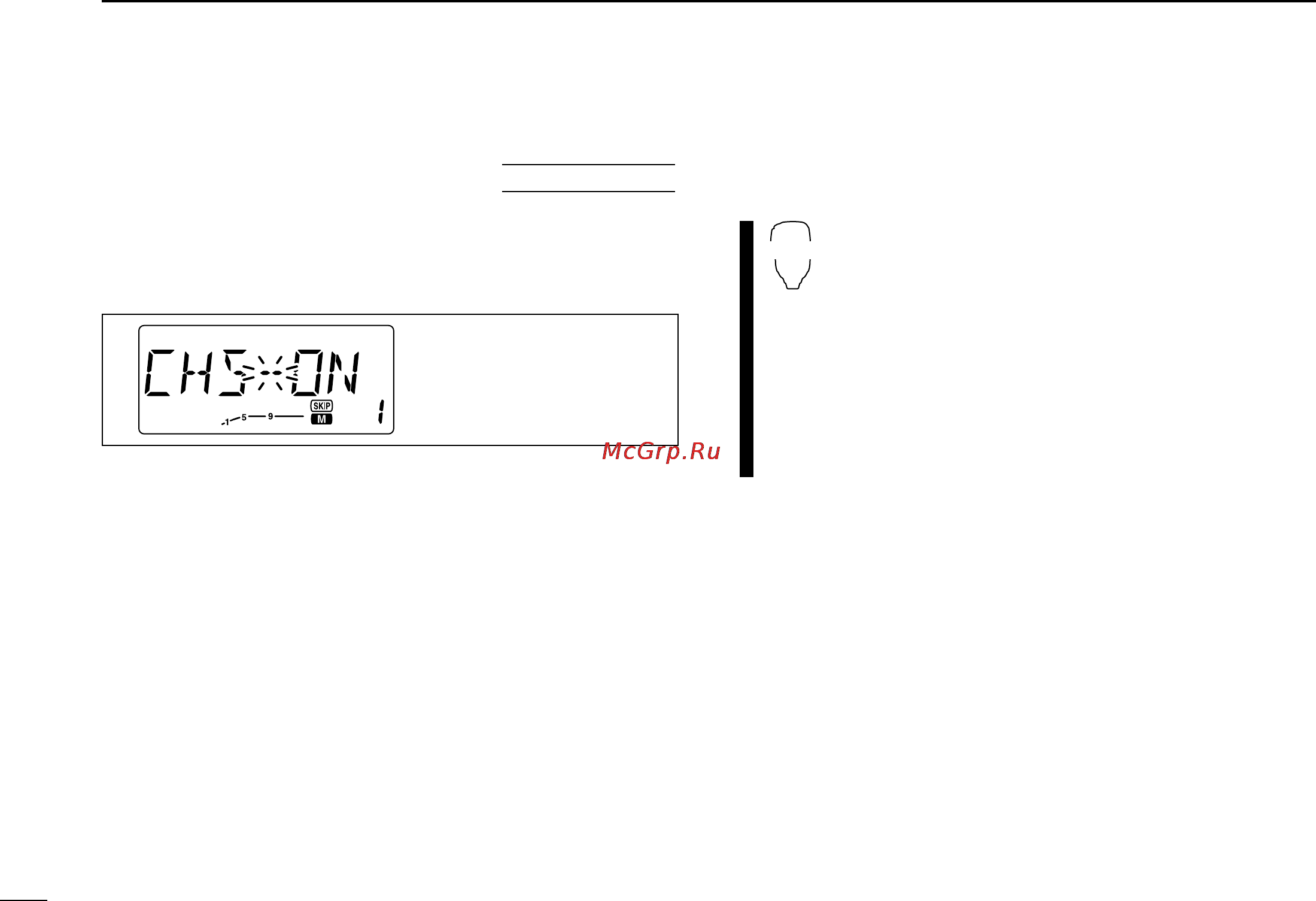

The display shows that
memory channel 1 is set
as a skip channel.
USING
SET MODE
