70
12
OTHER FUNCTIONS
12
D Cloning using a personal computer
Data can be cloned to and from a personal computer (Mi-
crosoft
®
Windows
®
95/98/ME) using the optional CS-V8000
CLONING SOFTWARE
and the optional OPC-478
CLONING
CABLE
. Consult the CS-V8000
CLONING SOFTWARE
HELP file
for details.
D Cloning error
☞ NOTE: DO NOT push any key on the sub-transceiver dur-
ing cloning. This will cause a cloning error.

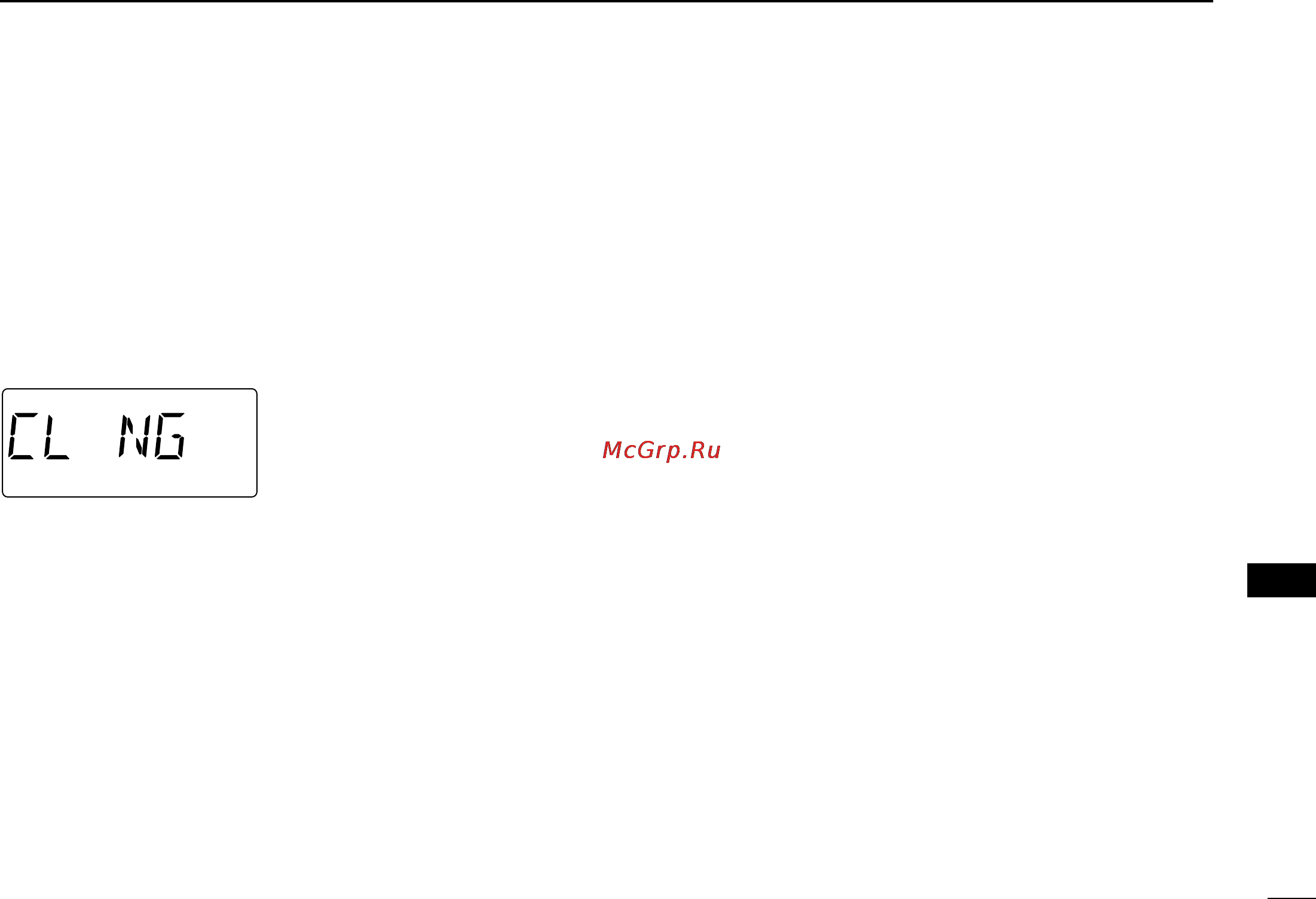

When the display at left ap-
pears, a cloning error has oc-
curred.
In such a case, both trans-
ceivers automatically return to
the clone standby condition
and cloning must be repeated.
