9

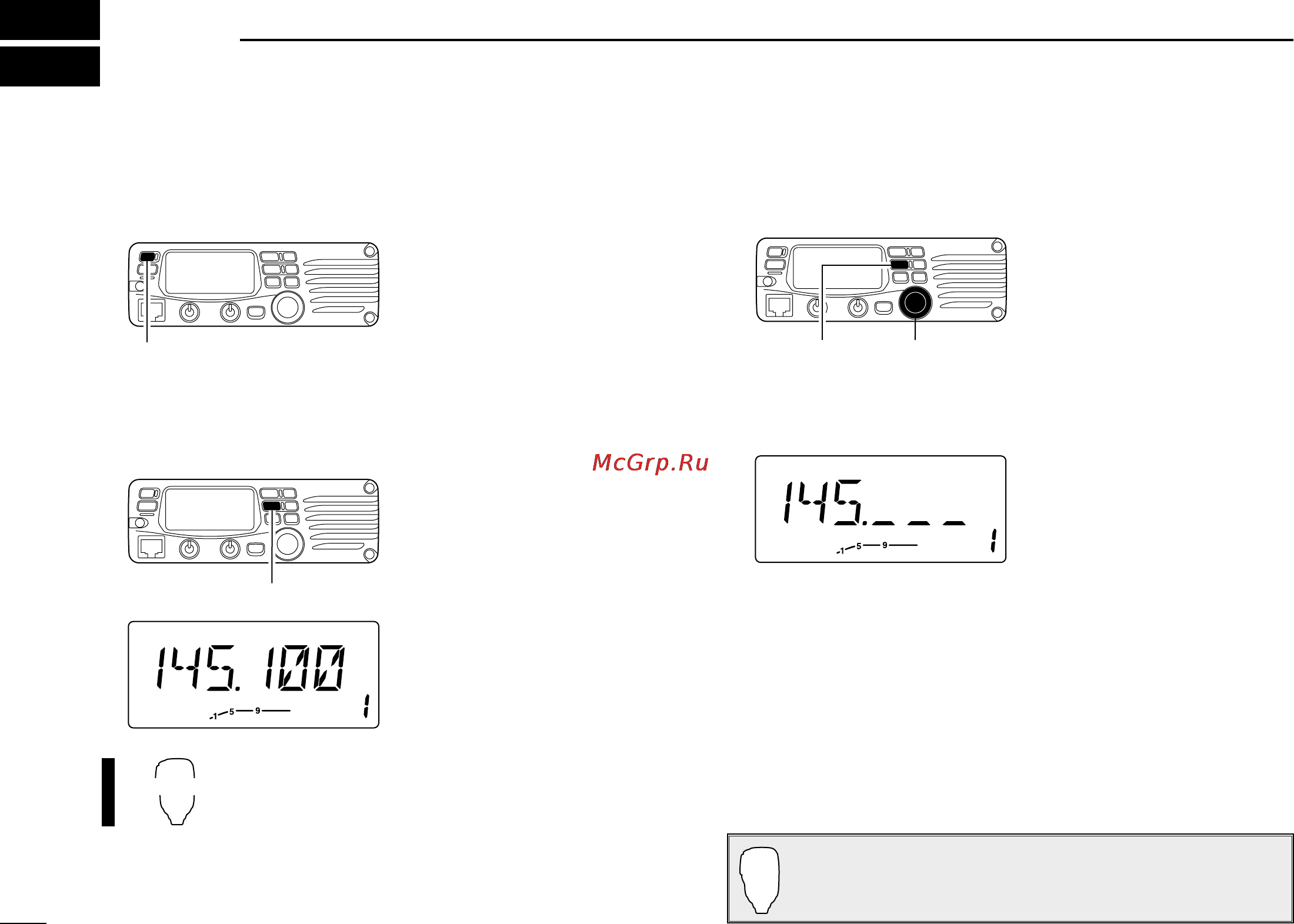

SETTING A FREQUENCY
2
■ Preparation
D Turning power ON/OFF
➥ Push [PWR] for 1 sec. to
turn power ON and OFF.
D VFO mode selection
The transceiver has 2 basic operating modes: VFO mode and
memory mode.
➥ Push [V/MHz(SCAN)] to
select VFO mode.
➥ Push [VFO/LOCK] to select VFO mode.
■ Using the tuning dial
qRotate the tuning dial to set the frequency.
• If VFO mode is not selected,
push [V/MHz(SCAN)] to select
VFO mode.
• The frequency changes ac-
cording to the selected tuning
steps. (p. 11)
wTo change the frequency in 1 MHz (10 MHz for some ver-
sions) steps, push [V/MHz(SCAN)], then rotate the tuning
dial.
• Pushing [V/MHz(SCAN)] for
1 sec. starts scan function.
If scan starts, push
[V/MHz(SCAN)] again to can-
cel it.
The display shows that the
1 MHz tuning step is selected.
Tunig dial[V/MHz(SCAN)]
VFO/LOCK
Push [V/MHz(SCAN)]
Push [PWR] for 1sec.
Note that in this manual, sections beginning with a micro-
phone icon (as above), designate operation via the HM-
133V microphone.
