CALL CHANNEL OPERATION
6
■ Call channel selection
➥ Push [M/CALL(PRIO)] sev-
eral times to select the call
channel.
•“C” appears instead of mem-
ory channel number indication.
• Push [M/CALL(PRIO)] once or
twice to select memory mode,
or push [V/MHz(SCAN)] to se-
lect VFO mode.
➥ Push [MR/CALL] for 1 sec. to select the call
channel.
• Push [MR/CALL] to select memory mode, or push
[VFO/LOCK] to select VFO mode.
■ Call channel transferring
q Push [M/CALL(PRIO)] several times to select the call
channel.
•“C” appears.
w Push [MW(S.MW)] momentarily, then rotate the tuning dial
to select the memory channel to transfer the contents to.
•“M” indicator and memory channel number blink.
• To transfer to the VFO, push [MW(S.MW)] for 1 sec.
e Push [MW(S.MW)] for 1 sec. to transfer when a momen-
tary push was used in the previous step.
• If channel names have been programmed into the call channel,
the names are also transferred.
z Push [MR/CALL] for 1 sec. to select the call
channel.
x Push [FUNC], [
CLR
A(MW)] momentarily, then
push [Y]/[Z] to select the memory channel to
transfer the contents to.
• To transfer to the VFO, push [FUNC], then push
[
CLR
A(MW)] for 1 sec.
c Push [FUNC], then [
CLR
A(MW)] for 1 sec. to
transfer when a momentary push was used in
the previous step.
• If channel names have been programmed into the
call channel, the names are also transferred.
MR/CALL
MW
[Y]/[Z]
MR/CALL

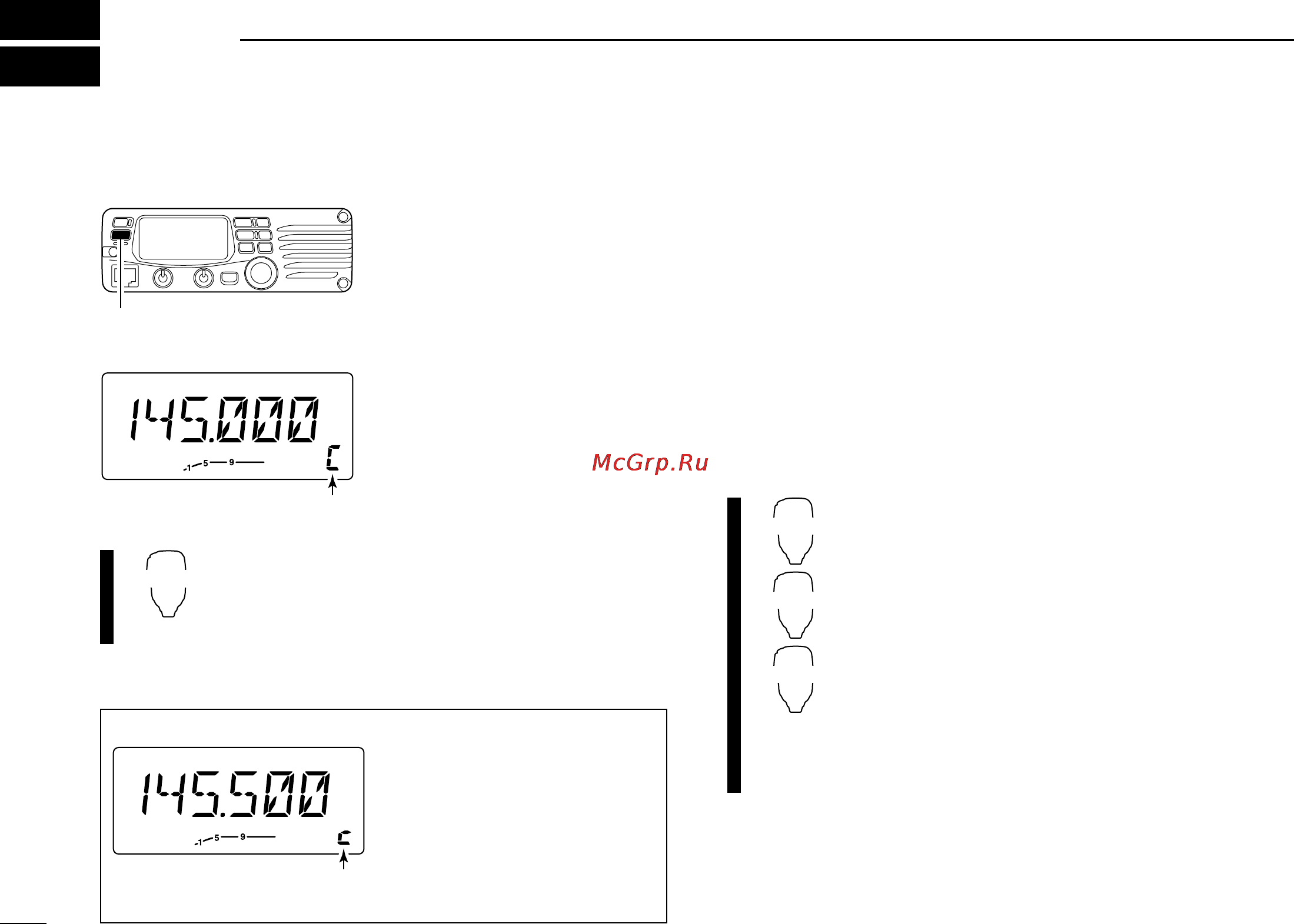

Push [M/CALL(PRIO)] several
times to select the call channel.
Appears
✔INFORMATION
When the VFO mode is se-
lected from the call channel,
a small “c” appears instead
of memory channel number.
Small “c” shows VFO was
selected from the call channel.
