Icom IC-V8000 [63/88] Pager code squelch
![Icom IC-V8000 [63/88] Pager code squelch](/views2/1074121/page63/bg3f.png)
52
11
PAGER/CODE SQUELCH
10
11
■ Pager function
This function uses DTMF codes for paging and can be used
as a “message pager” to inform you of a caller’s identification
even when you leave the transceiver temporarily unattended.
■
Code programming
DD
Before programming
The pager and code squelch functions require ID codes and a
group code. These codes are 3-digit DTMF codes and must
be written into the code channels before operation.
q Decide the ID code of each transceiver and a group code
for your group.
w Decide whether you want to return to normal operation or
code squelch operation after a connection is made.
e Program the ID code, group code and transmit codes
(other station’s codes) as below.
DD
Code channel assignment
*
Channel CP automatically memorizes an ID code when receiving a
pager call. The contents in channel CP cannot be changed manually.
Optional UT-108 required

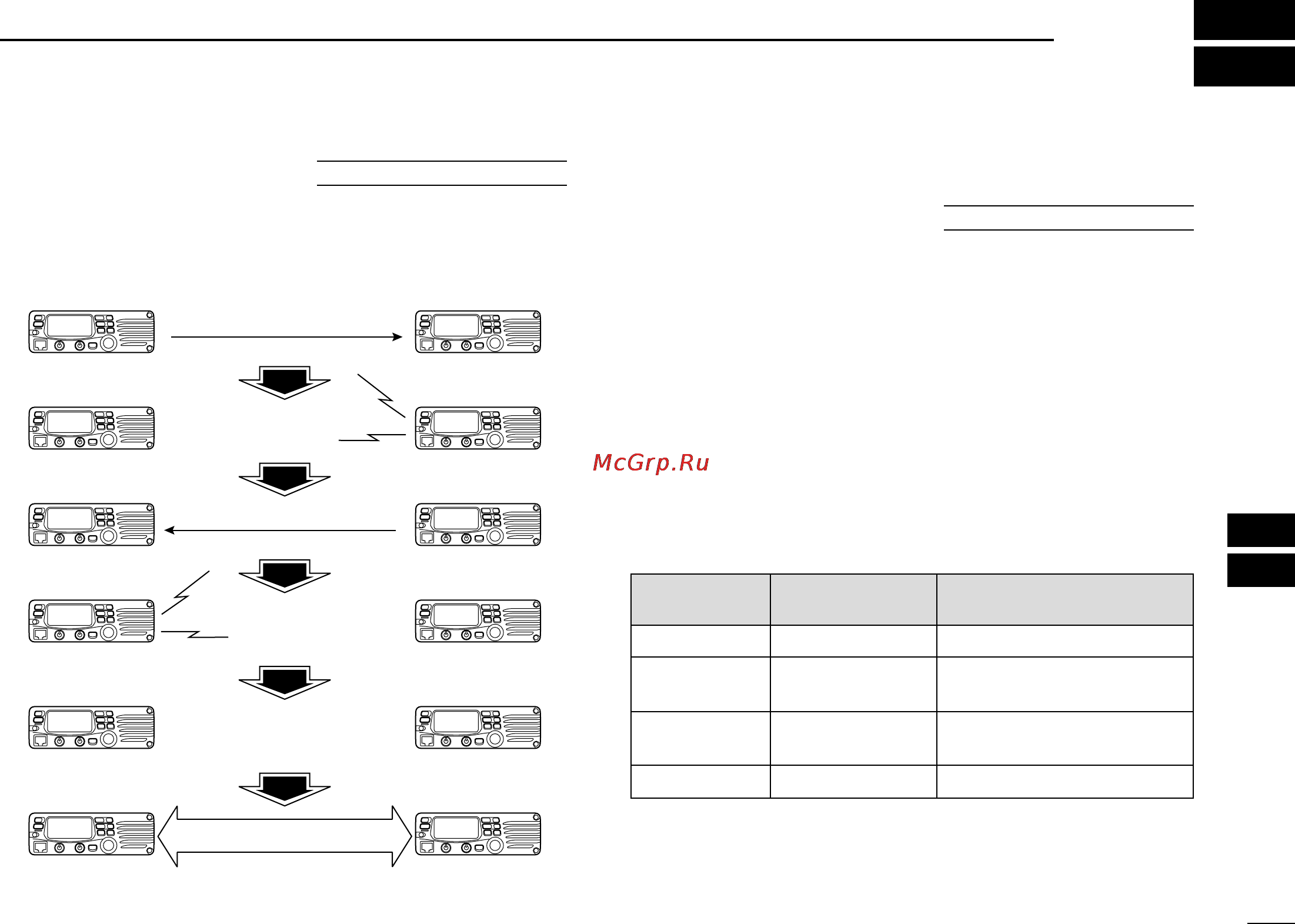

Pager selective code
(push [PTT])
Beep Beep
Beep
Answer back (manual)
Beep Beep
Beep
Set both transceivers to
either code squelch or
non-coded operation
Communication
Optional UT-108 required
ID OR CODE CHANNEL “RECEIVE ACCEPT” OR
GROUP CODE NUMBER “RECEIVE INHIBIT”
Your ID code 0 “Receive accept” only
Other parties’
1–6
“Receive inhibit” should be
ID code
programmed in each channel.
Group code One of 1–6
“Receive accept” must be
programmed.
Memory space* P “Receive inhibit” only.
