Icom IC-V8000 [16/88] I rear panel
![Icom IC-V8000 [16/88] I rear panel](/views2/1074121/page16/bg10.png)
5
1 PANEL DESCRIPTION

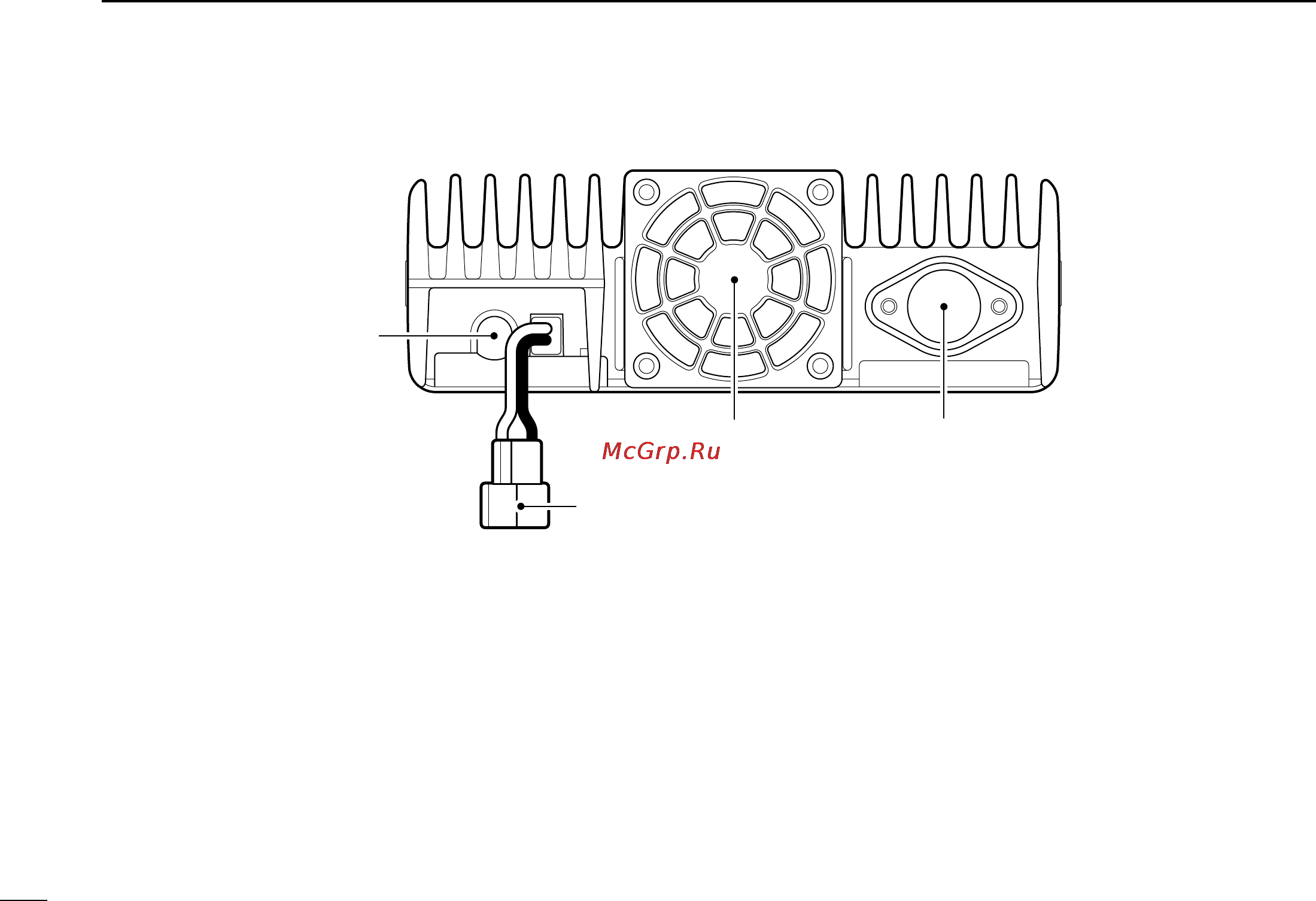

■ Rear panel
q SPEAKER JACK [SP]
Accepts an 8 Ω speaker.
• Audio output power is more than 2.0 W.
w POWER RECEPTACLE [DC13.8V]
Accepts 13.8 V DC ±15% with the supplied DC power
cable.
☞ NOTE: DO NOT use a cigarette lighter socket as a
power source when operating in a vehicle. The plug
may cause voltage drops and ignition noise may be su-
perimposed onto transmit or receive audio.
e COOLING FAN
Rotates while transmitting.
Also rotates while receiving depending on the setting in set
mode and transceiver’s temperature. (p. 61)
r ANTENNA CONNECTOR [ANT]
Connects a 50 Ω antenna with a PL-259 connector and a
50 Ω coaxial cable.
q
w
er
