SCAN OPERATION
7
D Programming scan edges via microphone
z Set the desired frequency in VFO mode.
➥ Push [VFO/LOCK] to select VFO mode.
➥ Set the frequency via the keypad or [Y]/[Z].
x Push [FUNC] then [
CLR
A(MW)] momentarily.
c Push [Y] or [Z] to select scan edge channels,
1A, 2A or 3A.
v Push [FUNC], then push [
CLR
A(MW)] for 1 sec.
to program.
• 3 beeps sound and VFO is automatically selected.
• Memory channel number advances to the next scan
edge channel, 1b, 2b or 3b, when continuing to push
[
CLR
A(MW)] after programming.
b To program a frequency for the other scan edge channels,
repeat steps z to v.
MW

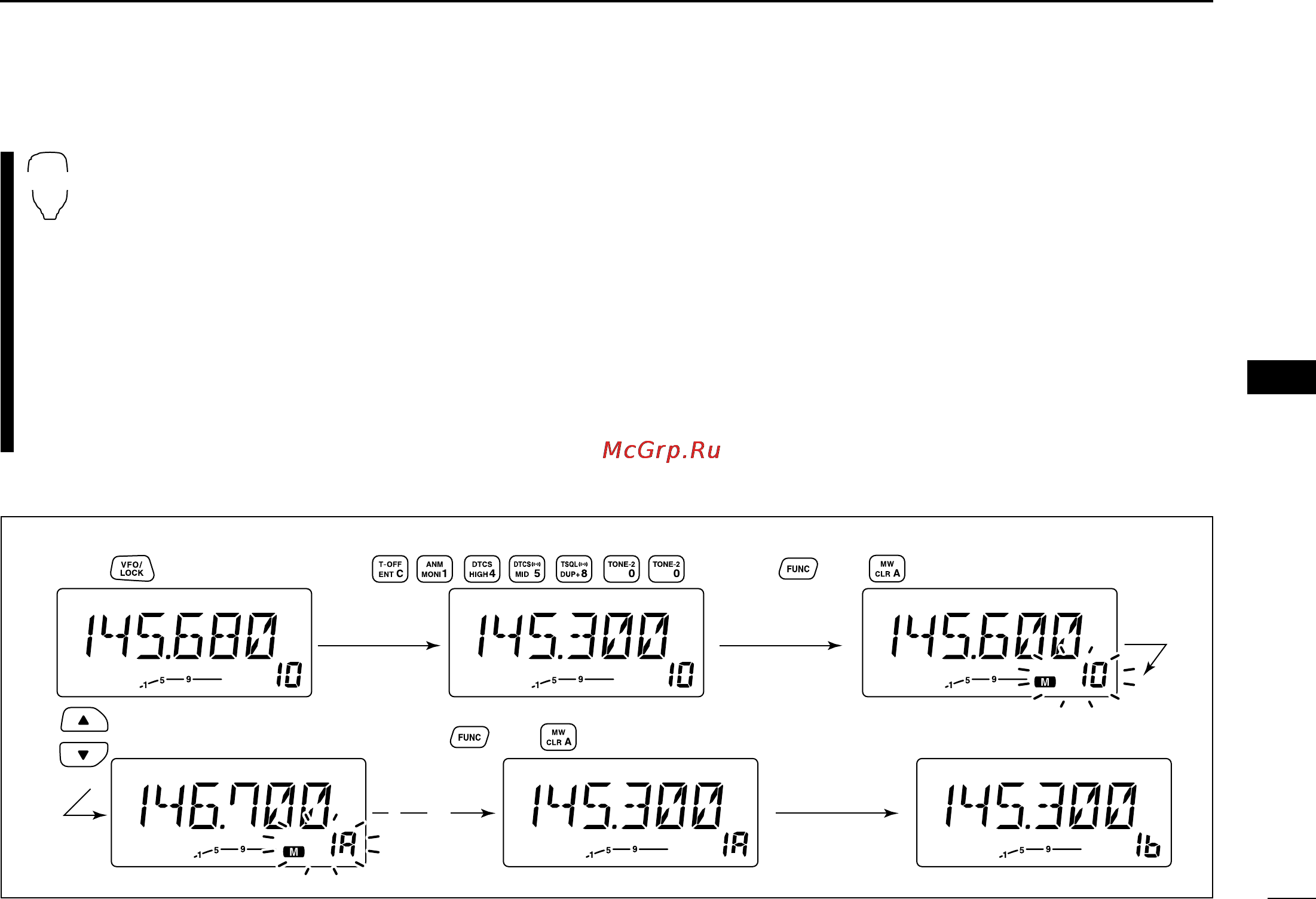

[EXAMPLE]: Programming 145.300 MHz and 145.800 MHz into scan edges 1A and 1b, respectively.
Push
Push
Push then momentarily.
Push
Push then 1 sec. and continue to push
➠
Beep
“
Beep
Beep
Beep
“
“
“
“
“
