PANEL DESCRIPTION
1
y BANK•OPTION SWITCH [BANK(OPT)]
➥ Push to select memory bank condition during memory
mode. (p. 32)
➥ Push for 1 sec. to select and toggle the pager and code
squelch function when the optional UT-108 is installed.
(p. 52)
u SET•LOCK SWITCH [SET(LOCK)]
➥ Enters set mode when pushed. (p. 58)
➥ Switches the lock function ON and OFF when pushed
for 1 sec. (p. 12)
i TUNING DIAL [DIAL]
Selects the operating frequency (p. 9), memory channel
(p. 24), the setting of the set mode item and the scanning
direction (p. 38).
o MEMORY WRITE SWITCH [MW(S.MW)] (p. 25)
➥ Selects a memory channel for programming.
➥ Programs the selected memory channel when pushed
for 1 sec.
• Continue to hold the switch to increment the memory chan-
nel automatically.
!0 MONITOR•CHANNEL NAME SWITCH [MONI(ANM)]
➥ Push to switch the monitor function ON and OFF. (p. 13)
➥ In memory and call channel mode, switches the channel
names or number ON and OFF. (p. 30)
!1 OUTPUT POWER SWITCH [LOW(DUP)]
➥ Each push changes the output power selection. (p. 15)
➥ Select DUP–, DUP+ and simplex operation when
pushed for 1 sec. (p. 17)
!2 TONE/TONE SCAN SWITCH [TONE(T-SCAN)]
➥ Each push selects a tone function. (pgs. 17, 48)
• Tone encoder, pocket beep, tone squelch or tone function
OFF can be selected.
➥ Push for 1 sec. to start/stop the tone scan function.
(p. 51)
!3 VFO/MHz TUNING•SCAN SWITCH [V/MHz(SCAN)]
➥ Selects and toggles VFO mode and 1 MHz (or 10 MHz
for some versions) tuning when pushed. (p. 9)
➥ Starts scan when pushed for 1 sec. (p. 38)
• Cancels a scan when pushed during scan.

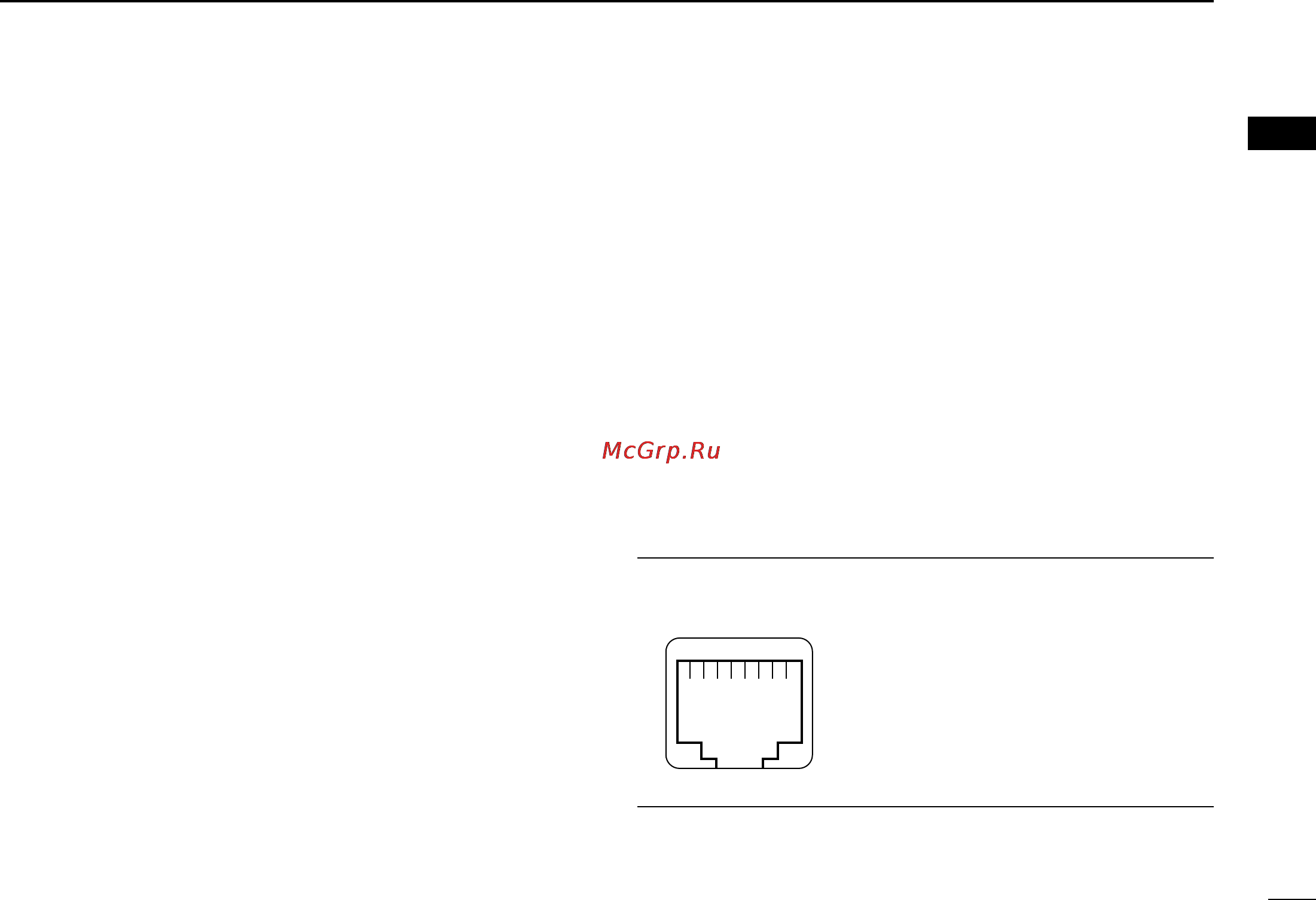

D Microphone connector (front panel view)
q +8 V DC output (Max. 10 mA)
w Channel up/down
e 8 V control IN
r PTT
t GND (microphone ground)
y MIC (microphone input)
u GND
i Data IN
q
i
