Chapter 7 Wireless
NXC Series User’s Guide
100

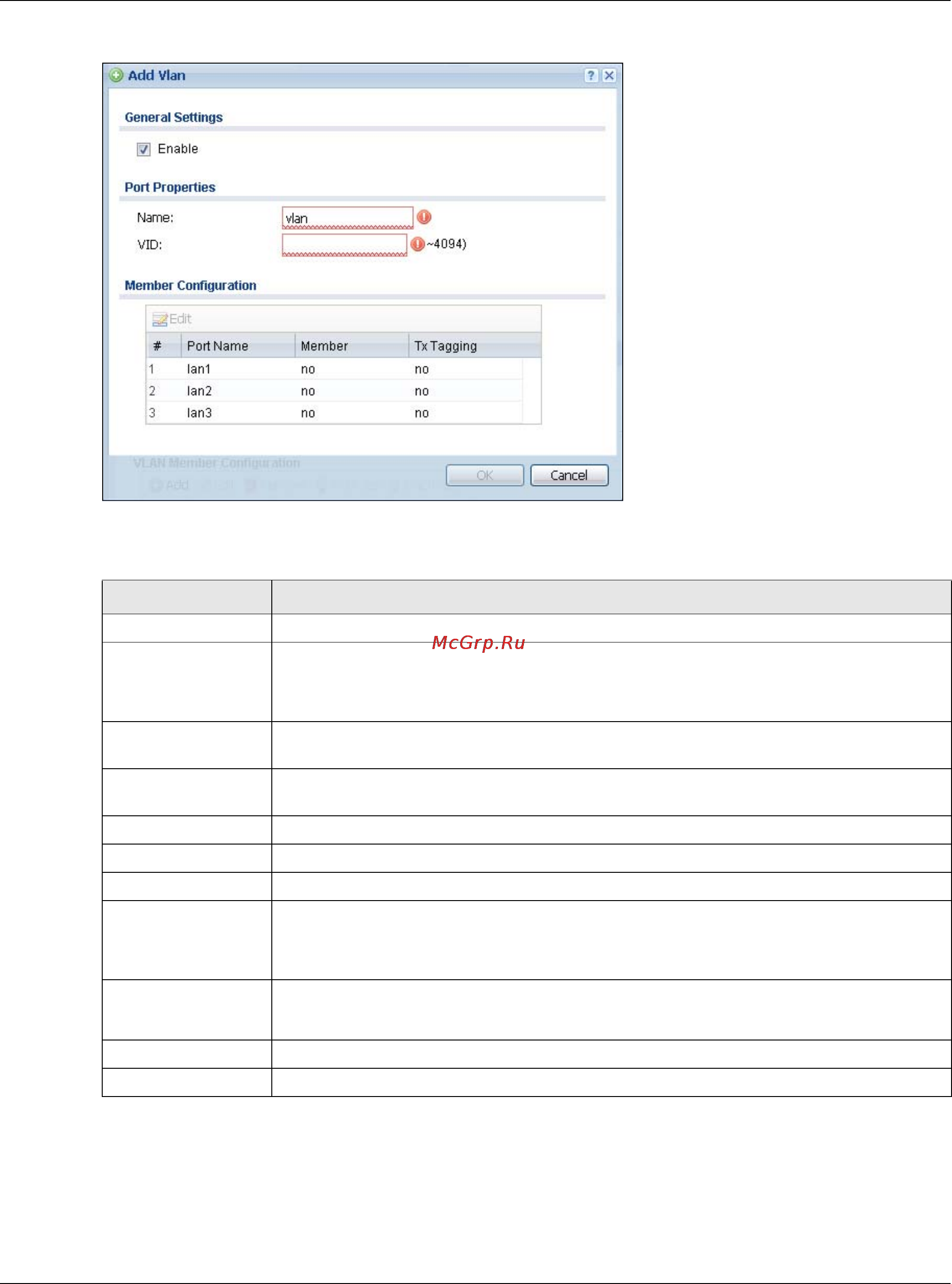

Figure 49 Configuration > Wireless > AP Management > Edit AP List > Edit VLAN
Each field is described in the following table.
Table 51 Configuration > Wireless > AP Management > Edit AP List > Edit VLAN
LABEL DESCRIPTION
Enable Select this option to activate the VLAN. Otherwise, deselect it.
Name This field is read-only if you are editing an existing VLAN.
Enter the number of the VLAN. You can use a number from 0~4095. For example,
vlan0, vlan8, and so on.
VID Enter the VLAN ID. This 12-bit number uniquely identifies each VLAN. Allowed values
are 1 - 4094. (0 and 4095 are reserved.)
Member
Configuration
Use these settings to assign ports to this VLAN as members.
Edit Click this to edit the selected port’s membership values.
# This is sequential indicator of the port number.
Port Name This indicates the port name.
Member This indicates whether the selected port is a member or not of the VLAN which is
currently being edited.
Click this field to edit the value.
Tx Tagging This indicates whether the selected port tags outbound traffic with this VLAN’s ID .
Click this field to edit the value.
OK Click OK to save your changes back to the NXC.
Cancel Click Cancel to close the window with changes unsaved.
