Chapter 16 Firewall
NXC Series User’s Guide
191
16.3 Session Control
Click Configuration > Firewall > Session Control to display the Firewall Session Control
screen. Use this screen to limit the number of concurrent NAT/firewall sessions a client can use. You
can apply a default limit for all users and individual limits for specific users, addresses, or both. The
individual limit takes priority if you apply both.

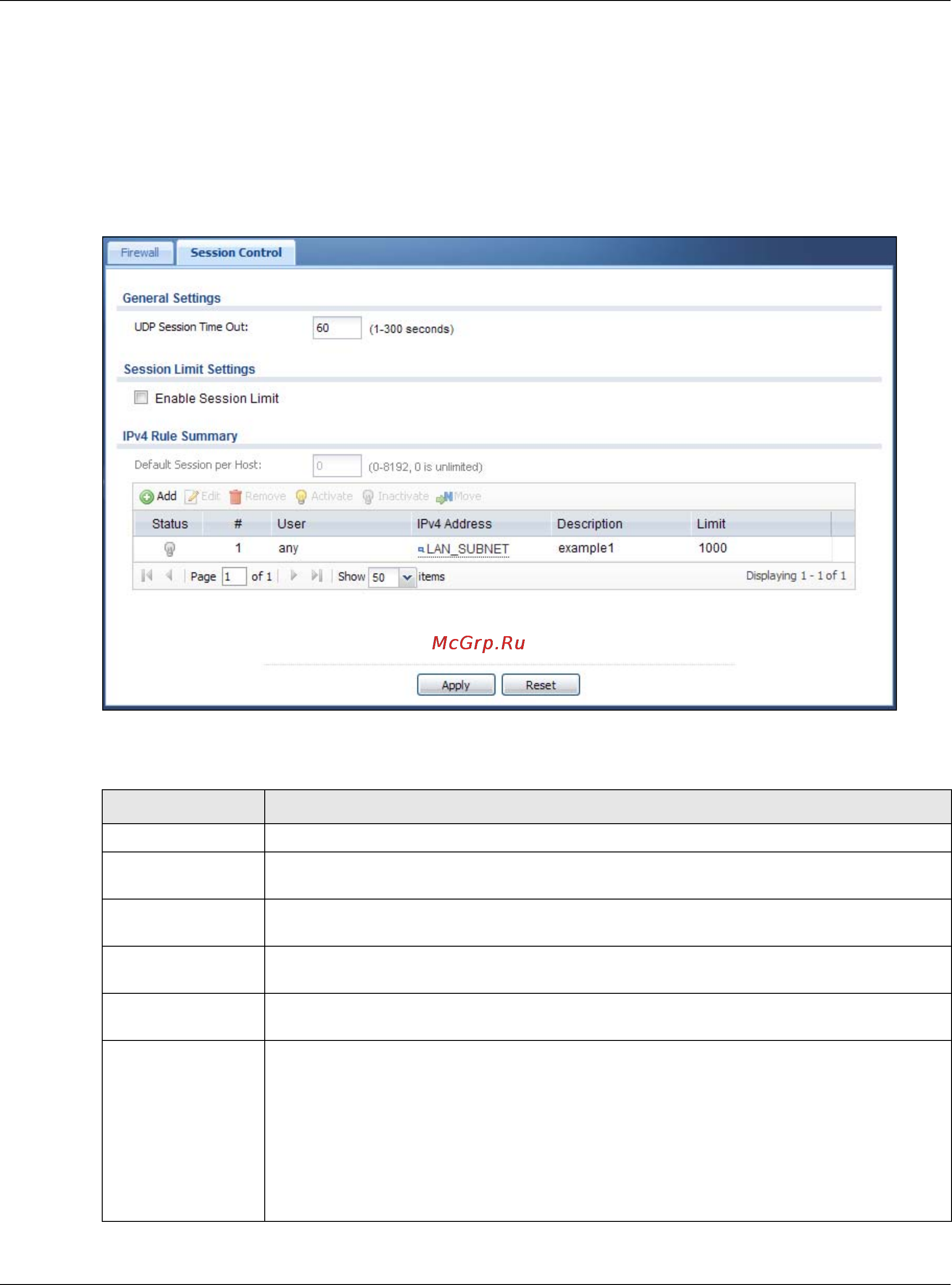

Figure 106 Configuration > Firewall > Session Control
The following table describes the labels in this screen.
Table 94 Configuration > Firewall > Session Control
LABEL DESCRIPTION
General Settings
UDP Session Time
Out
Set how many seconds (from 1 to 300) the NXC will allow a UDP session to remain idle
(without UDP traffic) before closing it.
Session Limit
Settings
Enable Session
limit
Select this check box to control the number of concurrent sessions hosts can have.
IPv4 Rule
Summary
This table lists the rules for limiting the number of concurrent sessions hosts can have.
Default Session per
Host
This field is configurable only when you enable session limit.
Use this field to set a common limit to the number of concurrent NAT/firewall sessions
each client computer can have.
If only a few clients use peer to peer applications, you can raise this number to improve
their performance. With heavy peer to peer application use, lower this number to ensure
no single client uses too many of the available NAT sessions.
Create rules below to apply other limits for specific users or addresses.
