Chapter 3 The Web Configurator
NXC Series User’s Guide
30

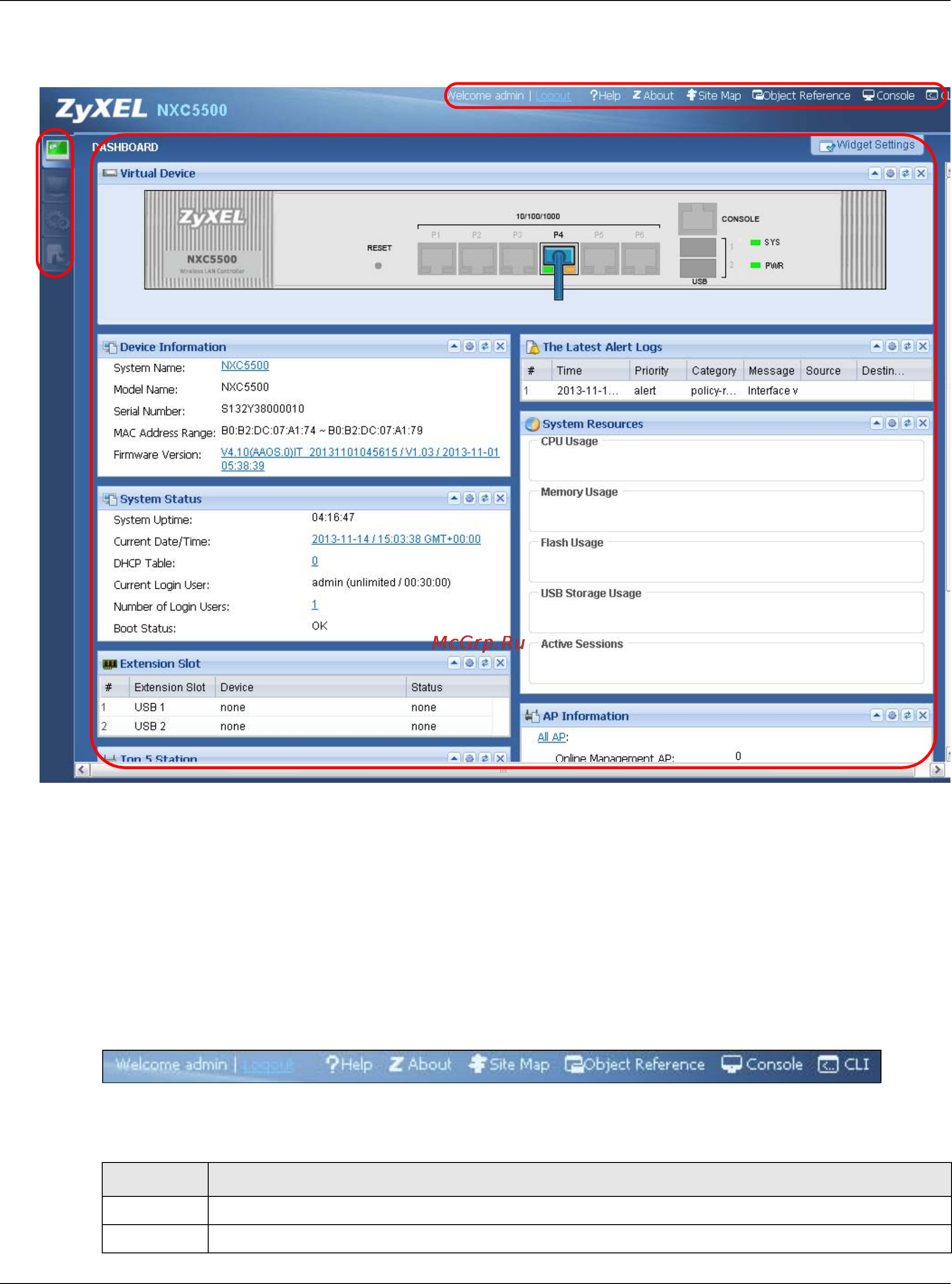

Figure 8 The Web Configurator’s Main Screen
• A - Title Bar
• B - Navigation Panel
• C - Main Window
3.3.1 Title Bar
The title bar provides some useful links that always appear over the screens below, regardless of
how deep into the Web Configurator you navigate.
Figure 9 Title Bar
The icons provide the following functions.
A
C
B
Table 9 Title Bar: Web Configurator Icons
LABEL DESCRIPTION
Logout Click this to log out of the Web Configurator.
Help Click this to open the help page for the current screen.
