Chapter 8 Interfaces
NXC Series User’s Guide
124
Figure 64 Configuration > Network > Interface > Ethernet > Edit > Add DHCPv6 Request Options
8.2.4 Add/Edit DHCP Extended Options
When you configure an interface as a DHCPv4 server, you can additionally add DHCP extended
options which have the NXC to add more information in the DHCP packets. The available fields vary
depending on the DHCP option you select in this screen. To open the screen, click Configuration >
Network > Interface > Ethernet > Edit, select DHCP Server in the DHCP Setting section, and
then click Add or Edit in the Extended Options table.

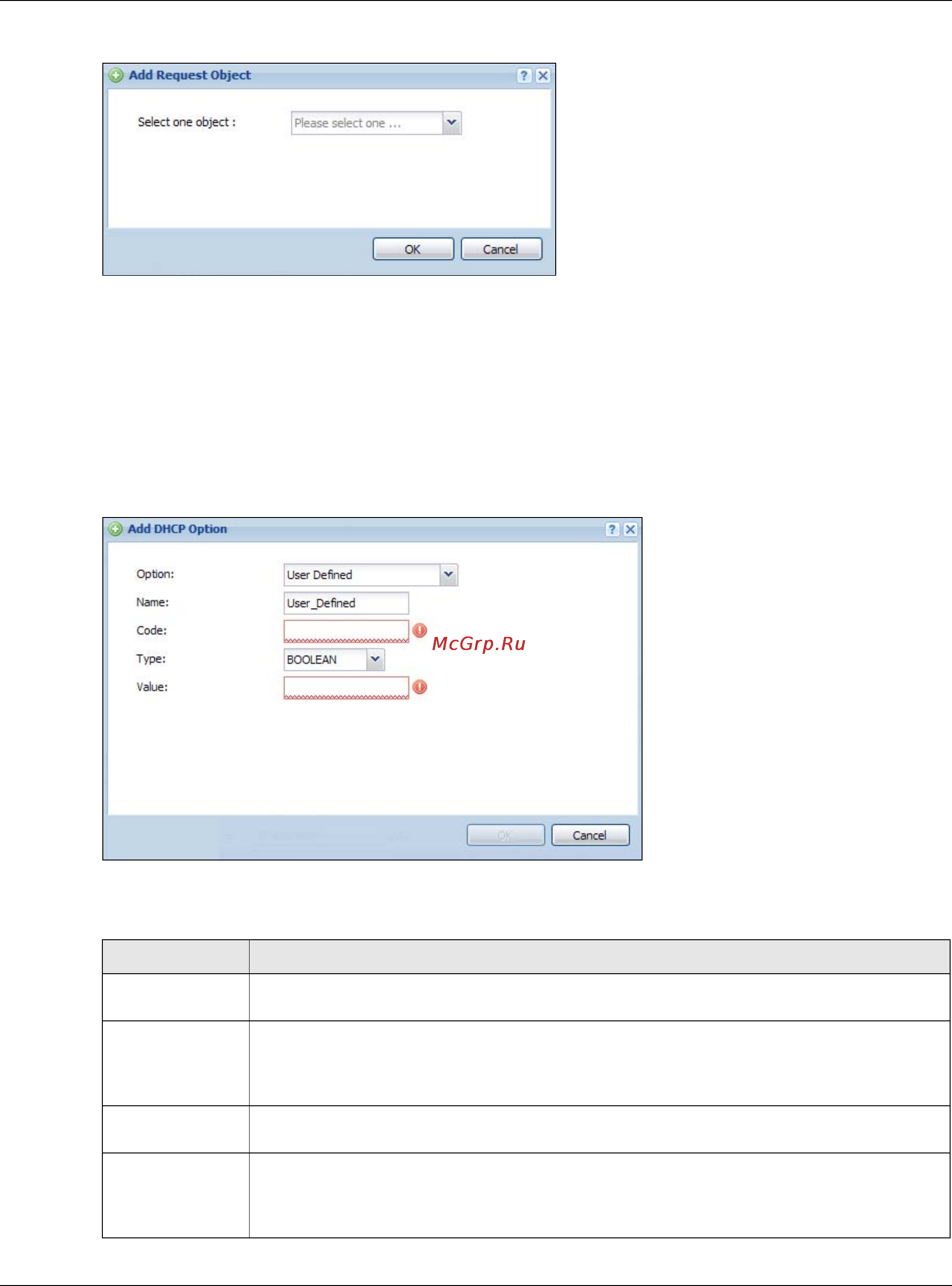

Figure 65 Configuration > Network > Interface > Ethernet > Edit > Add/Edit Extended Options
The following table describes labels that can appear in this screen.
Table 61 Configuration > Network > Interface > Ethernet > Edit > Add/Edit Extended Options
LABEL DESCRIPTION
Option Select which DHCP option that you want to add in the DHCP packets sent through the
interface. See Table 62 on page 125 for more information.
Name This field displays the name of the selected DHCP option. If you selected User Defined in
the Option field, enter a descriptive name to identify the DHCP option. You can enter up
to 16 characters (“a-z”, “A-Z, “0-9”, “-”, and “_”) with no spaces allowed. The first
character must be alphabetical (a-z, A-Z).
Code This field displays the code number of the selected DHCP option. If you selected User
Defined in the Option field, enter a number for the option. This field is mandatory.
Type This is the type of the selected DHCP option. If you selected User Defined in the Option
field, select an appropriate type for the value that you will enter in the next field. Only
advanced users should configure User Defined. Misconfiguration could result in interface
lockout.
