Appendix C Importing Certificates
NXC Series User’s Guide
423
Firefox
The following example uses Mozilla Firefox 2 on Windows XP Professional; however, the screens can
also apply to Firefox 2 on all platforms.

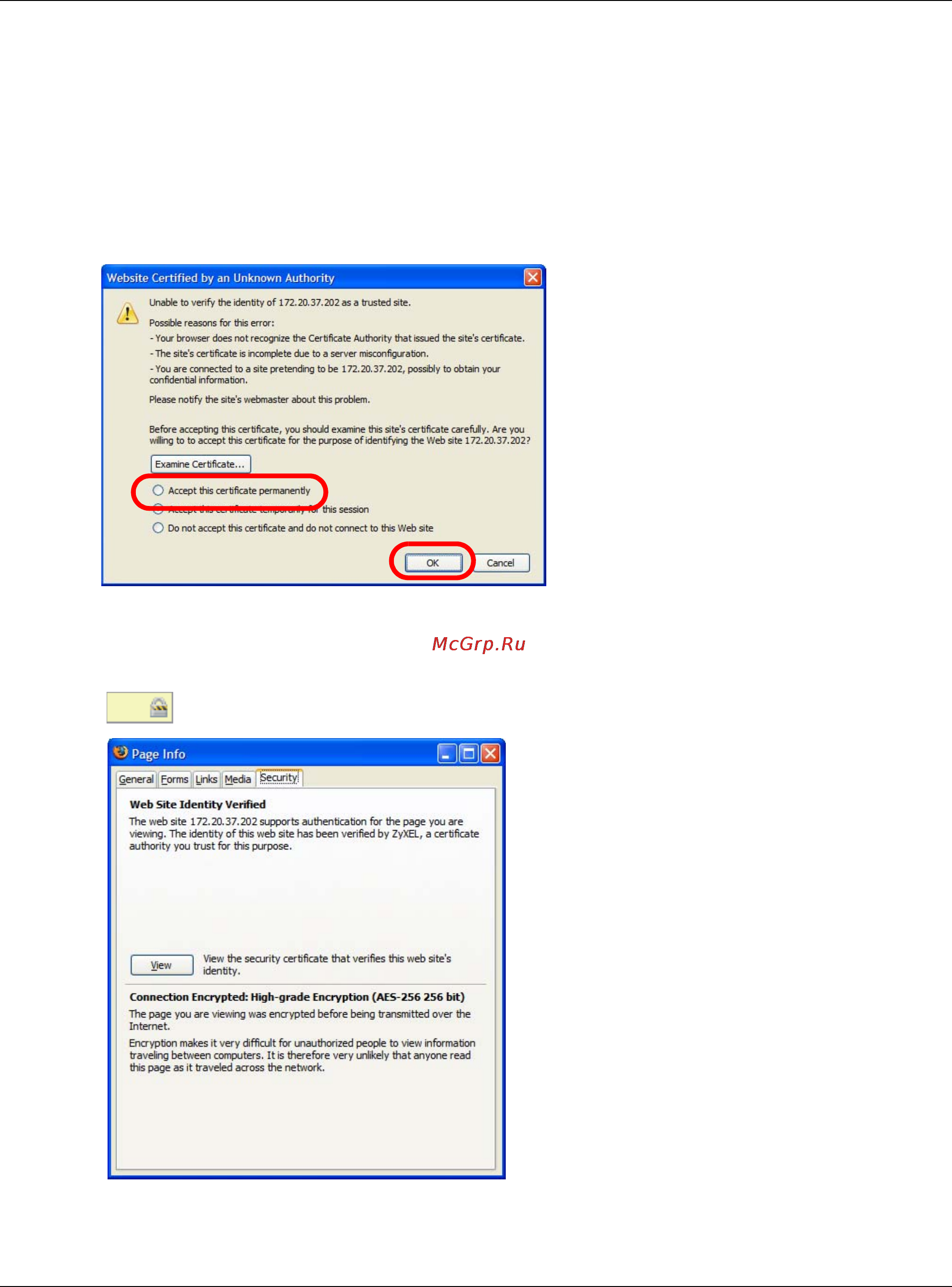

1 If your device’s Web Configurator is set to use SSL certification, then the first time you browse to it
you are presented with a certification error.
2 Select Accept this certificate permanently and click OK.
3 The certificate is stored and you can now connect securely to the Web Configurator. A sealed
padlock appears in the address bar, which you can click to open the Page Info > Security window
to view the web page’s security information.
