Zyxel NXC5500 [144/469] Static route

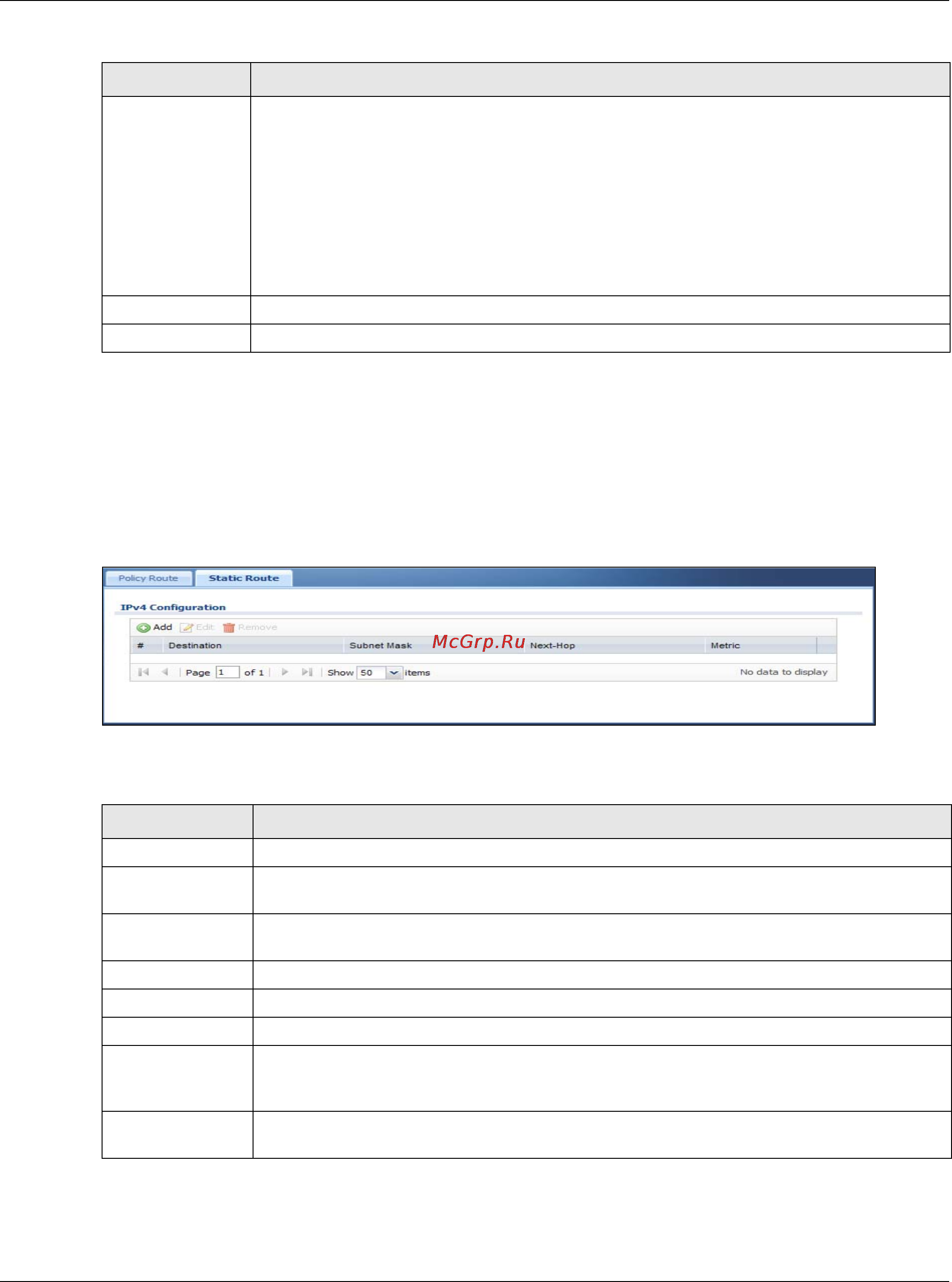

![Zyxel NXC5500 [144/469] Static route](/views2/1169015/page144/bg90.png)
Chapter 9 Policy and Static Routes
NXC Series User’s Guide
144
9.3 Static Route
Click Configuration > Network > Routing > Static Route to open the Static Route screen.
This screen displays the configured static routes.
Figure 72 Configuration > Network > Routing > Static Route
The following table describes the labels in this screen.
Source Network
Address
Translation
Select none to not use NAT for the route.
Select outgoing-interface to use the IP address of the outgoing interface as the source
IP address of the packets that matches this route. If you select outgoing-interface, you
can also configure port trigger settings for this interface.
Otherwise, select a pre-defined address (group) to use as the source IP address(es) of the
packets that match this route.
Use Create new Object if you need to configure a new address (group) to use as the
source IP address(es) of the packets that match this route.
OK Click OK to save your changes back to the NXC.
Cancel Click Cancel to exit this screen without saving.
Table 68 Configuration > Network > Routing > Policy Route > Add/Edit (continued)
LABEL DESCRIPTION
Table 69 Configuration > Network > Routing > Static Route
LABEL DESCRIPTION
Add Click this to create a new static route.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The NXC confirms you want to remove it
before doing so.
# This is the number of an individual static route.
Destination This is the destination IP address.
Subnet Mask This is the IP subnet mask.
Next-Hop This is the IP address of the next-hop gateway or the interface through which the traffic is
routed. The gateway is a router or switch on the same segment as your NXC's
interface(s). The gateway helps forward packets to their destinations.
Metric This is the route’s priority among the NXC’s routes. The smaller the number, the higher
priority the route has.
