Chapter 18 AP Profile
NXC Series User’s Guide
227
18.3.3 MAC Filter List
This screen allows you to create and manage MAC filtering profiles that can be used by your SSIDs.
To access this screen click Configuration > Object > AP Profile > SSID > MAC Filter List.
Note: You can have a maximum of 32 MAC filtering profiles on the NXC.

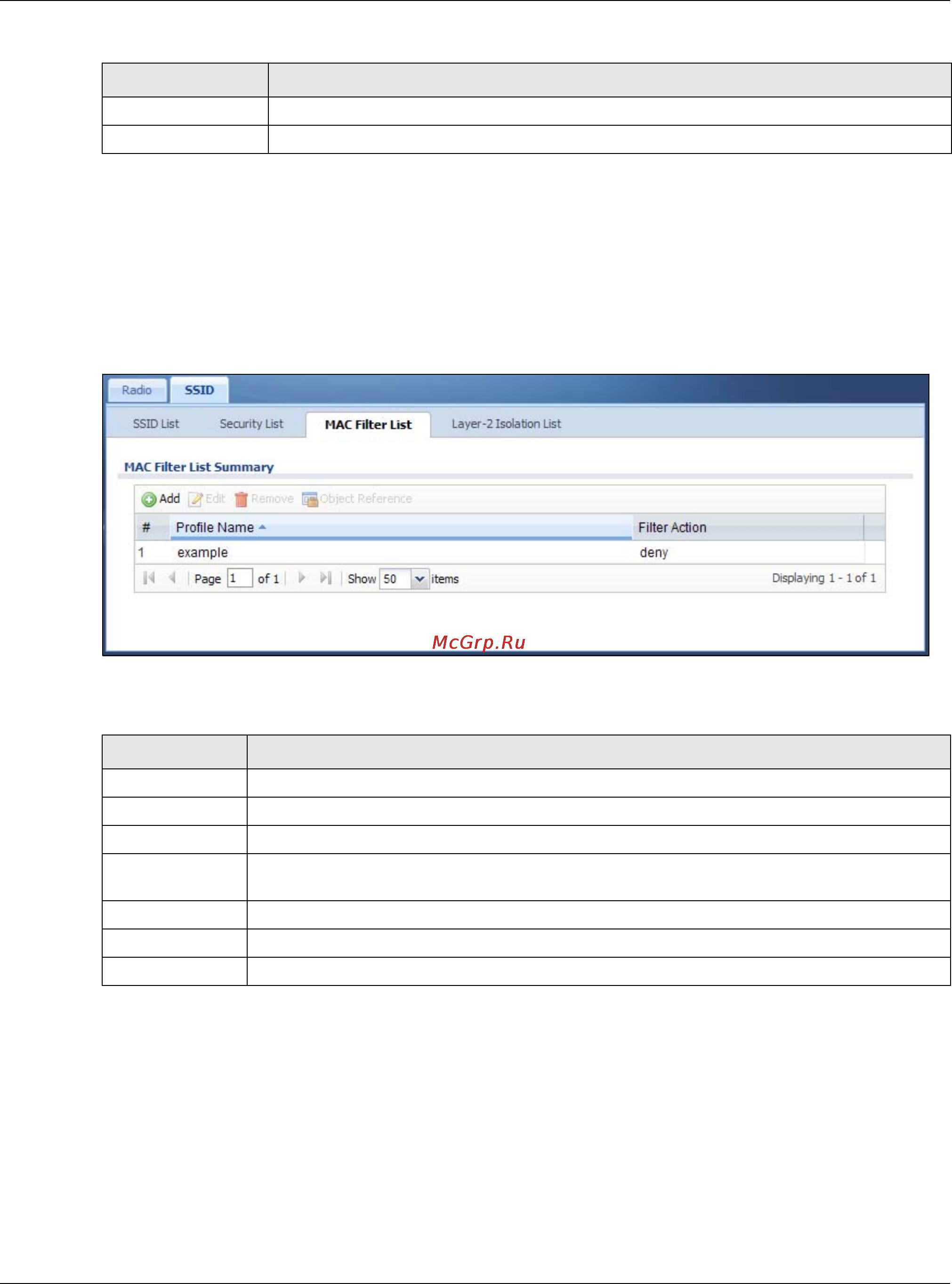

Figure 127 Configuration > Object > AP Profile > SSID > MAC Filter List
The following table describes the labels in this screen.
18.3.3.1 Add/Edit MAC Filter Profile
This screen allows you to create a new MAC filtering profile or edit an existing one. To access this
screen, click the Add button or select a MAC filtering profile from the list and click the Edit button.
OK Click OK to save your changes back to the NXC.
Cancel Click Cancel to exit this screen without saving your changes.
Table 114 Configuration > Object > AP Profile > SSID > Security Profile > Add/Edit Security Profile
LABEL DESCRIPTION
Table 115 Configuration > Object > AP Profile > SSID > MAC Filter List
LABEL DESCRIPTION
Add Click this to add a new MAC filtering profile.
Edit Click this to edit the selected MAC filtering profile.
Remove Click this to remove the selected MAC filtering profile.
Object Reference Click this to view which other objects are linked to the selected MAC filtering profile (for
example, SSID profile).
# This field is a sequential value, and it is not associated with a specific profile.
Profile Name This field indicates the name assigned to the MAC filtering profile.
Filter Action This field indicates this profile’s filter action (if any).
