Chapter 17 User/Group
NXC Series User’s Guide
208

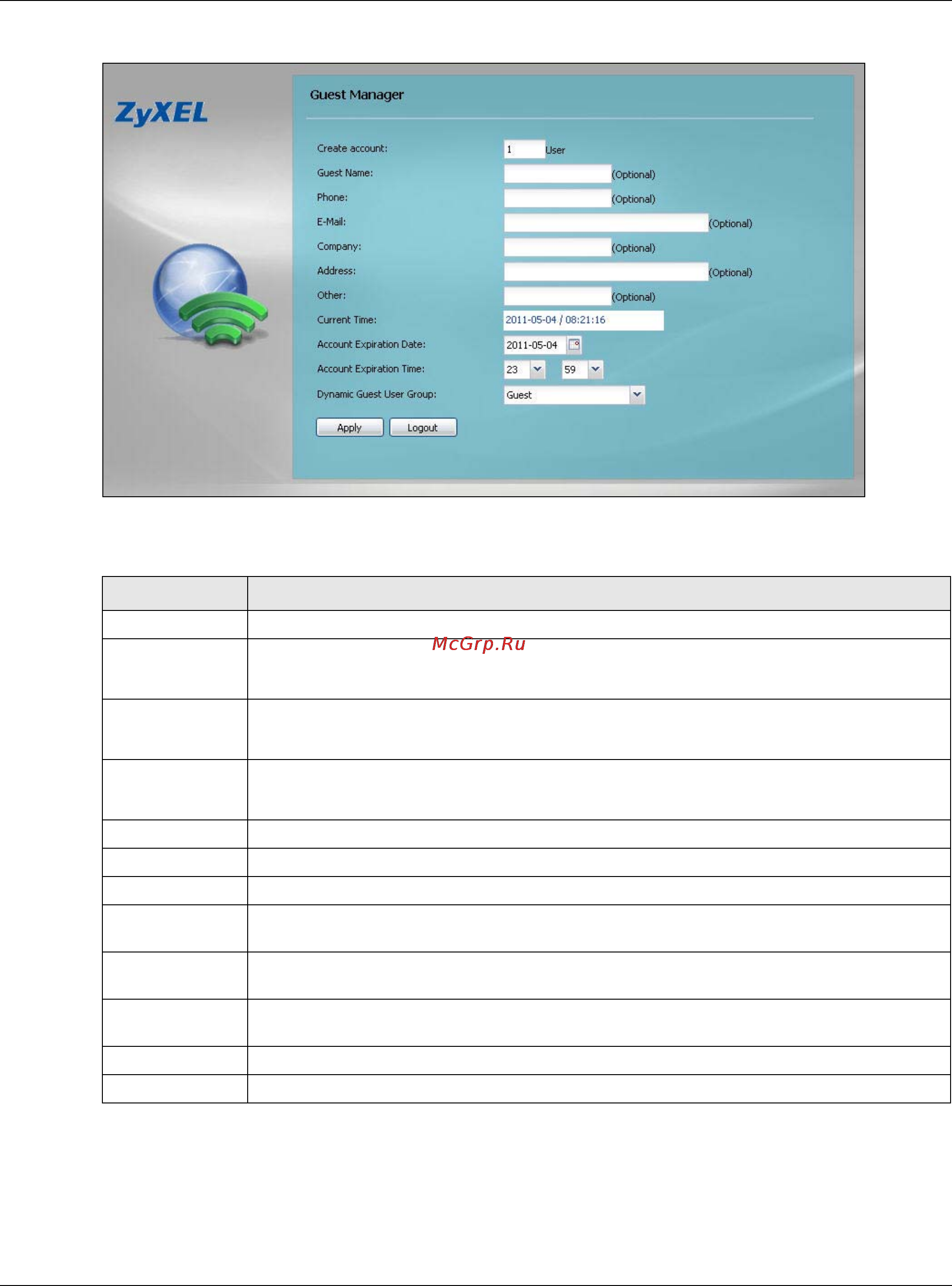

Figure 116 Guest Manager Login
The following table describes the labels in this screen.
17.4.4.1 Guest Account List
After you click Apply to create dynamic guest accounts, the following guest account list screen
appears.
Table 105 Guest Manager Login
LABEL DESCRIPTION
Create account Enter the number (up to 32) of dynamic guest accounts you want to create.
Guest Name This field is available only when you want to create one account.
Enter the name for the guest account.
Phone This field is available only when you want to create one account.
Enter the telephone number for the guest account.
E-mail This field is available only when you want to create one account.
Enter the E-mail address for the guest account.
Company Enter the company name (up to 64 characters) for the guest account(s).
Address Enter the geographic address (up to 64 characters) for the guest account(s).
Other Enter the additional information (up to 60 characters) for the guest account(s).
Account
Expiration Date
Select the date when the account(s) becomes invalid.
Account
Expiration Time
Select the time when the account(s) becomes invalid.
Dynamic Guest
User Group
Select the dynamic guest group with which the dynamic guest account(s) is associated.
Apply Click this icon to create the account(s).
Logout Click this icon to exit and go back to the Web Configurator login screen.
