Chapter 2 Hardware Installation and Connection
NXC Series User’s Guide
24
Ethernet Ports
The auto-negotiating, auto-crossover Ethernet ports support 10/100/1000 Mbps Gigabit Ethernet
so the speed can be 10 Mbps, 100 Mbps or 1000 Mbps. The duplex mode can be both half or full
duplex at 10/100 Mbps and full duplex only at 1000 Mbps. An auto-negotiating port can detect and
adjust to the optimum Ethernet speed and duplex mode of the connected device.
An auto-crossover (auto-MDI/MDI-X) port automatically works with a straight-through or crossover
Ethernet cable.
Default Ethernet Settings
The factory default negotiation settings for the Ethernet ports on the NXC are:
• Speed: Auto
•Duplex: Auto
• Flow control: On (you cannot configure the flow control setting, but the NXC can negotiate with
the peer and turn it off if needed)
Console Port (NXC5500 Only)
Connect this port to your computer (using an RJ-45-to-DB-9 console cable) if you want to configure
the NXC using the command line interface (CLI) via the console port.
For local management, you can use a computer with terminal emulation software configured to the
following parameters:
• VT100 terminal emulation
• 115200 bps
• No parity, 8 data bits, 1 stop bit
• No flow control
Connect the RJ-45 connector of the console cable to the console port of the NXC. Connect the
female 9-pin end of the console cable to a serial port (COM1, COM2 or other COM port) of your
computer.

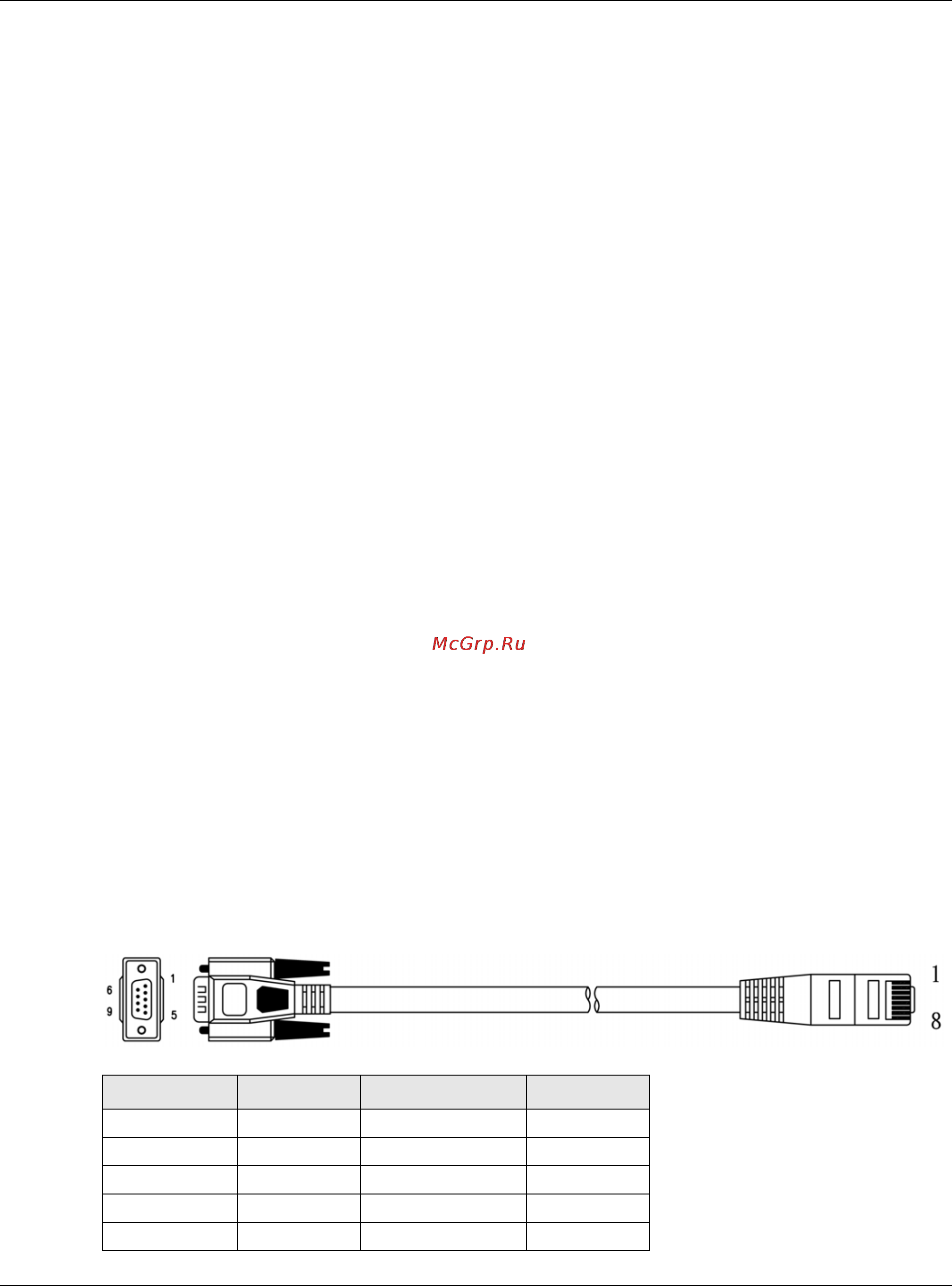

The following table shows you the wire color codes and pin assignment for the console cable.
Table 6 RJ-45-to-DB-9 Console Cable Color Codes
DB-9 SIGNAL DB-9 PIN# WIRE COLOR RJ45 PIN#
CTS 8 White/Orange 1
DSR/DCD 6+1 Orange 2
RD 2 White/Green 3
GND 5 Blue 4
GND 5 White/Blue 5
