Chapter 31 Diagnostics
NXC Series User’s Guide
355

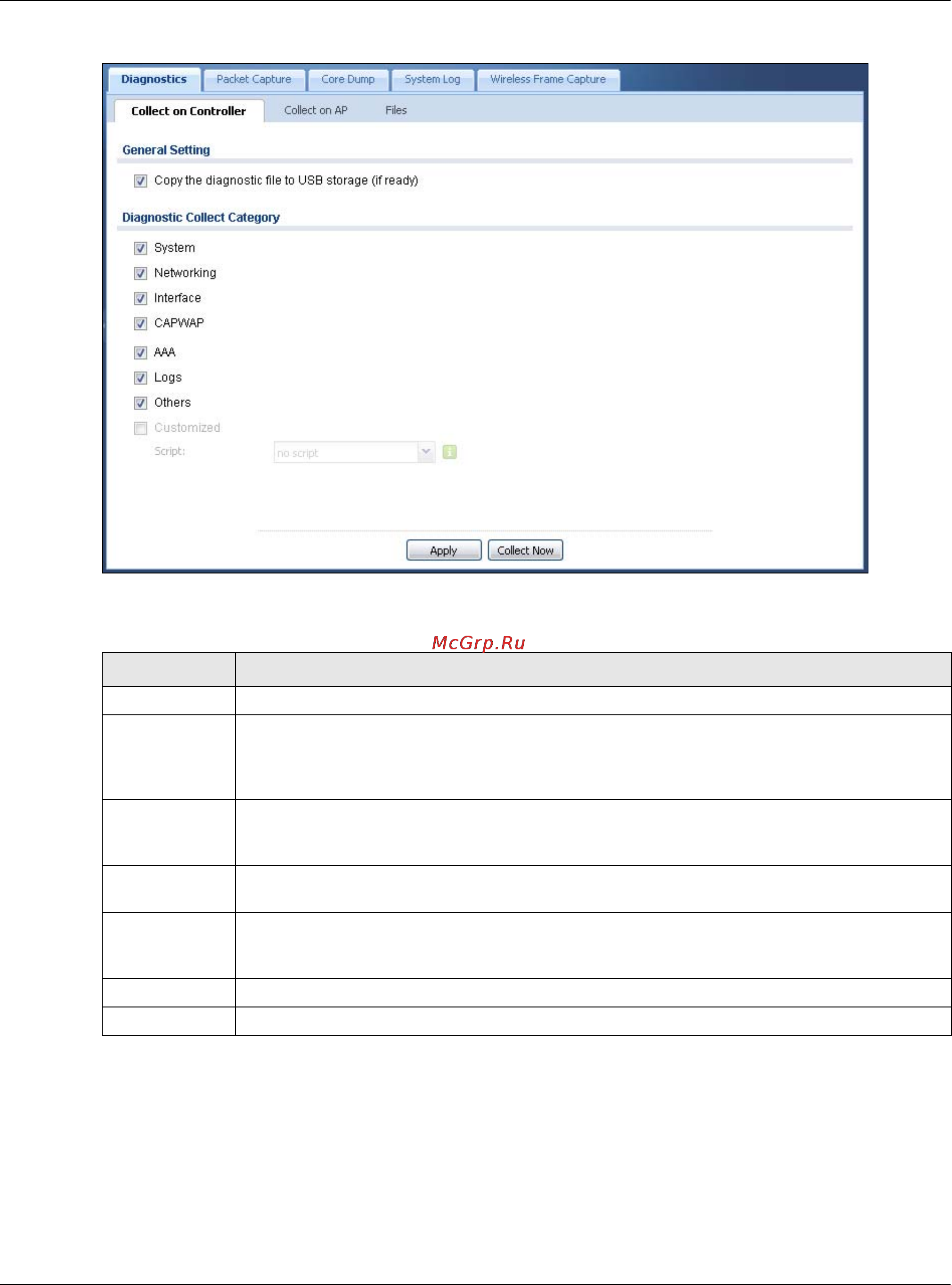

Figure 210 Maintenance > Diagnostics > Collect on Controller
The following table describes the labels in this screen.
31.2.1 Diagnostics - AP Configuration
This screen provides an easy way for you to generate a file containing the selected managed AP’s
configuration and diagnostic information. You may need to generate this file and send it to
customer support during troubleshooting.
Click Maintenance > Diagnostics > Collect on AP to open the Diagnostic screen.
Table 182 Maintenance > Diagnostics > Collect on Controller
LABEL DESCRIPTION
General Setting
Copy the
diagnostic file
to USB storage
(if ready)
Select this to have the NXC create an extra copy of the diagnostic file to a connected USB
storage device.
Diagnostic
Collect
Category
This field displays each category of settings. Select which categories you want the NXC to
include in the diagnostic file.
Customized Select this option to obtain the diagnostic information for configuration which is not included
in a pre-defined category.
Script If you select the Customized option, select a shell script file from the drop-down list. You
can upload a new shell script file using the Maintenance > File Manager > Shell Script
screen.
Apply Click Apply to save your changes.
Collect Now Click this to have the NXC create a new diagnostic file.
