Chapter 19 MON Profile
NXC Series User’s Guide
233

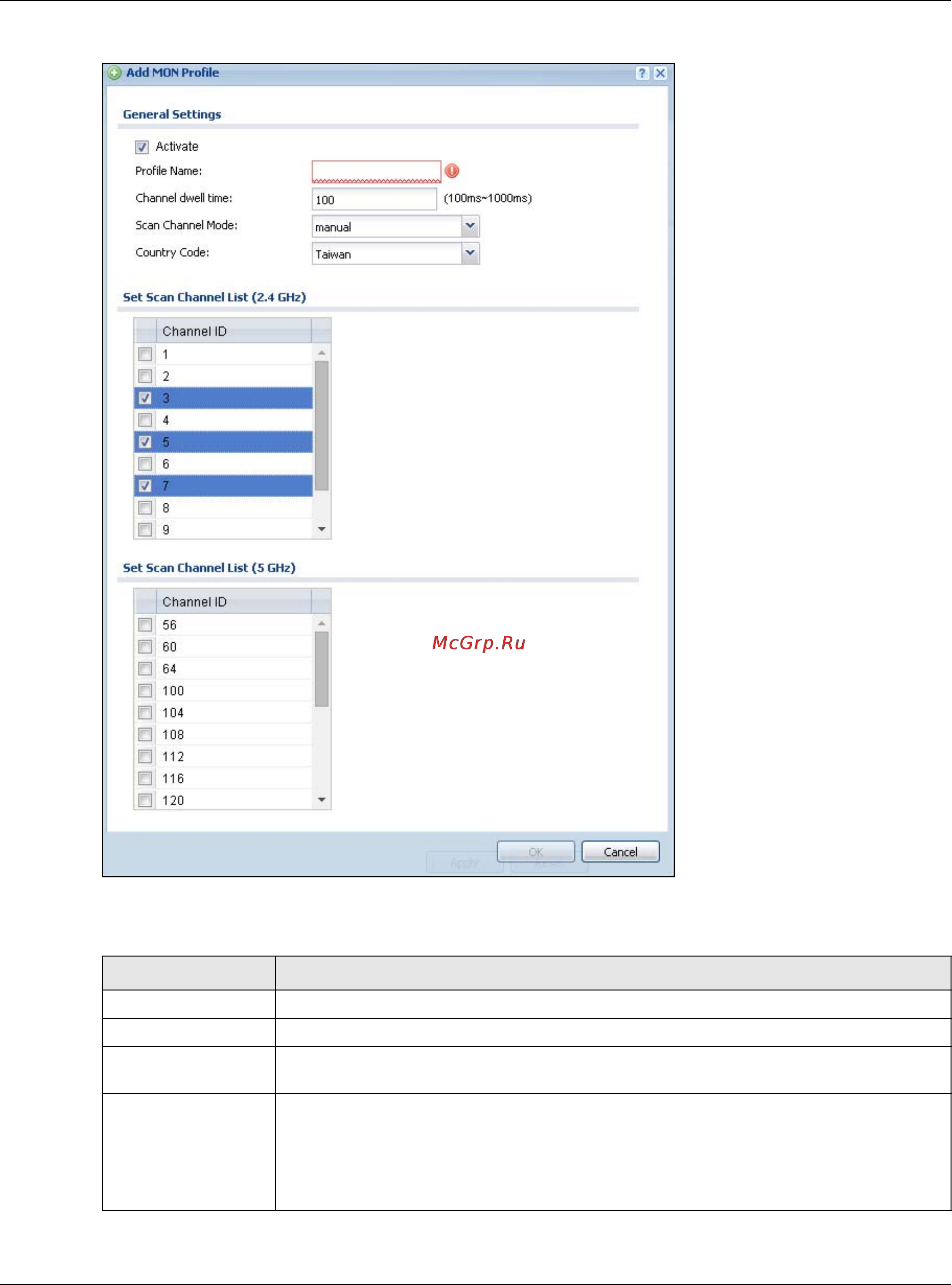

Figure 132 Configuration > Object > MON Profile > Add/Edit MON Profile
The following table describes the labels in this screen.
Table 120 Configuration > Object > MON Profile > Add/Edit MON Profile
LABEL DESCRIPTION
Activate Select this to activate this monitor mode profile.
Profile Name This field indicates the name assigned to the monitor mode profile.
Channel dwell time Enter the interval (in milliseconds) before the AP switches to another channel for
monitoring.
Scan Channel Mode Select auto to have the AP switch to the next sequential channel once the Channel
dwell time expires.
Select manual to set specific channels through which to cycle sequentially when the
Channel dwell time expires. Selecting this options makes the Scan Channel List
options available.
