Chapter 17 User/Group
NXC Series User’s Guide
200
17.3 Group Summary
User groups consist of access users and other user groups. You cannot put admin users in user
groups. The Group screen provides a summary of all user groups. In addition, this screen allows
you to add, edit, and remove user groups. To access this screen, login to the Web Configurator, and
click Configuration > Object > User/Group > Group.

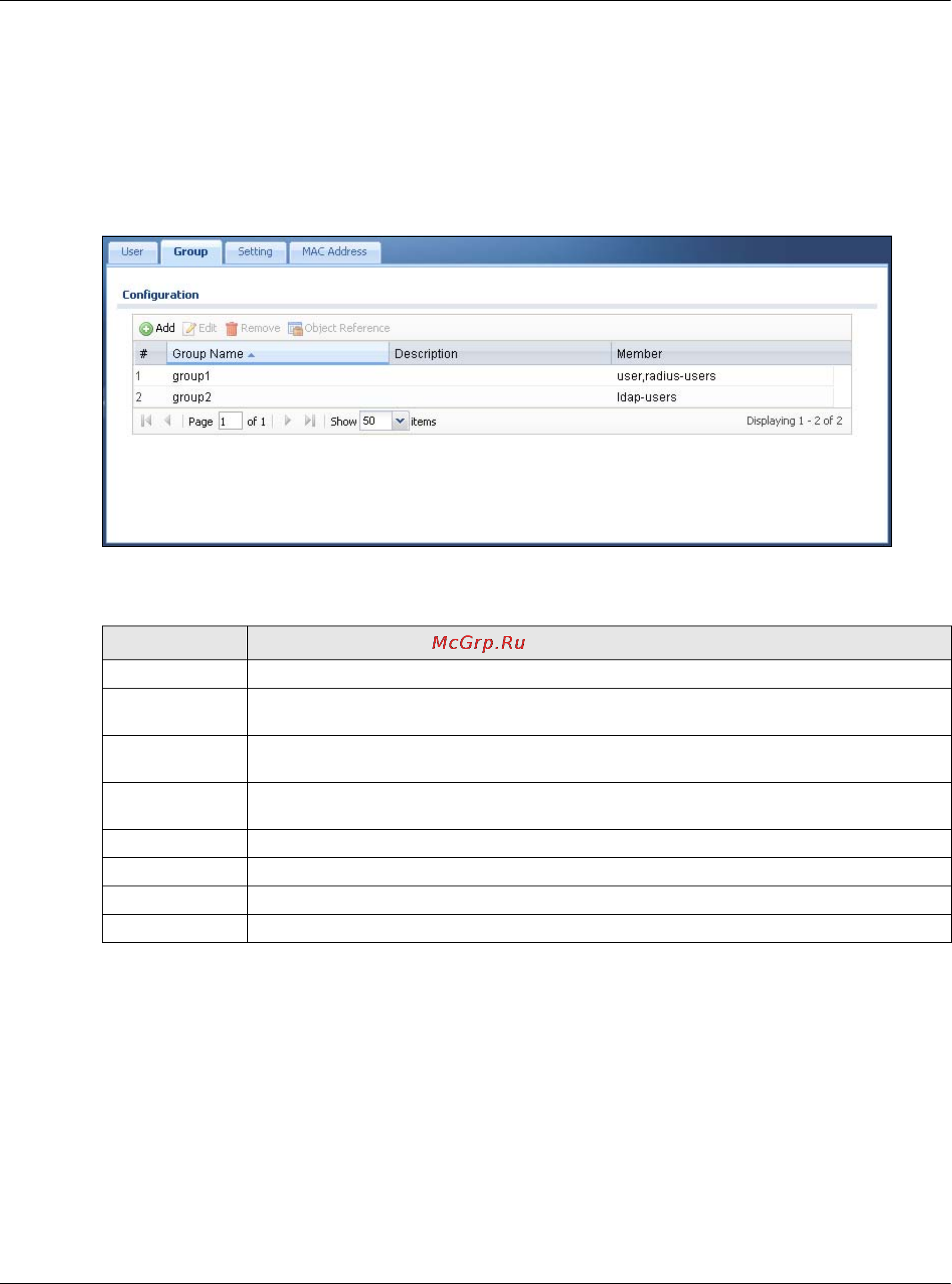

Figure 110 Configuration > Object > User/Group > Group
The following table describes the labels in this screen.
17.3.1 Add/Edit Group
This screen allows you to add a new user group or edit an existing one. To access this screen, go to
the Group screen, and click either the Add icon or an Edit icon.
Table 99 Configuration > Object > User/Group > Group
LABEL DESCRIPTION
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The NXC confirms you want to remove it
before doing so. Removing a group does not remove the user accounts in the group.
Object Reference Select an entry and click Object Reference to open a screen that shows which settings
use the entry.
# This field is a sequential value, and it is not associated with a specific user group.
Group Name This field displays the name of each user group.
Description This field displays the description for each user group.
Member This field lists the members in the user group. Each member is separated by a comma.
