Chapter 5 Monitor
NXC Series User’s Guide
71
5.11 AP List
Use this screen to view which APs are currently connected to the NXC. To access this screen, click
Monitor > Wireless > AP Information > AP List.

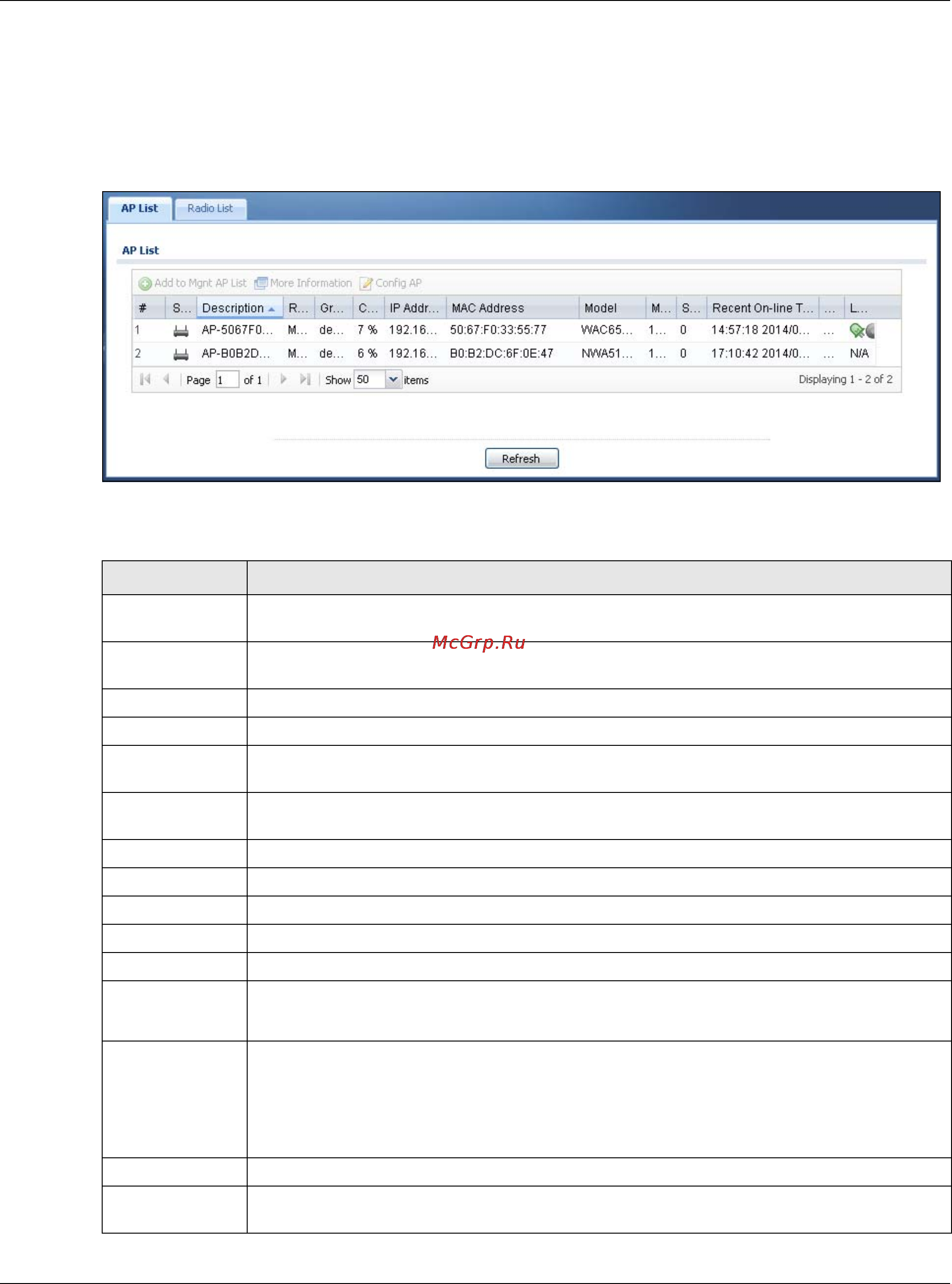

Figure 33 Monitor > Wireless > AP Information > AP List
The following table describes the labels in this screen.
Table 34 Monitor > Wireless > AP Information > AP List
LABEL DESCRIPTION
Add to Mgnt AP
List
Click this to add the selected AP to the managed AP list.
More
Information
Click this to view a daily station count about the selected AP. The count records station
activity on the AP over a consecutive 24 hour period.
Config AP Click this to change the selected AP’s group, radio, VLAN and port settings.
# This is the AP’s index number in this list.
Status This visually displays the AP’s connection status with icons. For details on the different
Status states, see the next table.
Description This displays the AP’s associated description. The default description is “AP-” + the AP’s
MAC Address.
Registration This indicates whether the AP is registered with the managed AP list.
Group This displays the name of the AP group to which the AP belongs.
CPU Usage This displays what percentage of the AP’s processing capability is currently being used.
IP Address This displays the AP’s IP address.
MAC Address This displays the AP’s MAC address.
Model This displays the AP’s model number.
This field displays n/a if the NXC cannot get model information from the AP.
Mgnt. VLAN
ID(AC/AP)
This displays the Access Controller (the NXC) management VLAN ID setting for the AP and
the runtime management VLAN ID setting on the AP.
VLAN Conflict displays if the AP’s management VLAN ID does not match the NXC’s
management VLAN ID setting for the AP. This field displays n/a if the NXC cannot get
VLAN information from the AP.
Station This displays the number of stations (aka wireless clients) associated with the AP.
Recent On-line
Time
This displays the most recent time the AP came on-line. N/A displays if the AP has not
come on-line since the NXC last started up.
