Chapter 3 The Web Configurator
NXC Series User’s Guide
29

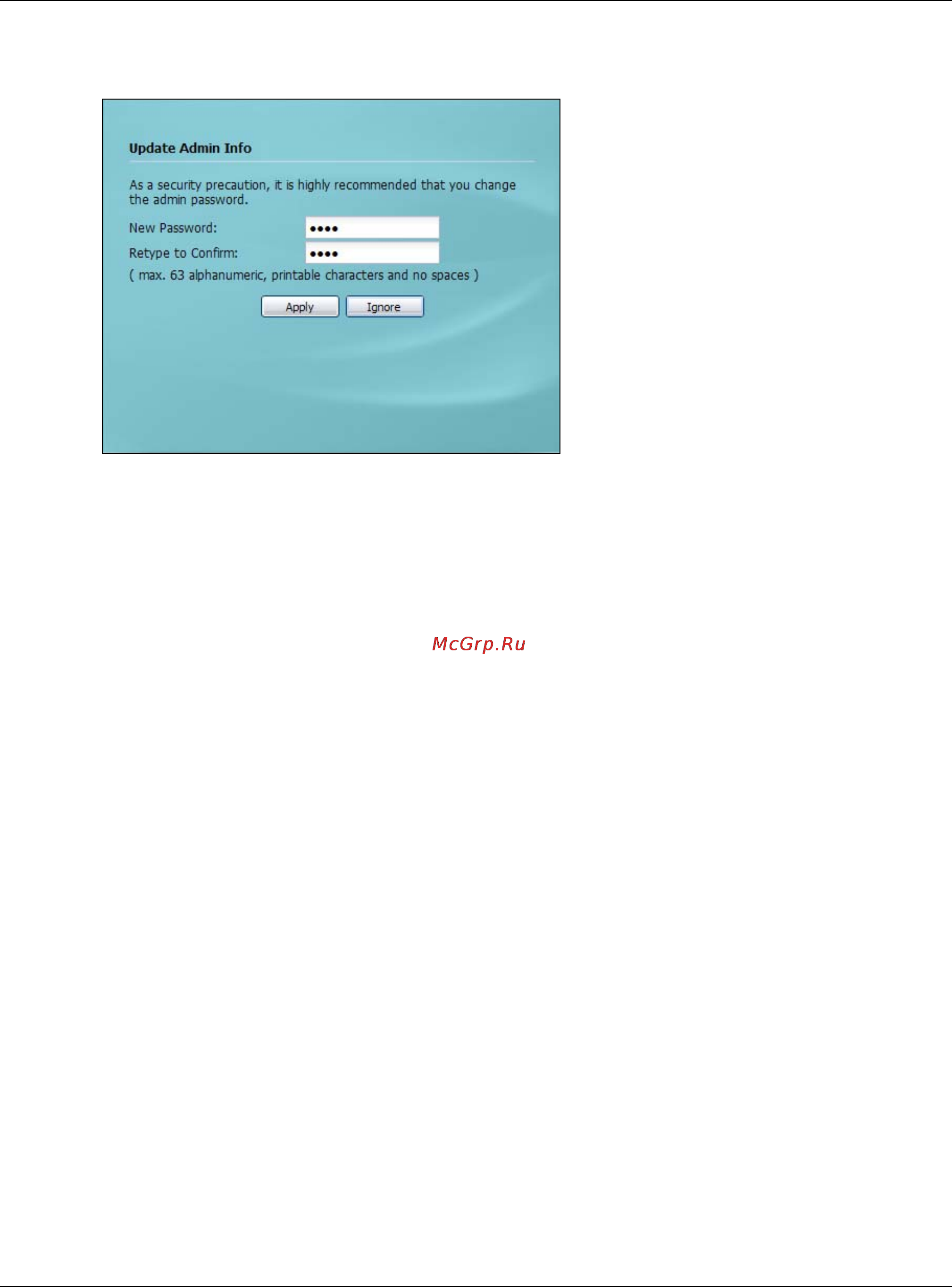

4 Click Login. If you logged in using the default user name and password, the Update Admin Info
screen appears. Otherwise, the dashboard appears.
This screen appears every time you log in using the default user name and default password. If you
change the password for the default user account, this screen does not appear anymore.
3.3 The Main Screen
This guide uses the NXC5500 screens as an example. The screens may vary slightly for different
models.
The Web Configurator’s main screen is divided into these parts:
