Chapter 22 Services
NXC Series User’s Guide
248
22.3 Service Group Summary
The Service Group summary screen provides a summary of all service groups. In addition, this
screen allows you to add, edit, and remove service groups.
To access this screen, log in to the Web Configurator, and click Configuration > Object > Service
> Service Group.

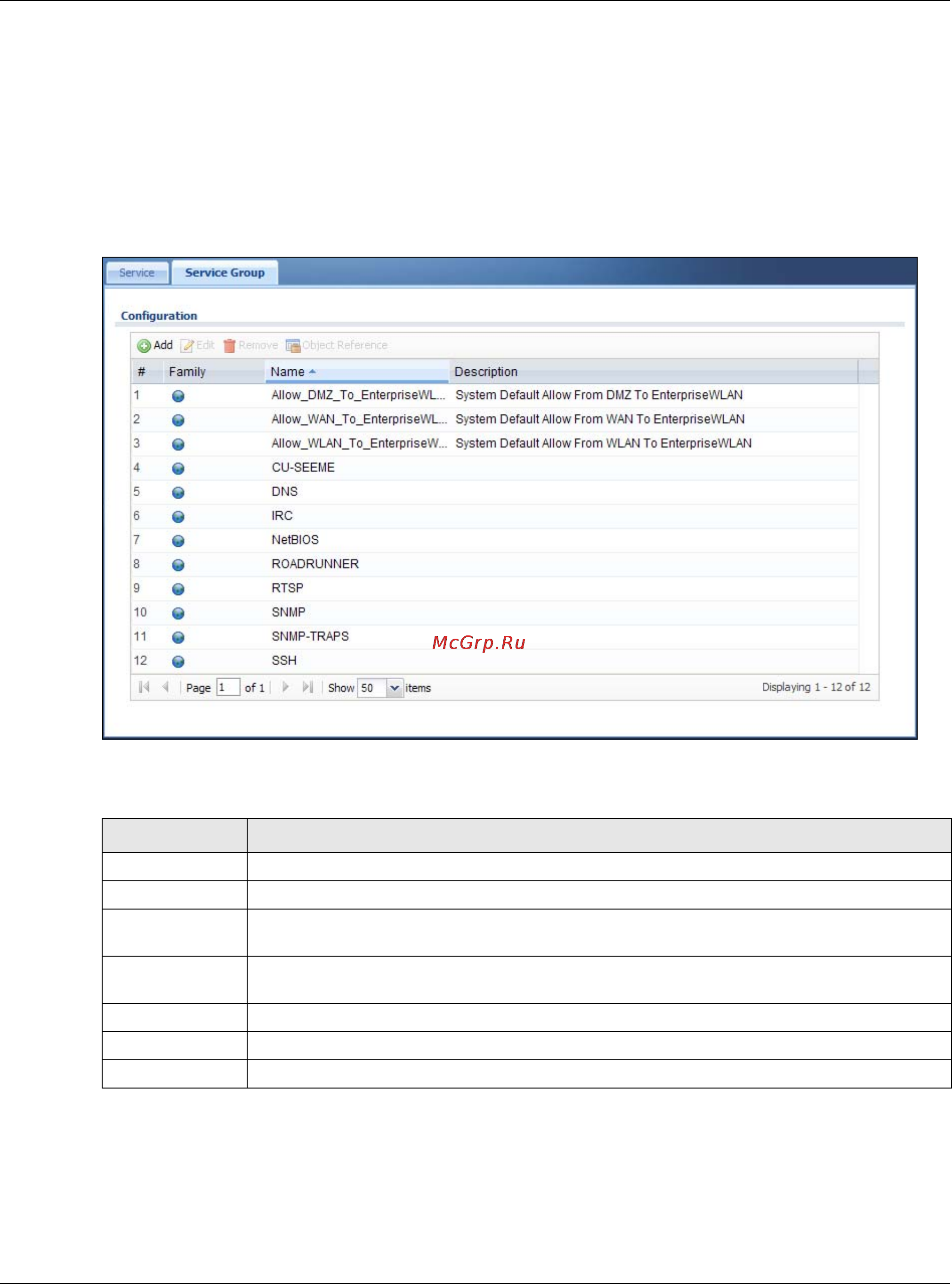

Figure 142 Configuration > Object > Service > Service Group
The following table describes the labels in this screen.
22.3.1 Add/Edit Service Group Rule
The Add/Edit Service Group Rule screen allows you to create a new service group or edit an
existing one. To access this screen, go to the Service Group screen and click either the Add icon
or an Edit icon.
Table 129 Configuration > Object > Service > Service Group
LABEL DESCRIPTION
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The NXC confirms you want to remove it
before doing so.
Object Reference Select an entry and click Object Reference to open a screen that shows which settings
use the entry.
# This field is a sequential value, and it is not associated with a specific service group.
Name This field displays the name of each service group.
Description This field displays the description of each service group, if any.
