Chapter 3 The Web Configurator
NXC Series User’s Guide
36
5 If your login is successful, the command line appears and the status bar at the bottom of the
Console updates to reflect your connection state.
CLI Messages
Click CLI to look at the CLI commands sent by the Web Configurator. These commands appear in a
popup window, such as the following.

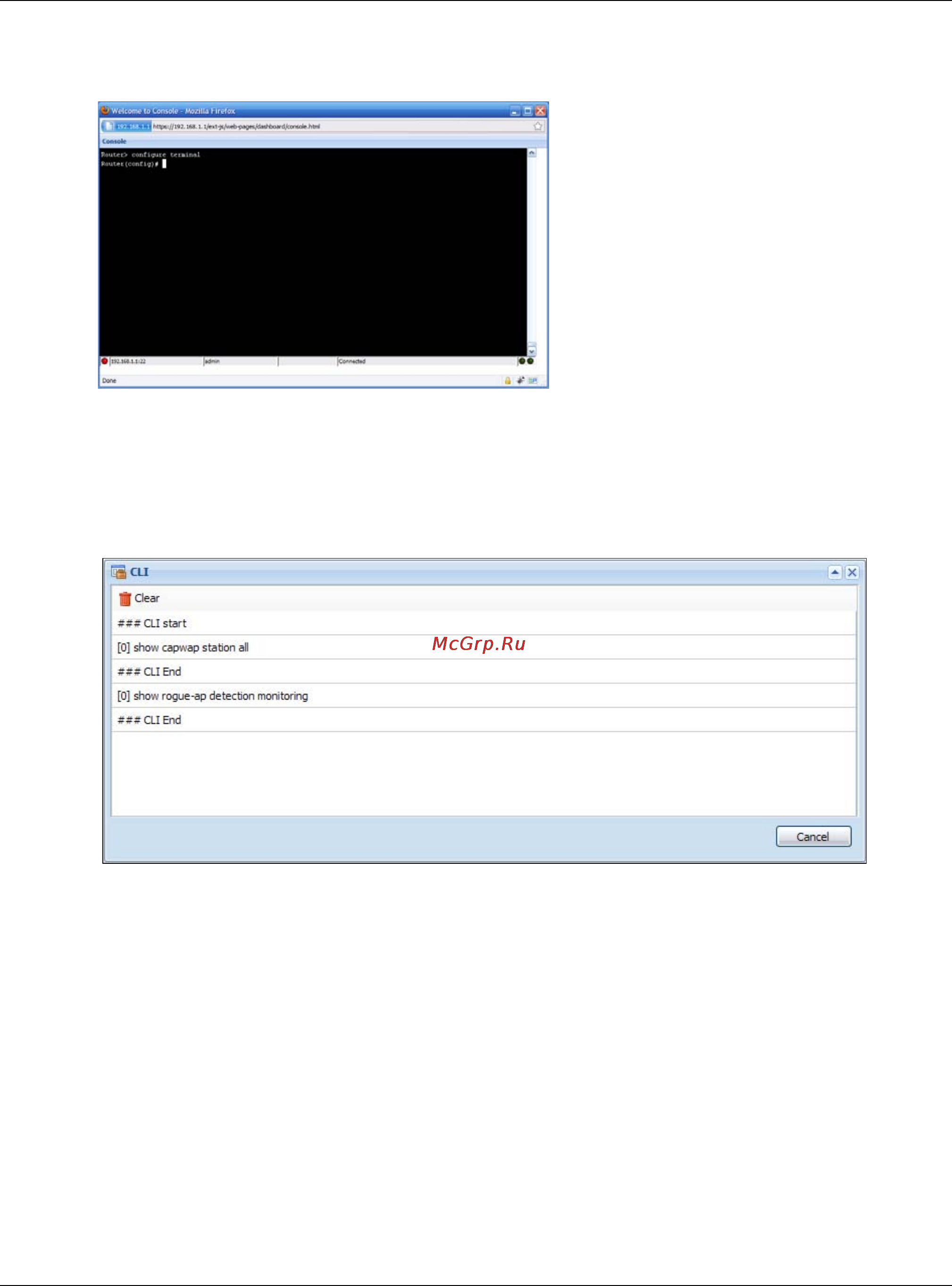

Figure 14 CLI Messages
Click Clear to remove the currently displayed information.
See the Command Reference Guide for information about the commands.
