Chapter 7 Wireless
NXC Series User’s Guide
94
7.3 AP Management
Use this screen to manage all of the APs connected to the NXC. Click Configuration > Wireless >
AP Management to access this screen.

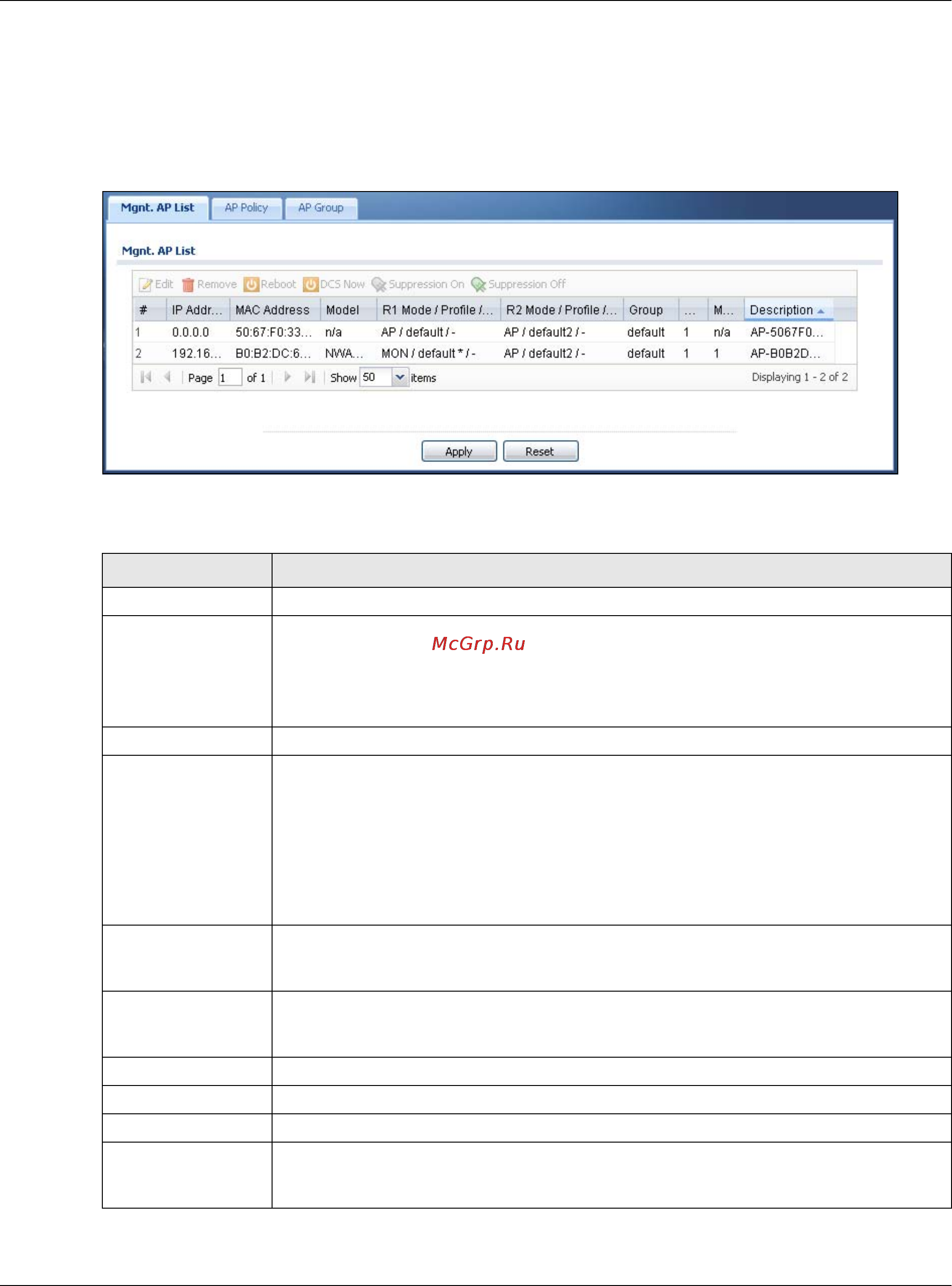

Figure 46 Configuration > Wireless > AP Management
Each field is described in the following table.
Table 48 Configuration > Wireless > AP Management
LABEL DESCRIPTION
Edit Select an AP and click this button to edit its properties.
Remove Select one or multiple APs and click this button to remove the AP(s) from the list.
Note: If in the Configuration > Wireless > Controller screen you set the Registration
Type to Always Accept, then as soon as you remove an AP from this list it
reconnects.
Reboot Select one or multiple APs and click this button to force the AP(s) to restart.
DCS Now Select one or multiple APs and click this button to use DCS (Dynamic Channel
Selection) to allow the AP to automatically find a less-used channel in an environment
where there are many APs and there may be interference.
Note: You should have enabled DCS in the applied AP radio profile berfore the APs can
use DCS.
Note: DCS is not supported on the radio which is working in repeater AP mode.
Suppression On Select an AP and click this button to enable the AP’s LED suppression mode. All the
LEDs of the AP will turn off after the AP is ready. This button is not available if the
selected AP doesn’t support suppression mode.
Suppression Off Select an AP and click this button to disable the AP’s LED suppression mode. The AP
LEDs stay lit after the AP is ready. This button is not available if the selected AP doesn’t
support suppression mode.
# This field is a sequential value, and it is not associated with any interface.
IP Address This field displays the IP address of the AP.
MAC Address This field displays the MAC address of the AP.
Model This field displays the AP’s hardware model information. It displays N/A (not
applicable) only when the AP disconnects from the NXC and the information is
unavailable as a result.
