Chapter 18 AP Profile
NXC Series User’s Guide
230

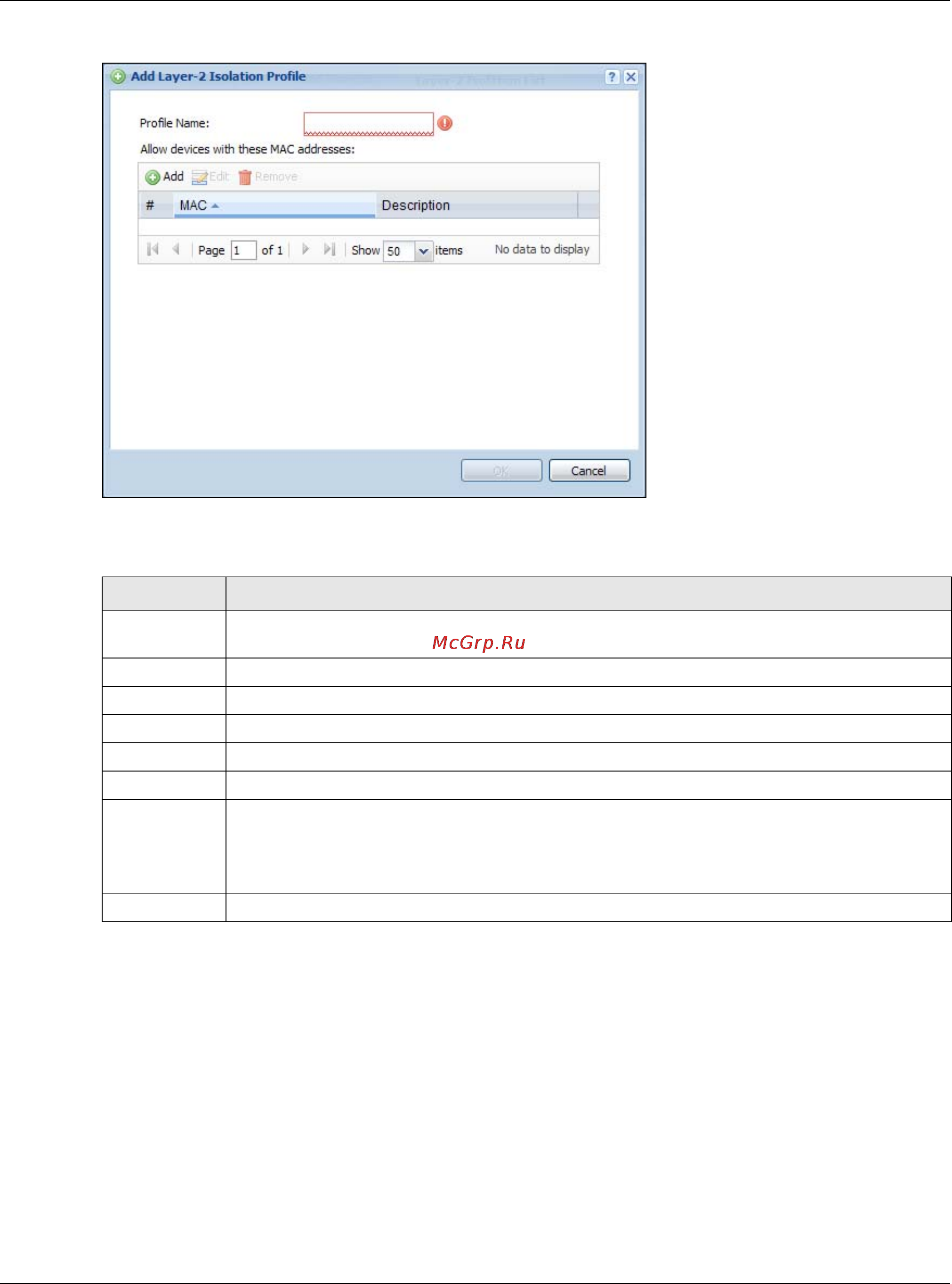

Figure 130 SSID > MAC Filter List > Add/Edit Layer-2 Isolation Profile
The following table describes the labels in this screen.
Table 118 SSID > MAC Filter List > Add/Edit Layer-2 Isolation Profile
LABEL DESCRIPTION
Profile Name Enter up to 31 alphanumeric characters for the profile name. This name is only visible in the
Web Configurator and is only for management purposes. Underscores are allowed.
Add Click this to add a MAC address to the profile’s list.
Edit Click this to edit the selected MAC address in the profile’s list.
Remove Click this to remove the selected MAC address from the profile’s list.
# This field is a sequential value, and it is not associated with a specific profile.
MAC This field specifies a MAC address associated with this profile.
Description This field displays a description for the MAC address associated with this profile. You can click
the description to make it editable. Enter up to 60 characters, spaces and underscores
allowed.
OK Click OK to save your changes back to the NXC.
Cancel Click Cancel to exit this screen without saving your changes.
