Chapter 24 AAA Server
NXC Series User’s Guide
262
24.3 RADIUS
Use the RADIUS screen to manage the list of RADIUS servers the NXC can use in authenticating
users. Click Configuration > Object > AAA Server > RADIUS to display the RADIUS screen.

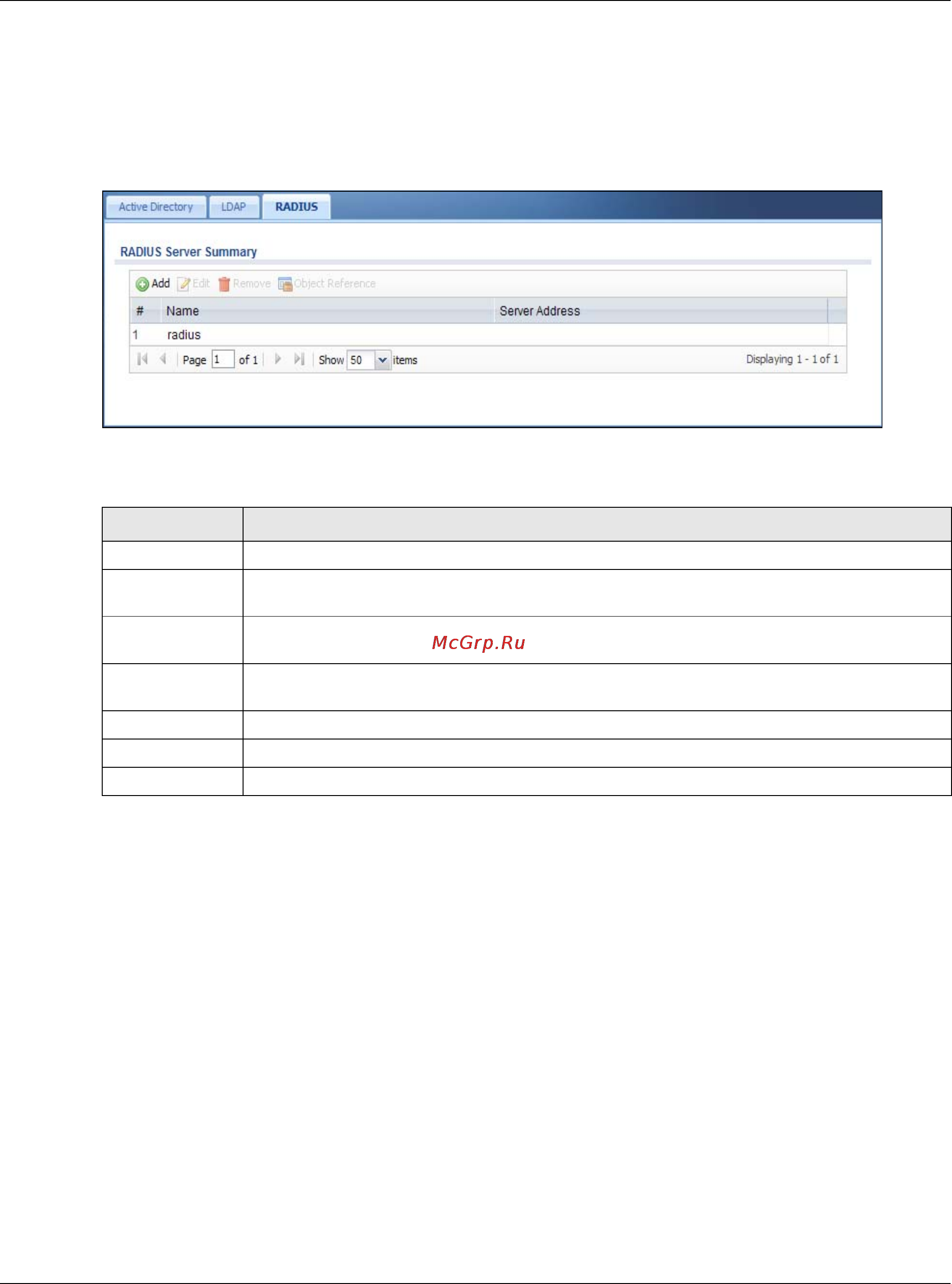

Figure 153 Configuration > Object > AAA Server > RADIUS
The following table describes the labels in this screen.
24.3.1 Add/Edit RADIUS
Click Configuration > Object > AAA Server > RADIUS to display the RADIUS screen. Click the
Add icon or an Edit icon to display the following screen. Use this screen to create a new entry or
edit an existing one.
Table 137 Configuration > Object > AAA Server > RADIUS
LABEL DESCRIPTION
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The NXC confirms you want to remove it
before doing so.
Object
Reference
Select an entry and click Object Reference to open a screen that shows which settings
use the entry.
# This field displays the index number.
Name This is the name of the RADIUS server entry.
Server Address This is the address of the AD or LDAP server.
