Chapter 21 Addresses
NXC Series User’s Guide
241

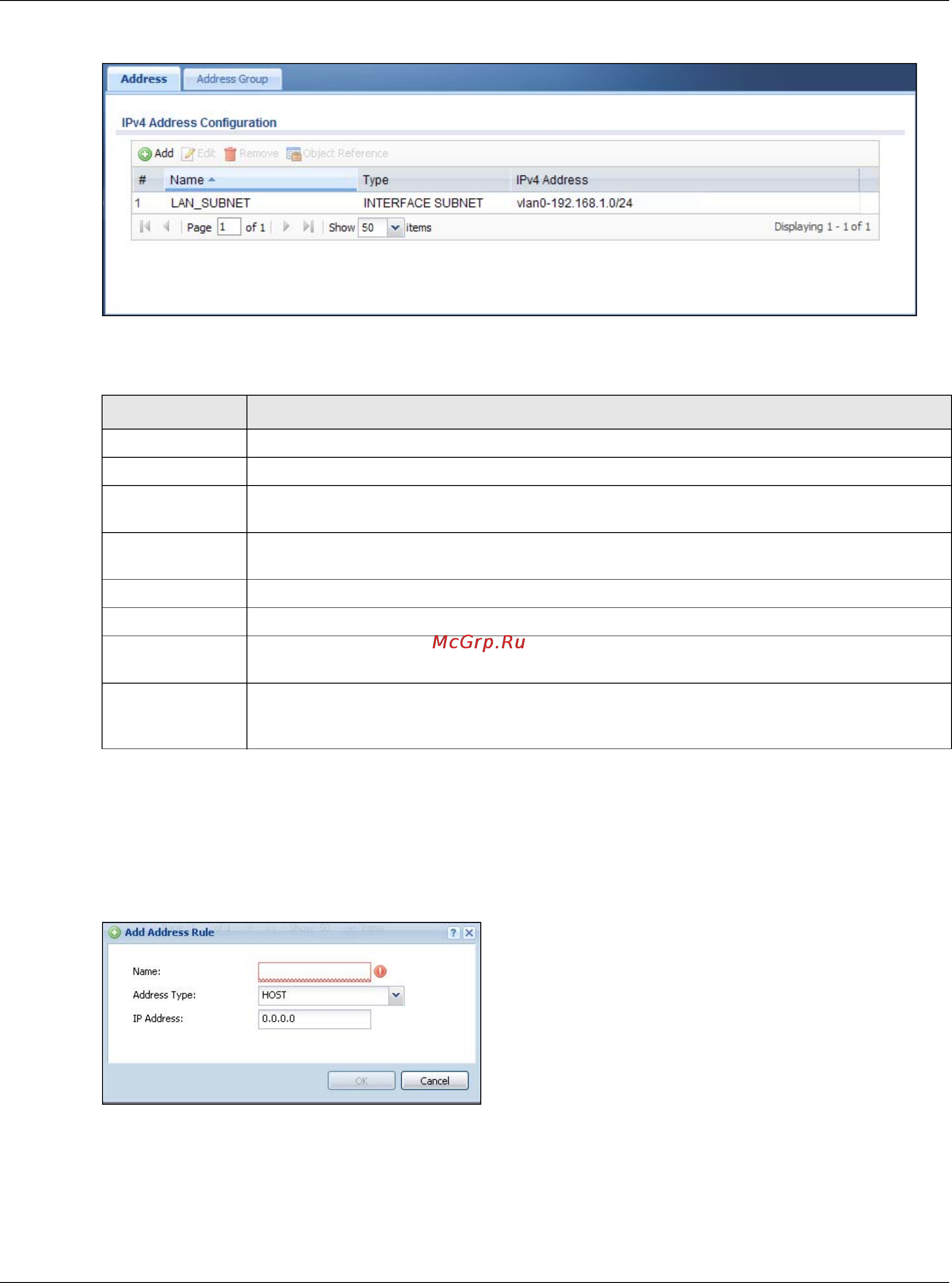

Figure 136 Configuration > Object > Address > Address Summary
The following table describes the labels in this screen.
21.2.1 Add/Edit Address
The Add/Edit Address screen allows you to create a new address or edit an existing one. To
access this screen, go to the Address screen, and click either the Add icon or an Edit icon.
Figure 137 Configuration > Object > Address > Address > Add/Edit
Table 123 Configuration > Object > Address > Address Summary
LABEL DESCRIPTION
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The NXC confirms you want to remove it
before doing so.
Object Reference Select an entry and click Object Reference to open a screen that shows which settings
use the entry.
# This field is a sequential value, and it is not associated with a specific address.
Name This field displays the configured name of each address object.
Type This field displays the type of each address object. “INTERFACE” means the object uses
the settings of one of the NXC’s interfaces.
IPv4 Address This field displays the IP addresses represented by each address object. If the object’s
settings are based on one of the NXC’s interfaces, the name of the interface displays first
followed by the object’s current address settings.
