Chapter 17 User/Group
NXC Series User’s Guide
210

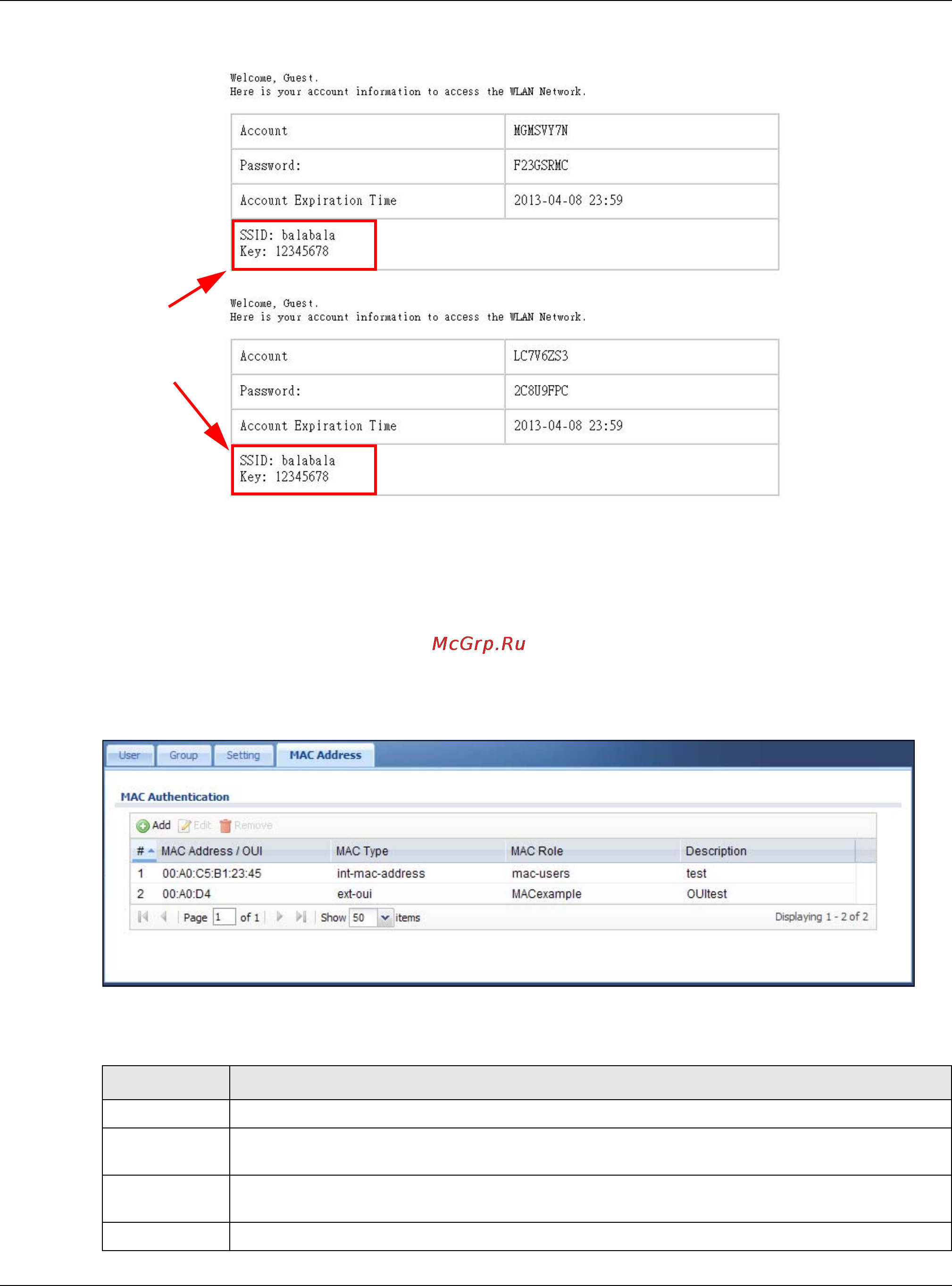

Figure 118 Preview of Dynamic Guest Account Printout
17.5 MAC Address
The MAC Address screen maps wireless client MAC addresses to MAC roles (MAC address user
accounts). See MAC Address Accounts on page 196 for more on MAC address user accounts and
MAC roles. Click Configuration > Object > User/Group > MAC Address to open this screen.
Figure 119 Configuration > Object > User/Group > MAC Address
The following table describes the labels in this screen.
Dynamic
Guest
Note
Table 107 Configuration > Object > User/Group > MAC Address
LABEL DESCRIPTION
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The NXC confirms you want to remove it
before doing so.
# This field is a sequential value, and it is not associated with a specific entry.
