Chapter 5 Monitor
NXC Series User’s Guide
81
The following table describes the labels in this screen.
5.13 ZyMesh Link Info
Use this screen to view the ZyMesh/WDS traffic statistics between the managed APs. Click Monitor
> Wireless > ZyMesh > ZyMesh Link Info to access this screen.

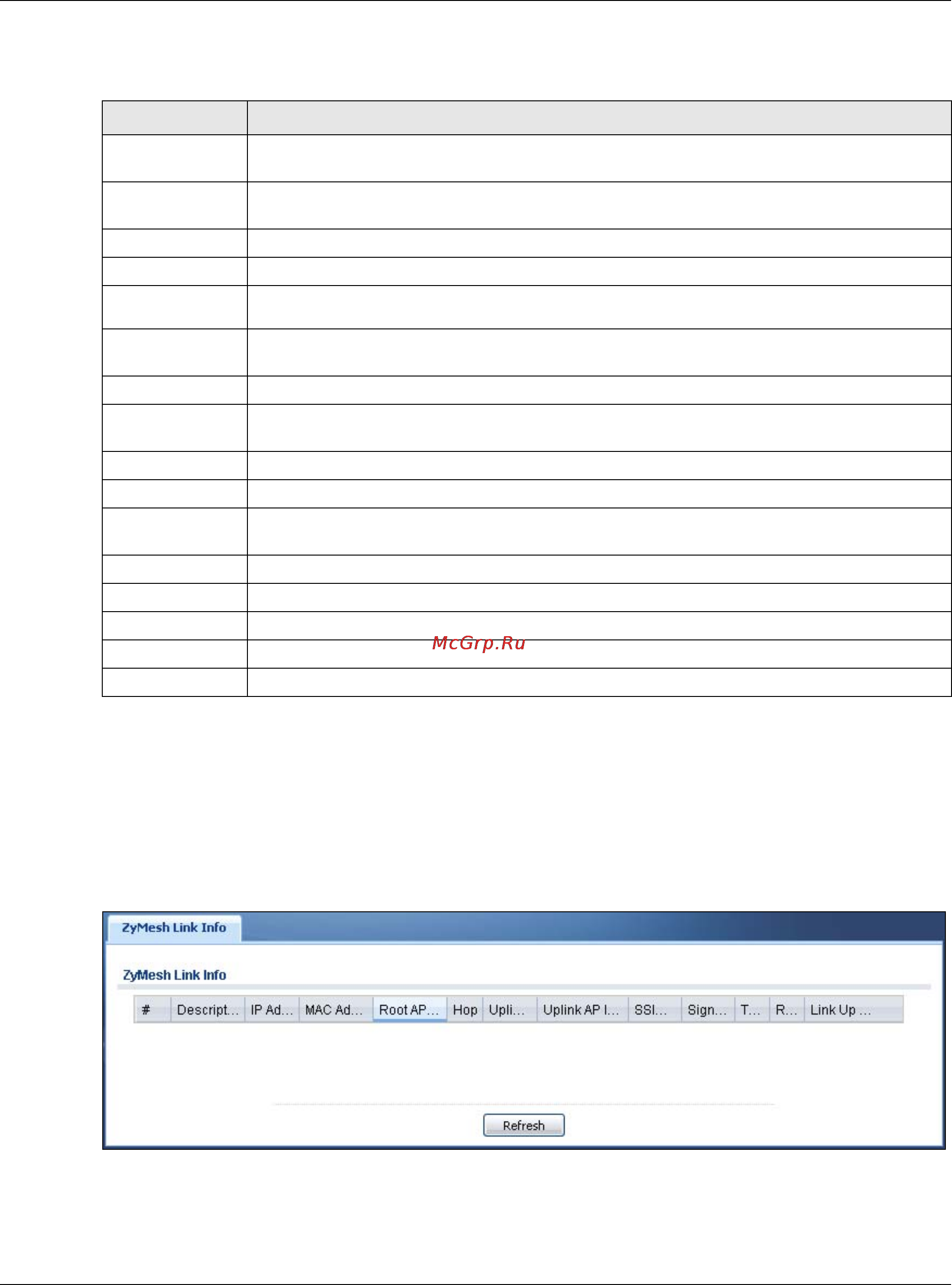

Figure 38 Monitor > Wireless > ZyMesh > ZyMesh Link Info
Table 40 Monitor > Wireless > AP Info > Radio List > AP Mode Radio Information
LABEL DESCRIPTION
MBSSID Detail This list shows information about the SSID(s) that is associated with the radio over the
preceding 24 hours.
# This is the items sequential number in the list. It has no bearing on the actual data in this
list.
SSID Name This displays an SSID associated with this radio. There can be up to eight maximum.
BSSID This displays the MAC address associated with the SSID.
Security
Mode
This displays the security mode in which the SSID is operating.
Forwarding
Mode
This field indicates the forwarding mode (Local Bridge or Tunnel) associated with the
SSID profile.
VLAN This displays the VLAN ID associated with the SSID.
Traffic Statistics This graph displays the overall traffic information about the radio over the preceding 24
hours.
y-axis This axis represents the amount of data moved across this radio in megabytes per second.
x-axis This axis represents the amount of time over which the data moved across this radio.
Station Count This graph displays information about all the wireless clients that have connected to the
radio over the preceding 24 hours.
y-axis The y-axis represents the number of connected wireless clients.
x-axis The x-axis shows the time over which a wireless client was connected.
Last Update This field displays the date and time the information in the window was last updated.
OK Click this to close this window.
Cancel Click this to close this window.
