Chapter 3 The Web Configurator
NXC Series User’s Guide
37
3.3.2 Navigation Panel
Use the menu items on the navigation panel to open screens to configure NXC features. Click the
arrow in the middle of the right edge of the navigation panel to hide the navigation panel menus or
drag it to resize them. The following sections introduce the NXC’s navigation panel menus and their
screens.

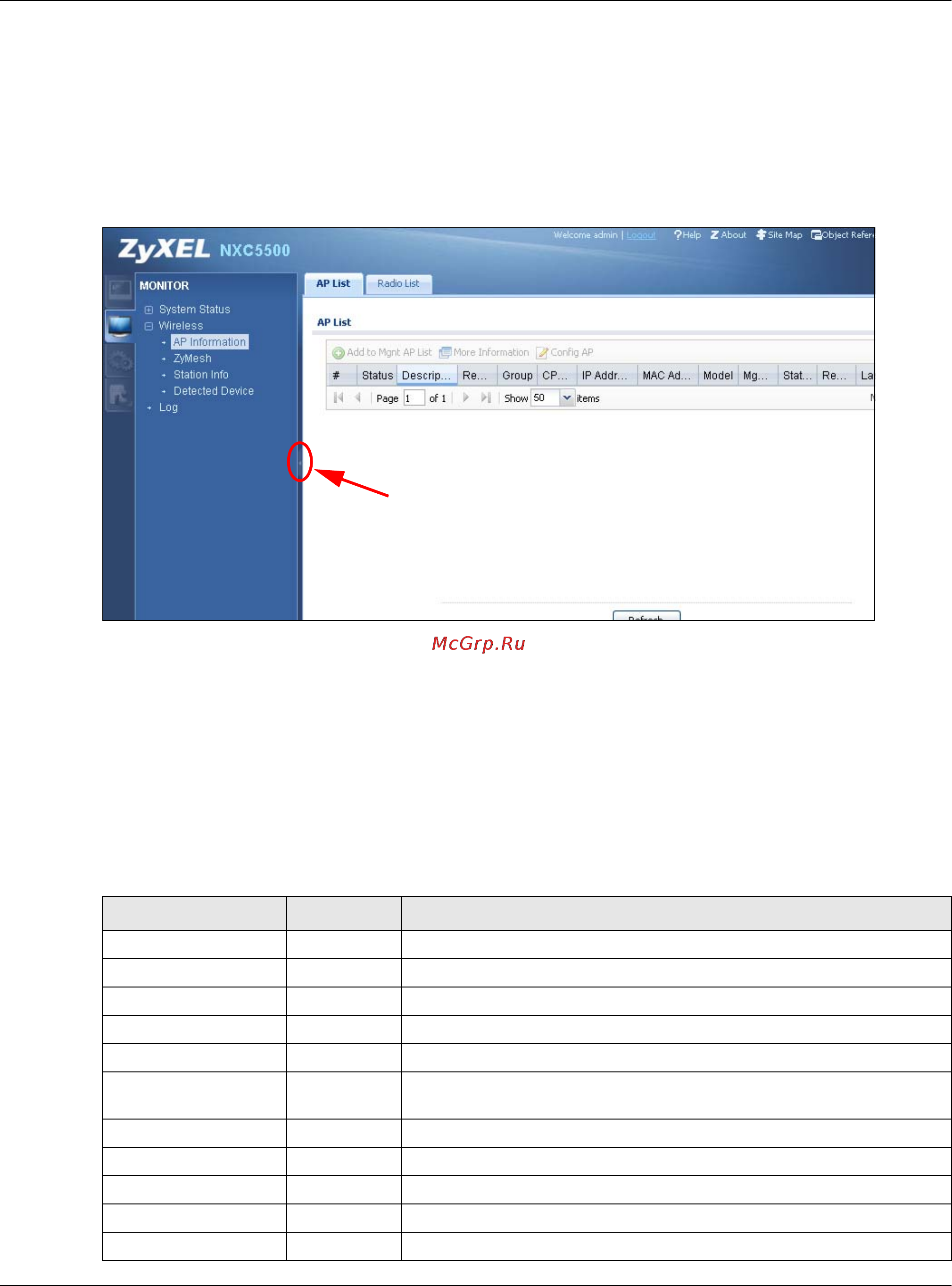

Figure 15 Navigation Panel
3.3.2.1 Dashboard
The dashboard displays general device information, system status, system resource usage, licensed
service status, and interface status in widgets that you can re-arrange to suit your needs.
For details on the Dashboard’s features, see Chapter 4 on page 46.
3.3.2.2 Monitor Menu
The monitor menu screens display status and statistics information.
Table 13 Monitor Menu Screens Summary
FOLDER OR LINK TAB FUNCTION
System Status
Port Statistics Display packet statistics for each physical port.
Interface Status Display general interface information and packet statistics.
Traffic Statistics Collect and display traffic statistics.
Session Monitor Display the status of all current sessions.
IP/MAC Binding List the devices that have received an IP address from NXC interfaces
using IP/MAC binding.
Login Users List the users currently logged into the NXC.
Dynamic Guest List the dynamic guest accounts in the NXC’s local database.
USB Storage Display details about a USB device connected to the NXC.
Wireless
AP Information AP List Display information about the connected APs.
