Chapter 5 Monitor
NXC Series User’s Guide
70
5.10 USB Storage
This screen displays information about a connected USB storage device. Click Monitor > System
Status > USB Storage to display this screen.

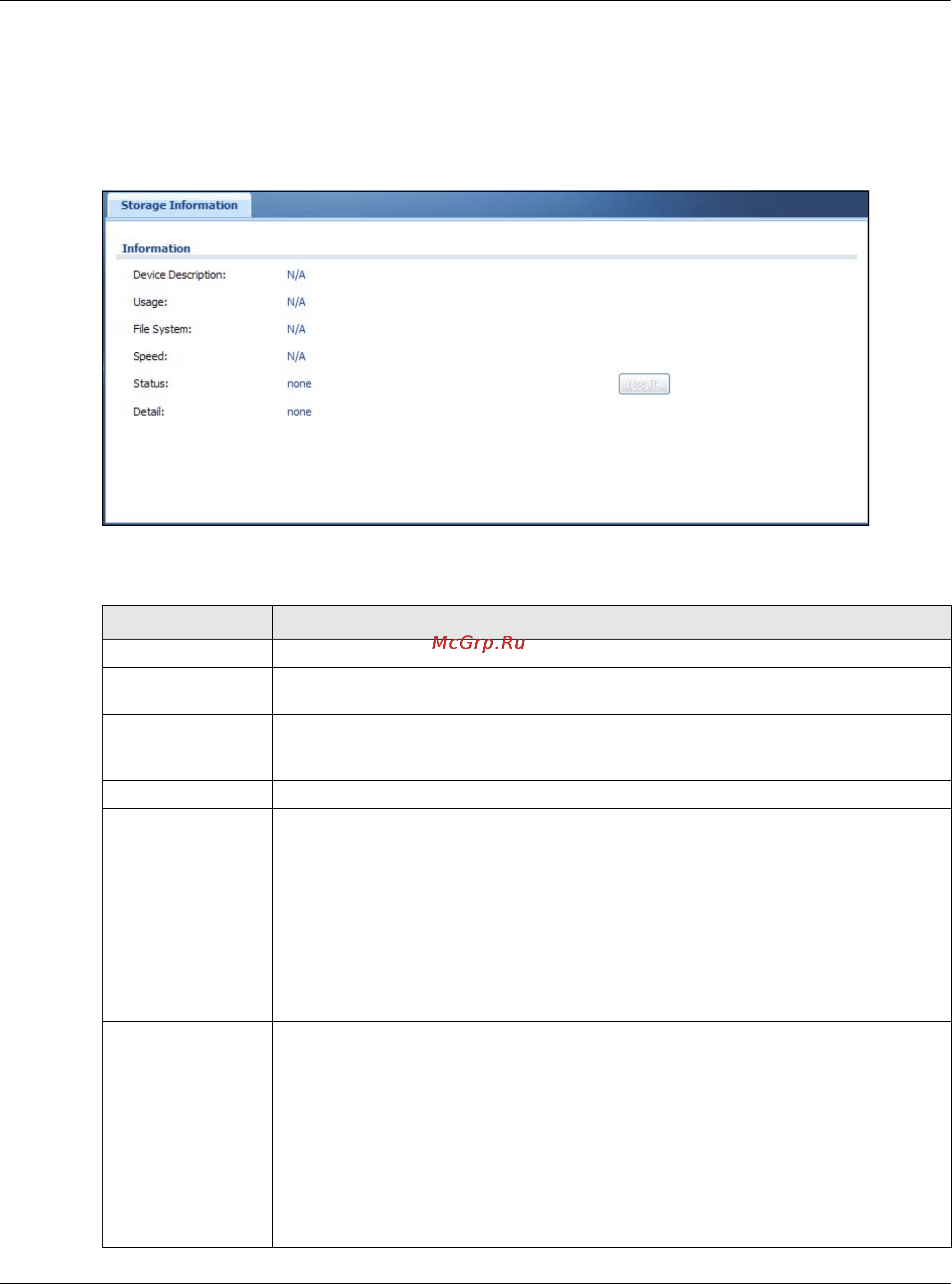

Figure 32 Monitor > System Status > USB Storage
The following table describes the labels in this screen.
Table 33 Monitor > System Status > USB Storage
LABEL DESCRIPTION
Device description This is a basic description of the type of USB device.
Usage This field displays how much of the USB storage device’s capacity is currently being
used out of its total capacity and what percentage that makes.
File System This field displays what file system the USB storage device is formatted with. This field
displays Unknown if the file system of the USB storage device is not supported by the
NXC, such as NTFS.
Speed This field displays the connection speed the USB storage device supports.
Status Ready - you can have the NXC use the USB storage device.
Click Remove Now to stop the NXC from using the USB storage device so you can
remove it.
Unused - the connected USB storage device was manually unmounted by using the
Remove Now button or for some reason the NXC cannot mount it.
Click Use It to have the NXC mount a connected USB storage device. This button is
grayed out if the file system is not supported (unknown) by the NXC.
none - no USB storage device is connected.
Detail This field displays any other information the NXC retrieves from the USB storage
device.
Deactivated - the use of a USB storage device is disabled (turned off) on the NXC.
OutofSpace - the available disk space is less than the disk space full threshold (see
Section 28.3 on page 289 for how to configure this threshold).
Mounting - the NXC is mounting the USB storage device.
Removing - the NXC is unmounting the USB storage device.
none - the USB device is operating normally or not connected.
