Chapter 4 Dashboard
NXC Series User’s Guide
54
The following table describes the labels in this screen.
4.2.5 Number of Login Users
Use this screen to look at a list of the users currently logged into the NXC. To access this screen,
click the dashboard’s Number of Login Users icon.

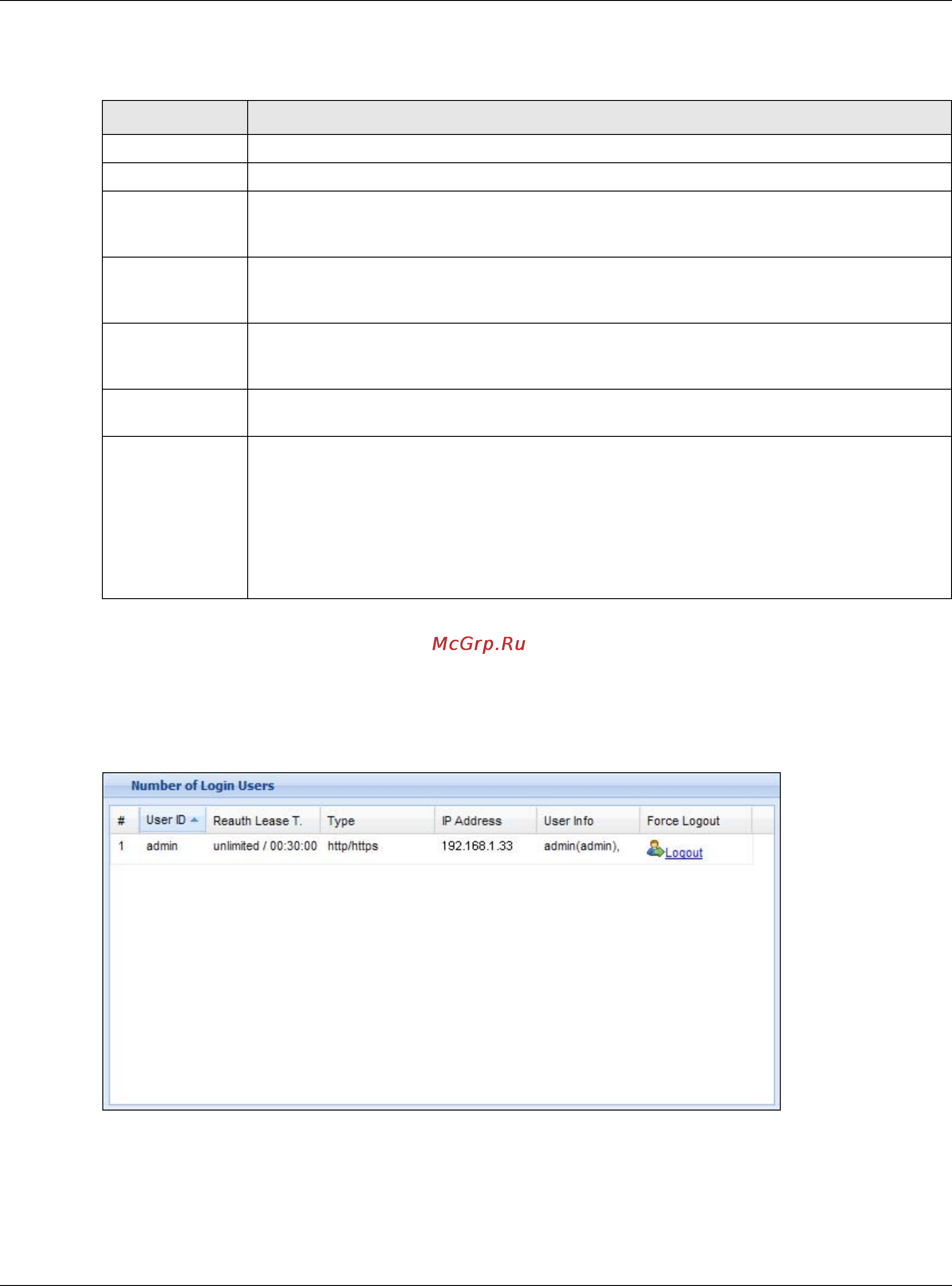

Figure 23 Dashboard > Number of Login Users
Table 22 Dashboard > DHCP Table
LABEL DESCRIPTION
# This field is a sequential value, and it is not associated with a specific entry.
Interface This field identifies the interface that assigned an IP address to a DHCP client.
IP Address This field displays the IP address currently assigned to a DHCP client or reserved for a
specific MAC address. Click the column’s heading cell to sort the table entries by IP
address. Click the heading cell again to reverse the sort order.
Host Name This field displays the name used to identify this device on the network (the computer
name). The NXC learns these from the DHCP client requests. “None” shows here for a
static DHCP entry.
MAC Address This field displays the MAC address to which the IP address is currently assigned or for
which the IP address is reserved. Click the column’s heading cell to sort the table entries
by MAC address. Click the heading cell again to reverse the sort order.
Description For a static DHCP entry, the host name or the description you configured shows here. This
field is blank for dynamic DHCP entries.
Reserve If this field is selected, this entry is a static DHCP entry. The IP address is reserved for the
MAC address.
If this field is clear, this entry is a dynamic DHCP entry. The IP address is assigned to a
DHCP client.
To create a static DHCP entry using an existing dynamic DHCP entry, select this field.
To remove a static DHCP entry, clear this field.
